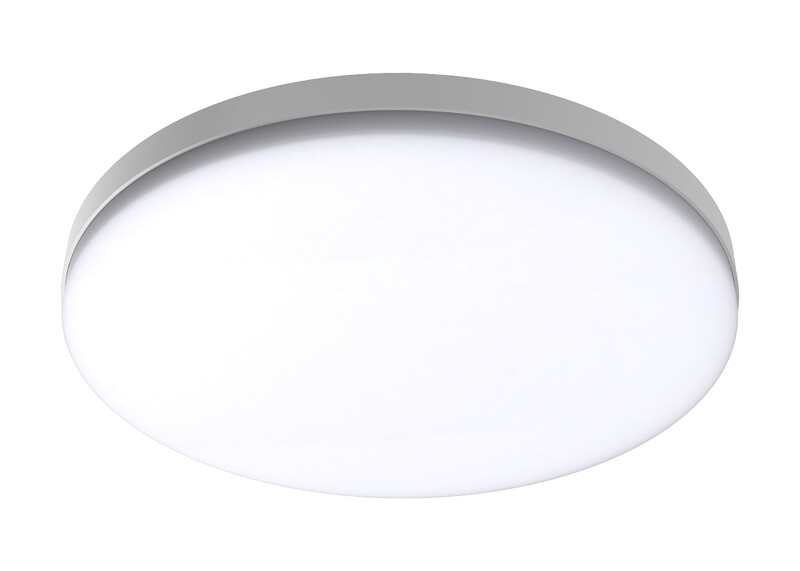

SURFACE MOUNTED LUMINAIRE ISA 400 4500lm FX RS DIM
Product code
4188439

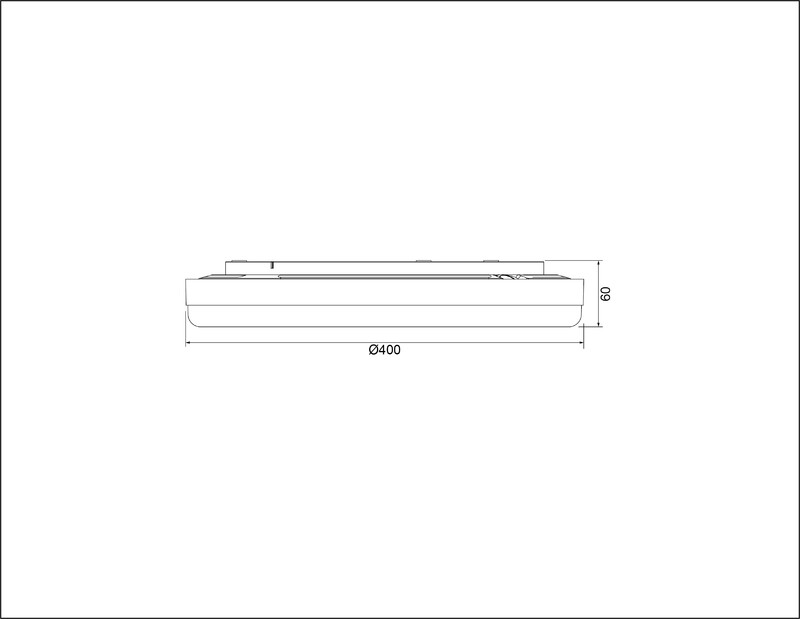

Isa is a stylish IP54 ceiling light with a 400 mm diameter.
It is suitable for corridors, stairwells, and social spaces.
In addition to downward light, the luminaire features a small upward light that creates a sense of space.
With the optional microprism (UGR<19) and decorative ring (4188443), it is also suitable for office use.
Isa can be selected with one of the following control options:
DIM (= phase cut), RS DIM, or wireless Bluetooth-based BT RS.
The appropriate power and color temperature can be chosen during installation.

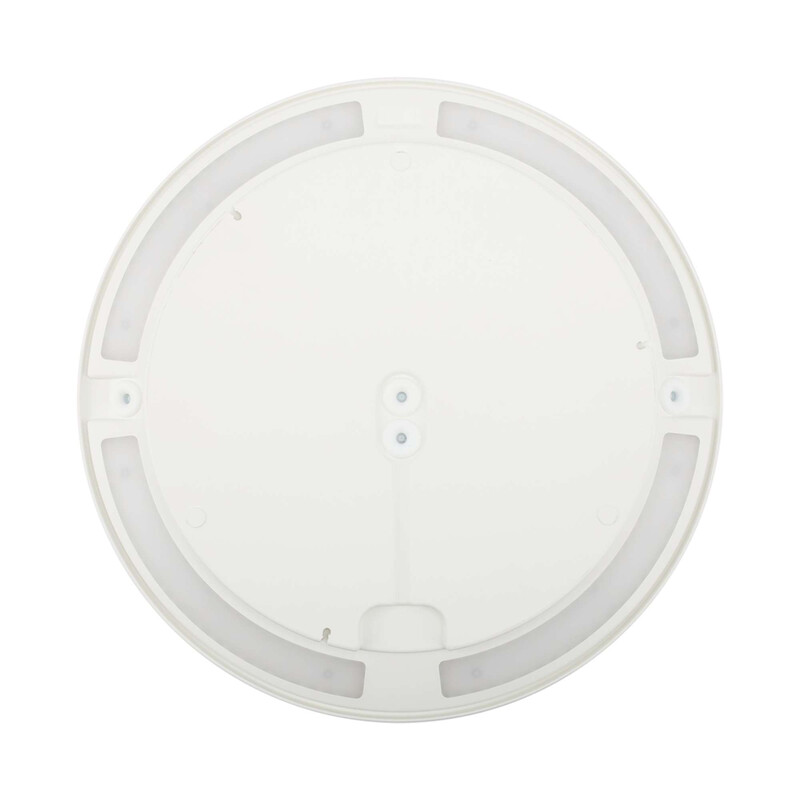

Isa can be mounted directly to a wall or ceiling surface.
Optional accessories include a suspension cable set (1.5 m, 4188444) or an adjustable tube suspension (0.3–0.6 m, 4188445).
Power / luminous flux:
DIM:
24W/2600 lm, 27W/3000 lm, 30W/3400 lm, 32W/2600-4100 lm RS
DIM/BT RS:
2900-4500 lm
Color temperature options: 3000K and 4000K This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for built-in mountingno
Suitable for surface mountingyes
Lamp typeLED exchangeable
With light sourceyes
Suitable for number of light sources5
Housing materialPlastic
Housing colourWhite
Material coverPlastic, opal
Type of gridNone
Voltage typeAC
Nominal voltage220 - 240 V
Nominal current160 - 300 mA
Product codes
SAPDIS694
STK4188439
PLC4188439
GTIN/EAN7330139295576
Manufacturer part numberE7511172
Vendor material number4188439
Basic information
Package measurements (L x W x H)406 x 406 x 70 mm
Package volume11.539 l
Package weight1.55 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandEXAKTOR
VendorPROTON LIGHTING AB
Documents (5)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)20.15
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
