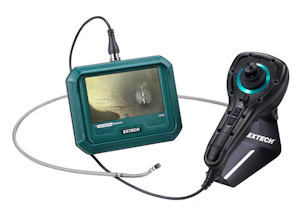

VIDEOSCOPE EXTECH HDV740 1M/6MM

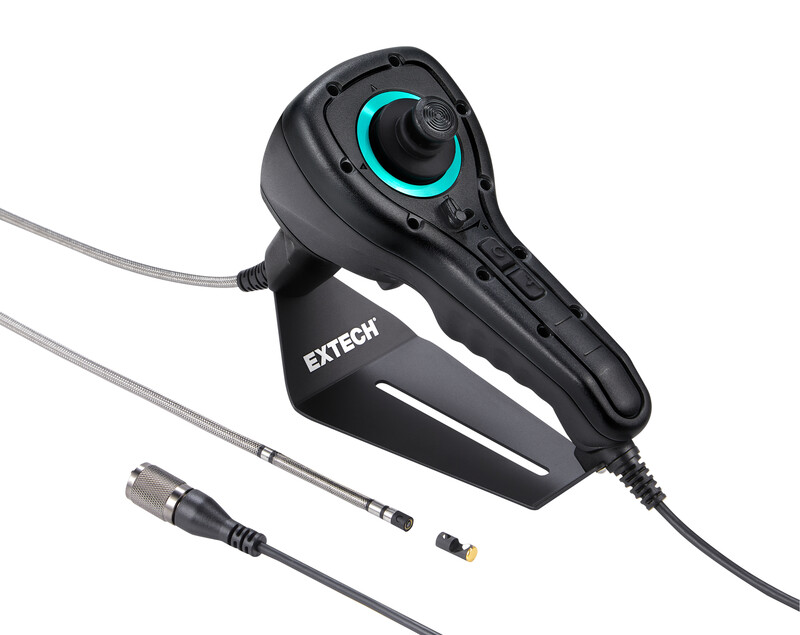

The Extech HDV740 is a versatile and lightweight video inspection system designed for professional use to safely inspect hard-to-reach areas. The HDV740 system's camera head control unit allows the camera head to be directed in four different directions, and the camera produces images with a resolution of 640 x 480. The viewing direction is forward, with a field of view of 87.1°, depth of field from 10 mm to infinity, a camera head diameter of 6 mm, and a length of 1 m. The system also includes a display unit.
The modular HDV700 series system is available with one or multiple waterproof (IP67) camera heads. The series includes eight different camera heads suitable for inspections of HVAC systems, pipelines, and structures. The selection includes camera heads with diameters ranging from 3.9 to 28 mm, some of which are 2- or 4-directional, and the HDV700 display unit features a 5-inch touchscreen. The HDV700 records images and video, and transferring them to a computer for reporting is fast and easy.
Features
- 5" Color touchscreen (800x480)
- Save images and videos
- Inspect hard-to-reach areas with a pivoting camera head
- Simultaneous viewing of live and recorded images enables comparison of live images with those captured during previous inspections
- Record audio and image comments
- Manage recorded data using session and image/video tagging features
- HDMI output enables transmission of the display unit's image to an external display
- Built-in 0–180° pivoting stand and built-in 1/4"-20 tripod mount
- IP67-rated camera heads can withstand submersion in 1 meter of water for 30 minutes

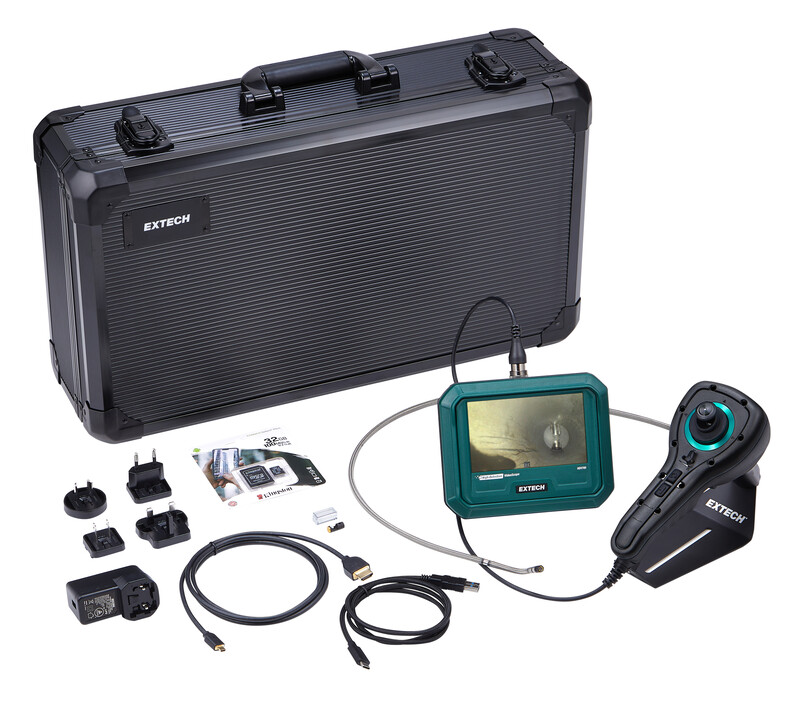

- Each system includes the HDV700 display unit, a 32 GB Micro SD card, a USB-A to USB-C cable, an HDMI-A to HDMI-D cable, and a built-in lithium battery.
