VOLTAGE PROBE EXTECH VOLTAGE DETECTOR

Product code
6714753

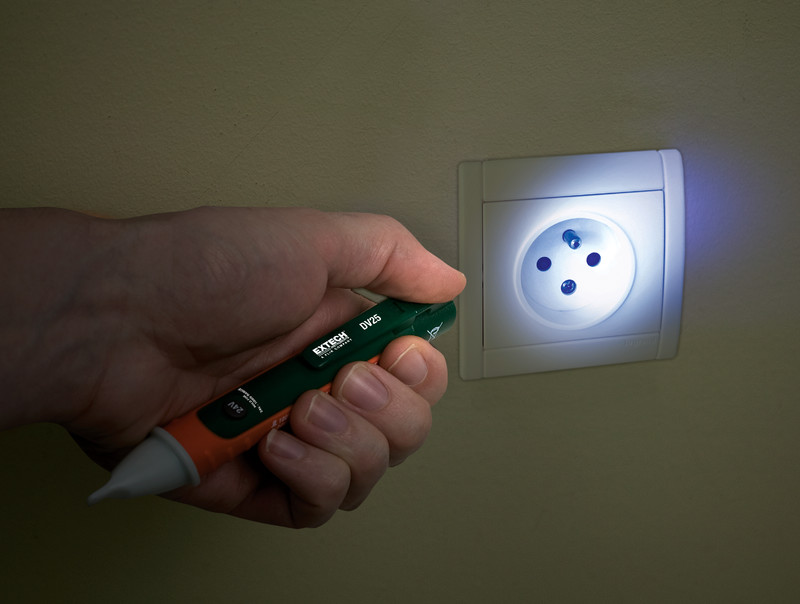

Extech DV25 is a two-zone NCV voltage detector with a flashlight that detects 24/100 - 1000 V AC voltage without touching the target and indicates voltage with an LED light and audible signal. Durable double-molded casing with CAT III 1000V / CAT IV 600V safety rating.
Features:
  • Non-contact AC voltage detection 24/100 - 1000 VAC
  • Frequency range 50/60Hz
  • Durable double-molded casing
  • Green LED light turns on when the voltage detector is powered on and ready for use
  • Red flashing LED light and audible signal when the voltage detector detects a live wire
  • Small tip designed to fit into outlets
  • Flashlight with On/Off switch
  • Includes 2 AAA batteries
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Voltage tester (EC000494)
Type of test1-pole
Voltage indicationLED
Voltage measuring range24 - 1000 V
Length159 mm
Blade length5 mm
Blade width5 mm
Internal base loadno
Load switchableno
Indication of direction of field rotationno
Continuity testno
Single pole phase indicationno
Contactless voltage detectionyes
Data holdno
Background lighting LC-indicationno
Probe tip protectionno

Product codes

SAPCHE599
HPACCHE599
STK6714753
PLC6714753
GTIN/EAN793950402252
Manufacturer part numberDV25
Vendor material numberDV25

Basic information

Package measurements (L x W x H)159 x 25 x 25 mm
Package volume0.099 l
Package weight0.05 kg
Base uniteach
Package units1
Package contents
UNSPSC41111917
BrandEXTECH
VendorINFRADEX OY
