COVER PC EK OGL24II-1 COVER

FIBOX EK polycarbonate covers with flange openings for various needs
EK enclosures are the foundation of FIBOX product development. They have been installed individually and in large-scale electrical cabinets worldwide. The FIBOX EK cover range includes gray, transparent bright, inspection window, and hinge lid models. In addition to these options, covers are available in varying depths. The same EK covers are also compatible with the lower parts of the SOLID product family. The SOLID product family lower parts have no flange openings.

EK enclosures are fully modular, allowing the range to cover extensive applications from individual modules to large enclosure panels. The flanged EK range offers a wide variety of sizes and depths, along with a broad selection of accessories.

EKx yy z – x = cover/lower part dimensions in mm, y = cover depth, z = G – Gray, T – Transparent clear

EKH = 190x190
EKJ = 280x190
EKM = 380x190
EKO = 280x280
EKP = 380x280
EKT = 560x280
EKU = 560x380
EKW = 760x560

Product:

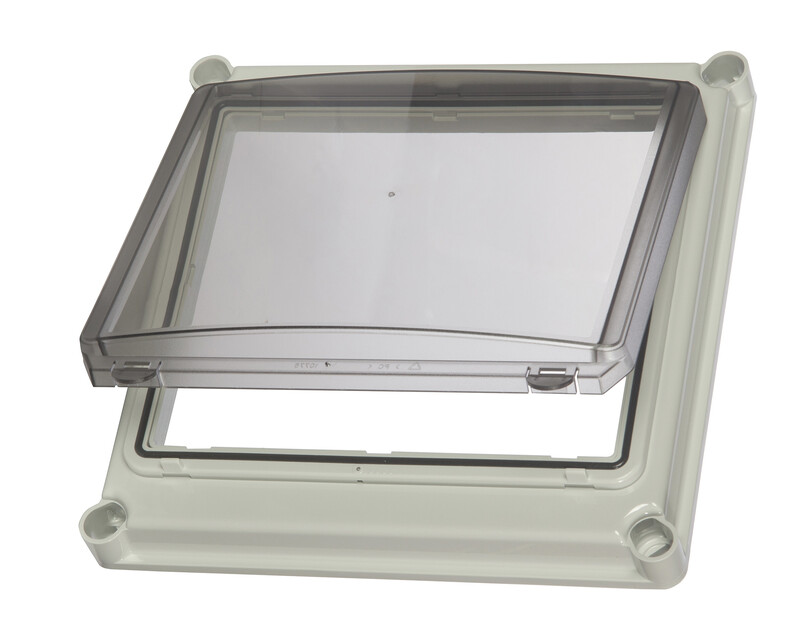

Product description: Cover with hinged inspection window

Dimensions:
Length (mm): 280
Width (mm): 280
Height (mm): 55

Materials:
Material: Polycarbonate
Seal material: Polyurethane

Temperature ranges:
Temperature °C (continuous): -40 … 80

Classes:
Standards EN 62208:2011, IEC 62208:2011
Ingress protection rating (EN 60529): IP65
Impact resistance (EN 62262): IK08
Flammability rating: UL 94 V0
Hot wire test (IEC 60695): 960C This product description is an automated translation of the original Finnish description.
