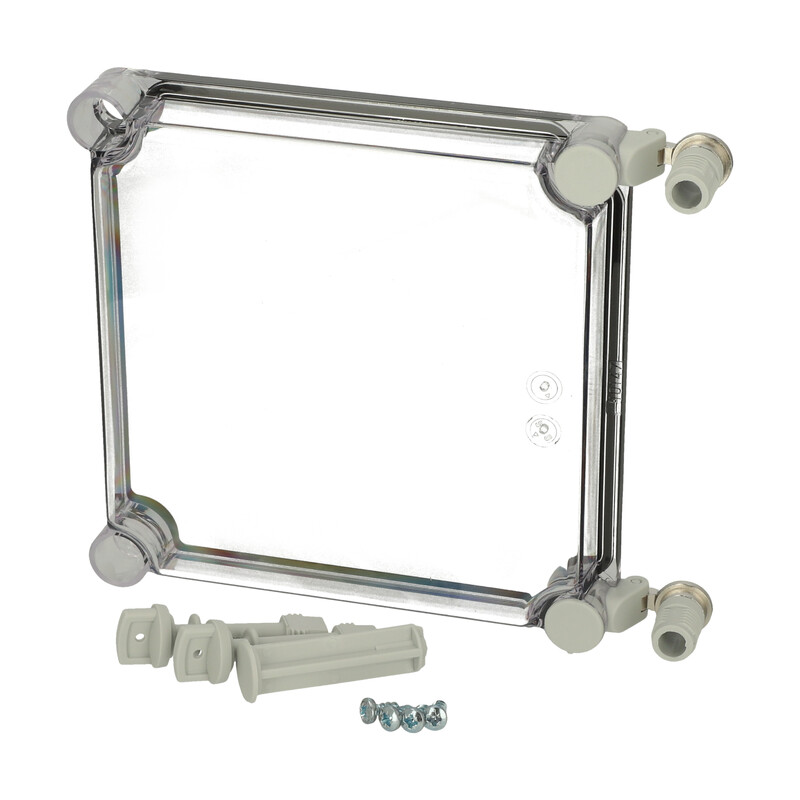

COVER PC EKH 30-T-2FSH

FIBOX EK polycarbonate covers with flange openings for various needs
EK enclosures are the foundation of FIBOX product development. They have been installed individually and in large-scale electrical cabinets worldwide. The FIBOX EK cover range includes gray, bright transparent, inspection-lid, and hinge-lid models. In addition to these options, covers are available in varying depths. The same EK covers are also compatible with the lower housings of the SOLID product family. The SOLID product family lower housings have no flange openings.

EK enclosures are fully modular, allowing the range to cover extensive applications from individual modules to large enclosure panels. The flanged EK range offers a wide variety of sizes and depths, along with a broad selection of accessories.

EKx yy z – x = cover/lower housing dimensions in mm, y = cover depth, z = G – Gray, T – Clear transparent

EKH = 190x190
EKJ = 280x190
EKM = 380x190
EKO = 280x280
EKP = 380x280
EKT = 560x280
EKU = 560x380
EKW = 760x560

Product:
Product description: Hinged cover PC
Additional info: Clear transparent cover
Packaging unit: 8
Unit: Pc

Dimensions:
Length (mm): 190
Width (mm): 190
Height (mm): 30

Materials:
Material: Polycarbonate
Cover color: Clear transparent
Gasket material: Polyurethane

Temperature ranges:
Temperature °C (long-term): -40 … 80

Classes:
Ingress protection rating (EN 60529): IP65
Electrical insulation: Protected insulated
UV resistance: UL 746C
Flammability rating: UL 94 V0
Hot wire test (IEC 60695): 960C This product description is an automated translation of the original Finnish description.
