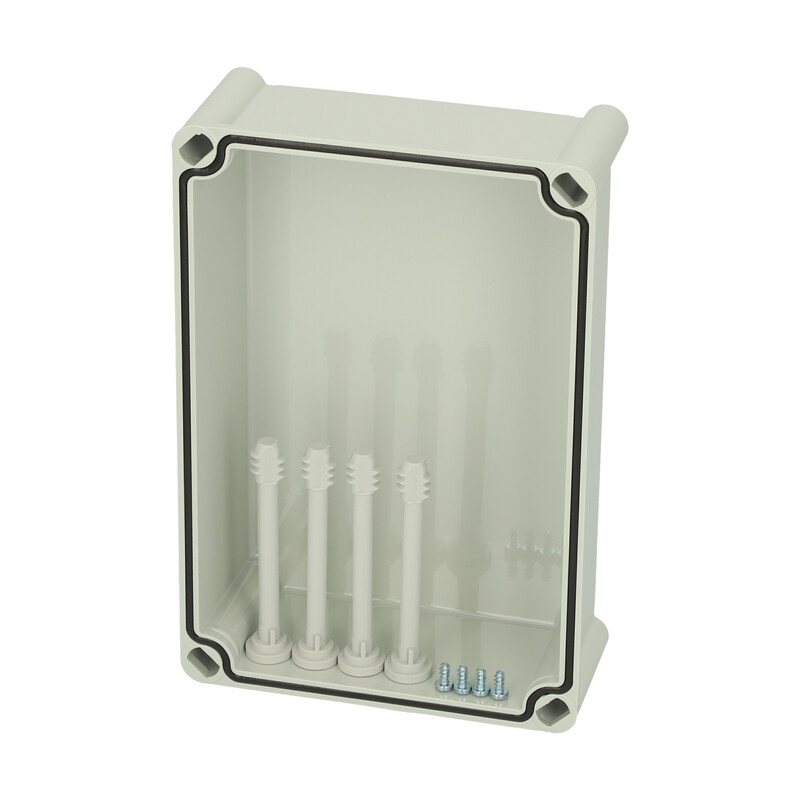

COVER PC EKJ-80G 80MMGREY

FIBOX EK polycarbonate covers with flange openings for various needs
EK enclosures are the foundation of FIBOX product development. They have been installed individually and as large electrical cabinets worldwide. The FIBOX EK cover range includes gray, transparent bright, inspection window, and hinge lid models. In addition to these options, covers are available in varying depths. The same EK covers are also compatible with the lower parts of the SOLID product family. The SOLID product family lower parts are without flange openings.

EK enclosures are fully modular, so the range covers extensive applications from individual modules to large enclosure panels. The flanged EK range offers a wide variety of sizes and depths, along with a broad selection of accessories.

EKx yy z – x = cover/lower part dimensions in mm, y = cover depth, z = G – Gray, T – Transparent clear

EKH = 190x190
EKJ = 280x190
EKM = 380x190
EKO = 280x280
EKP = 380x280
EKT = 560x280
EKU = 560x380
EKW = 760x560

Product:
Product description: Cover PC
Additional info: Gray
Packaging unit: 8
Unit: Pc

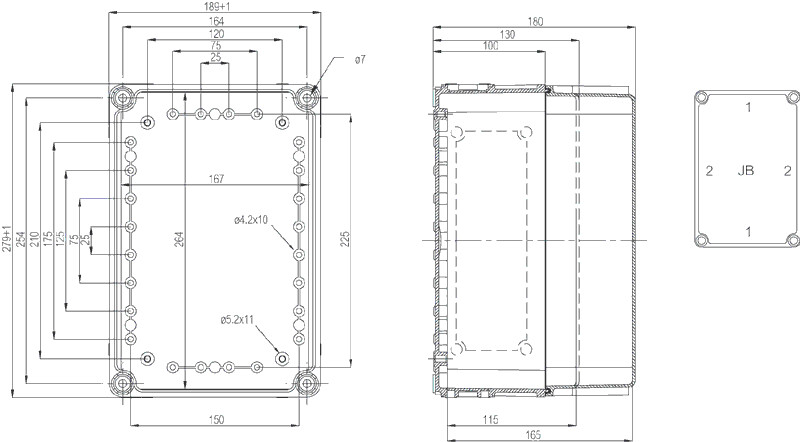

Dimensions:
Length (mm): 280
Width (mm): 190
Height (mm): 80

Materials:
Material: Polycarbonate
Cover color: RAL 7035 - light grey
Seal material: Polyurethane

Temperature ranges:
Temperature °C (long-term): -40 … 80

Classes:
Electrical insulation: Protected insulated
UV resistance: UL 746C
Flammability rating: UL 94 V0
Hot wire test (IEC 60695): 960C This product description is an automated translation of the original Finnish description.
