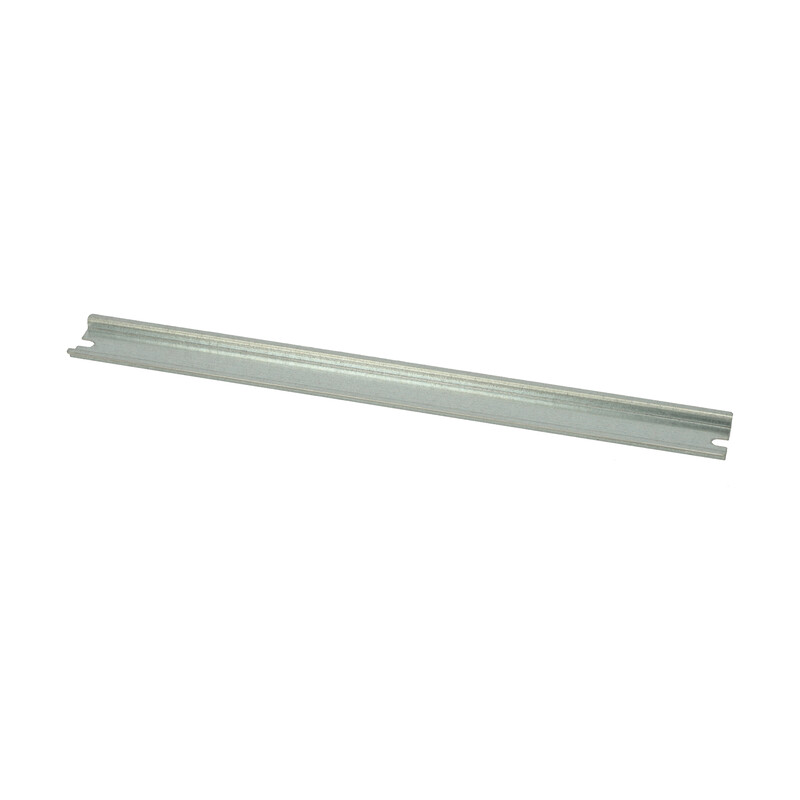

DIN RAIL EKV 32 DIN-35 35x335mm
Product code
3422603
FIBOX EK polycarbonate enclosures
EK enclosures are the foundation of FIBOX product development. They have been installed individually and in large-scale electrical centers worldwide.
EK enclosures are fully modular, covering a wide range of applications from individual modules to large enclosure panels. The range offers a large variety of sizes and depths, with a wide selection of accessories available.
Product:
Product description: DIN-35 mounting rail, for enclosures 380x190x130, 380x190x180, 380x280x130, 380x280x180, 380x280x230, 560x380x180,
Packaging unit: 4
Unit: Pc
Dimensions:
Length (mm): 335
Width (mm): 35
Height (mm): 7
Materials:
Material: Galvanized steel This product description is an automated translation of the original Finnish description.
EK enclosures are the foundation of FIBOX product development. They have been installed individually and in large-scale electrical centers worldwide.
EK enclosures are fully modular, covering a wide range of applications from individual modules to large enclosure panels. The range offers a large variety of sizes and depths, with a wide selection of accessories available.
Product:
Product description: DIN-35 mounting rail, for enclosures 380x190x130, 380x190x180, 380x280x130, 380x280x180, 380x280x230, 560x380x180,
Packaging unit: 4
Unit: Pc
Dimensions:
Length (mm): 335
Width (mm): 35
Height (mm): 7
Materials:
Material: Galvanized steel This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mounting rail for electrical/industrial control equipment (EC001285)
ModelDIN rail (top hat rail) 35/7.5 mm
MaterialSteel
Surface protectionGalvanic/electrolytic zinc plated
Punch shapeLong-slot
Drill hole distance centrically324 mm
Material thickness1 mm
Length335 mm
Height6 mm
Product codes
SAPANJ547
STK3422603
PLC3422603
GTIN/EAN6418074031983
Manufacturer part number3770649
Vendor material number3770649
Basic information
Package measurements (L x W x H)35 x 335 x 5 mm
Package volume0.059 l
Package weight0.114 kg
Base uniteach
Package units1 / 4
Package contents–
UNSPSC39121708
BrandFIBOX
VendorFIBOX OY
The country of origin stated by the supplierFinland
Documents (4)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.3737
GWP, uniteach
Source for GWP dataEandoX
