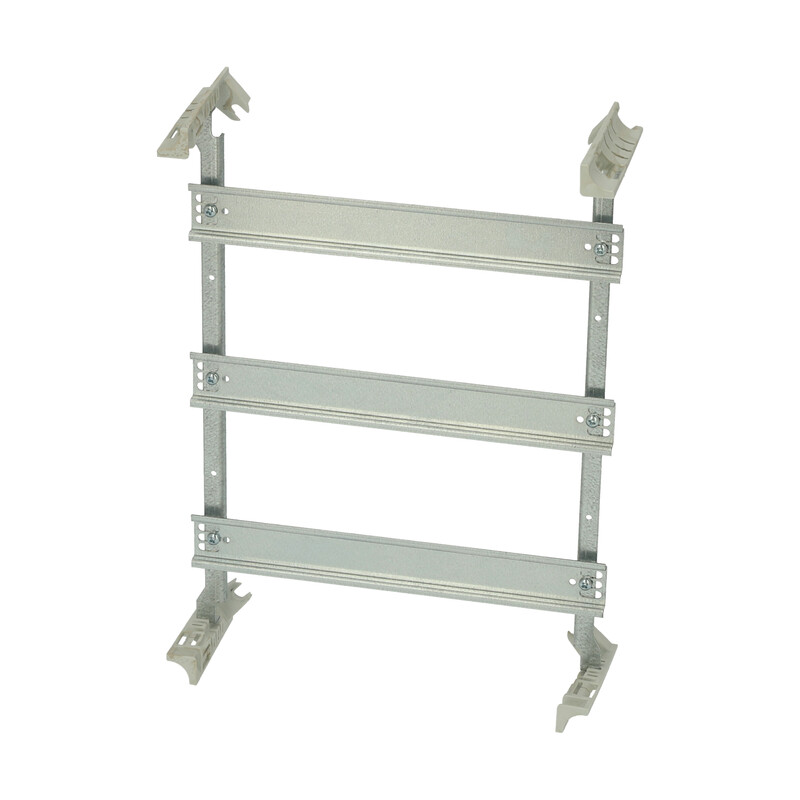

DIN RAIL FRAME EK DRS EKP 3828 2X19M
Product code
3424829
FIBOX EK polycarbonate enclosures
EK enclosures form the foundation of FIBOX product development. They have been installed individually and as large electrical distribution boards worldwide.
EK enclosures are fully modular, which is why the product range covers extensive application needs, from single modules to large enclosure panels. The range includes numerous size and depth variants, with a wide selection of accessories available.
Product:
Product description: DIN rail series
Additional information: 2 rows, 19 modules
Dimensions:
Length (mm): 364
Width (mm): 264
Height (mm): 90
Materials:
Material: Galvanized steel
Temperatures:
Temperature °C (long-term): -40 … 80 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Components for installation (enclosure/cabinet) (EC002620)
ModelDepth bracket
Suitable for enclosure building width380 mm
Suitable for enclosure building height280 mm
Width264 mm
Height364 mm
Depth90 mm
MaterialMetal
ColourOther
Product codes
SAPDPU061
STK3424829
PLC3424829
GTIN/EAN6418074320377
Manufacturer part number3770204
Vendor material number3424829
Basic information
Package measurements (L x W x H)382 x 228 x 132 mm
Package volume11.497 l
Package weight0.8 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121103
BrandFIBOX
VendorFIBOX OY
The country of origin stated by the supplierFinland
