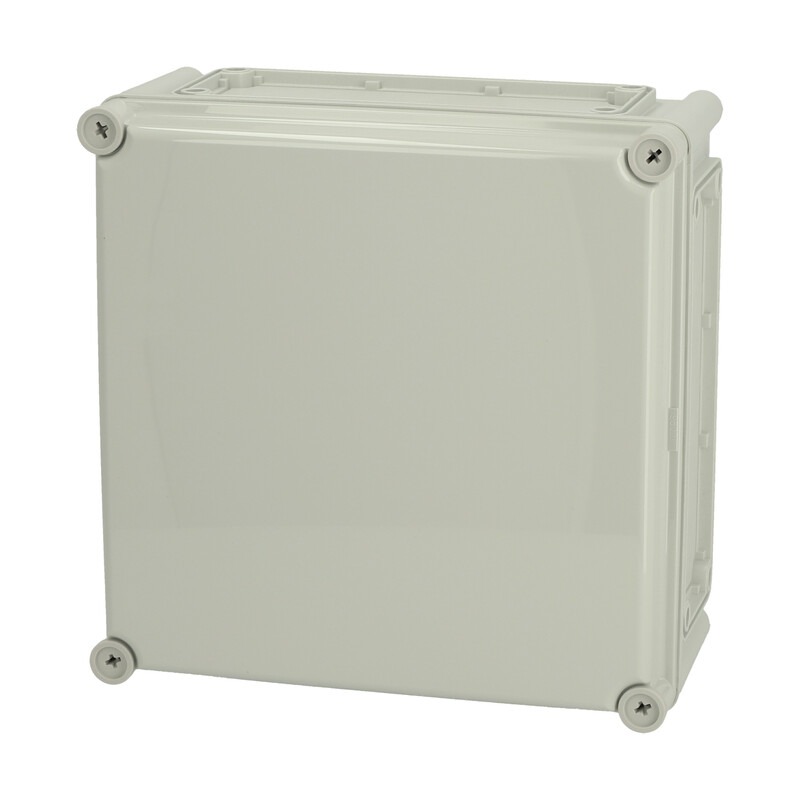

MOUNTING ENCLOSURE PC EK EKOE MPI 130 G ENCLOSURE

FIBOX EK polycarbonate enclosures
EK enclosures are the foundation of FIBOX product development. They have been installed individually and in large-scale electrical cabinets worldwide.
EK enclosures are fully modular, covering a wide range of applications from single modules to large enclosure panels. The range offers a large variety of sizes and depths, with a wide selection of accessories available.

Dimensions: 190*190*130 mm - 760*560*250 mm.
PC: IP 66/67 (IP 65 if using flanges, doors, and/or hinged lids);
IK 08/09; NEMA Type 1, 3, 3S, 4, 4X, 6, 6P, 12; UL 746C 5V; UL 508

EKwx yyy z =
w – enclosure height * width; H = 190x190, J = 280x190, M = 380x190, O = 280x280, P = 380x280, T = 560x280, U = 560x380, W = 760x560
x – flange size and number of flanges in the enclosure
y – enclosure depth dimension
z – G = grey lid, T = transparent lid

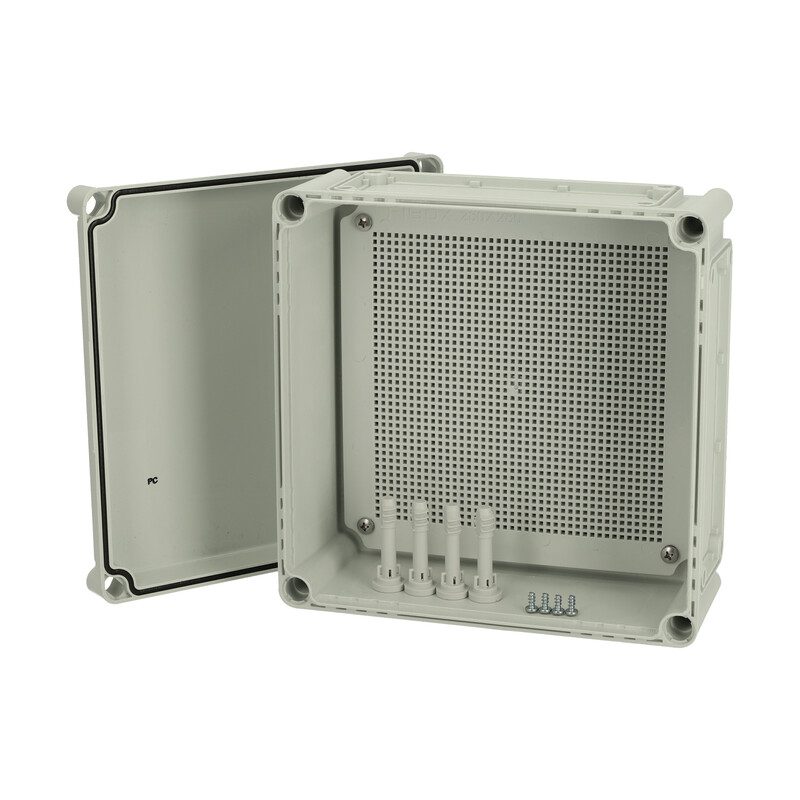

Includes: Base unit with flange opening, screws for mounting plate, lid with PUR seal and polyamide lid screws. Includes plastic mounting plate. IP66/67; IK08

Dimensions:
Length (mm): 280
Width (mm): 280
Height (mm): 130

Materials:
Material: Polycarbonate
Base color: RAL_7035
Lid color: RAL 7035 - light grey
Seal material: Polyurethane

Classifications:
Standards EN 62208:2011, IEC 62208:2011
Protection rating (EN 60529): IP66/67
Impact resistance (EN 62262): IK08
Electrical insulation: Protected insulation
Halogen-free (DIN/VDE 0472, part 815): Yes
UV resistance: UL 746C
Flammability rating: UL 94 V0
Hot wire test (IEC 60695): 960C This product description is an automated translation of the original Finnish description.
