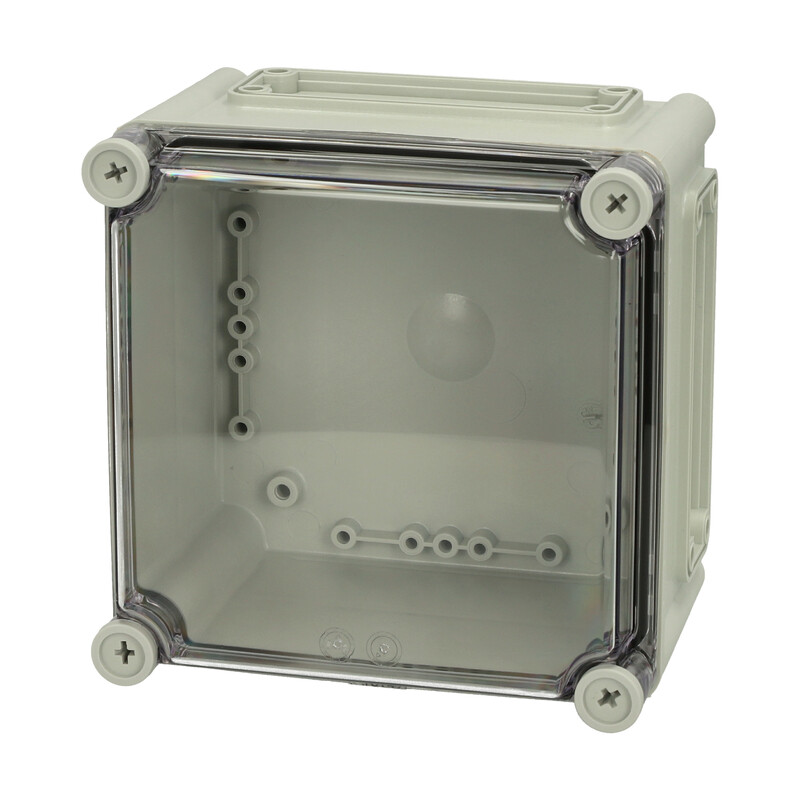

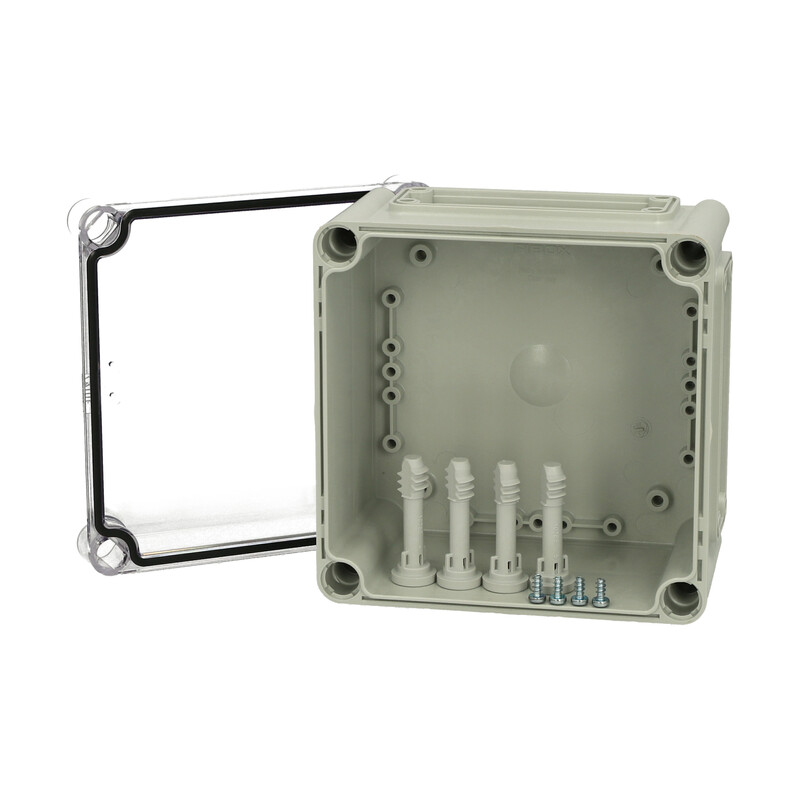

MOUNTING ENCLOSURE PC EKHA 130 T SET 190X190

FIBOX EK polycarbonate enclosures

EK enclosures are the foundation of FIBOX product development. They have been installed individually and in large-scale electrical centers worldwide. EK enclosures are fully modular, covering a wide range of applications from individual modules to large enclosure panels. The flanged EK range offers a large variety of sizes and depths, with a wide selection of accessories available.

Dimensions: 190*190*130 mm - 760*560*250 mm.
PC: IP 66/67 (IP 65 if using flanges, lids, and/or hinged covers);
IK 08/09; NEMA Type 1, 3, 3S, 4, 4X, 6, 6P, 12; UL 746C 5V; UL 508

EKwx yyy z =

w – enclosure height * width; H = 190x190, J = 280x190, M = 380x190, O = 280x280, P = 380x280, T = 560x280, U = 560x380, W = 760x560
x – flange size and number of flanges in the enclosure.
y – enclosure depth measurement
z – G = gray cover, T = transparent cover

Product:
Product description: Enclosure PC
Additional information: Transparent clear cover
Packaging unit: 4
Unit: Pc

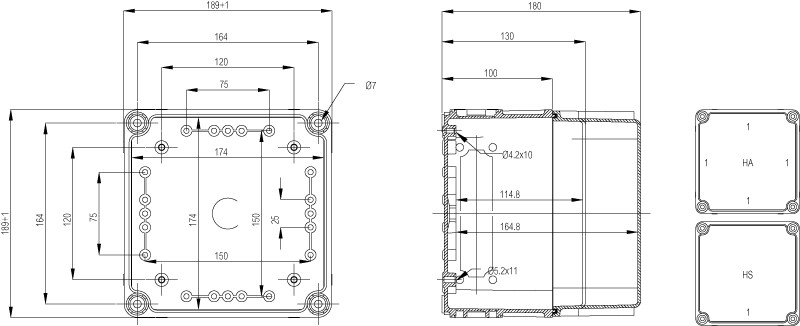

Dimensions:
Length (mm): 190
Width (mm): 190
Height (mm): 130

Materials:
Material: Polycarbonate
Base color: RAL_7035
Cover color: Clear transparent
Gasket material: Polyurethane

Temperatures:
Temperature °C (long-term): -40 … 80

Classes:
Standards EN 62208:2011, IEC 62208:2011
Protection class (EN 60529): IP66 IP67
Impact resistance (EN 62262): IK08
Electrical insulation: Protected insulated
Halogen-free (DIN/VDE 0472, part 815): Yes
UV resistance: UL 746C
Flame class: UL 94 V0
Hot wire test (IEC 60695): 960C

This product description is an automated translation of the original Finnish description.
