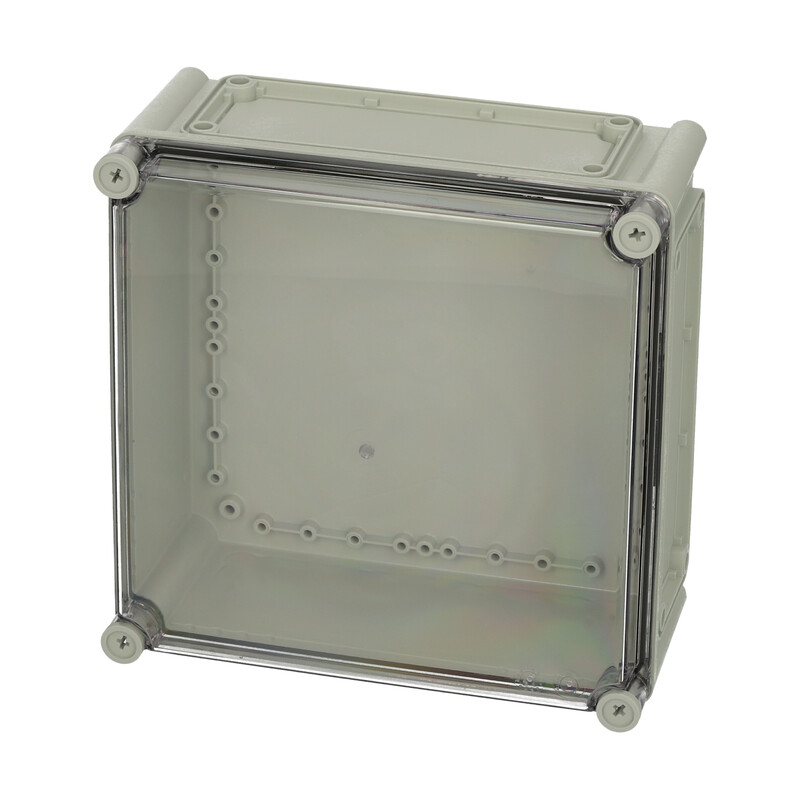

MOUNTING ENCLOSURE PC EKOE 130 T

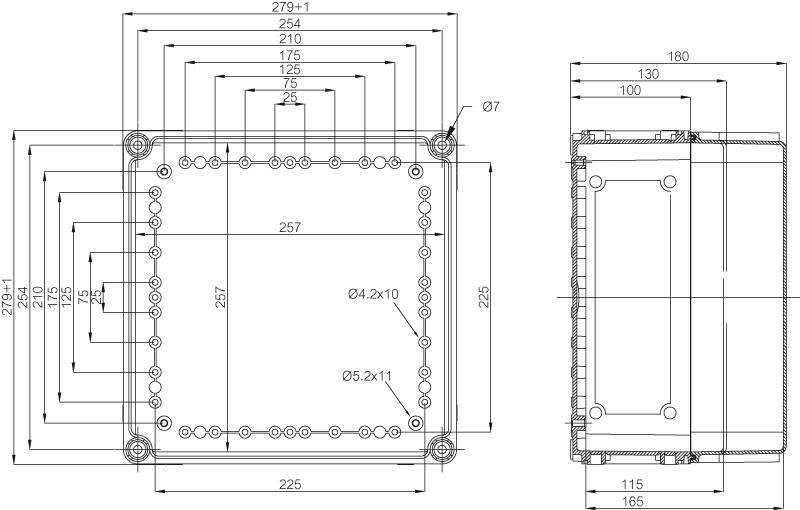

FIBOX EK polycarbonate enclosures EK enclosures are the foundation of FIBOX product development. They have been installed individually and in large-scale electrical cabinets worldwide. EK enclosures are fully modular, covering a wide range of applications from single modules to large enclosure panels. The flanged EK range offers a large variety of sizes and depths, with an extensive selection of accessories available. Dimensions: 190*190*130 mm - 760*560*250 mm. PC: IP 66/67 (IP 65 if using flanges, lids, and/or hinged covers); IK 08/09; NEMA Type 1, 3, 3S, 4, 4X, 6, 6P, 12; UL 746C 5V; UL 508 EKwx yyy z = w – enclosure height * width; H = 190x190, J = 280x190, M = 380x190, O = 280x280, P = 380x280, T = 560x280, U = 560x380, W = 760x560 x – flange size and number of flanges in the enclosure y – enclosure depth z – G = gray cover, T = transparent cover Product: Product description: Enclosure PC Additional information: Transparent clear cover Packaging unit: 4 Unit: Pc Dimensions: Length (mm): 280 Width (mm): 280 Height (mm): 130 Materials: Material: Polycarbonate Base color: RAL_7035 Cover color: Clear transparent Seal material: Polyurethane Temperature: Temperature °C (long-term): -40 … 80 Classifications: Standards EN 62208:2011, IEC 62208:2011 Ingress protection rating (EN 60529): IP66 IP67 Impact resistance (EN 62262): IK08 Electrical insulation: Protected insulated Halogen-free (DIN/VDE 0472, part 815): Yes UV resistance: UL 746C Flammability rating: UL 94 V0 Hot wire test (IEC 60695): 960C This product description is an automated translation of the original Finnish description.
