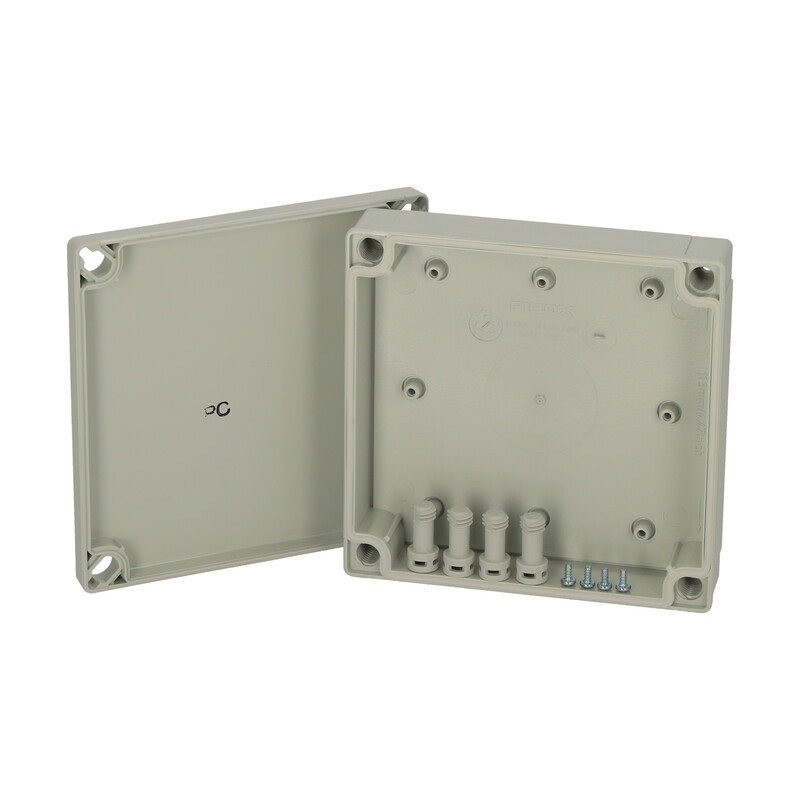

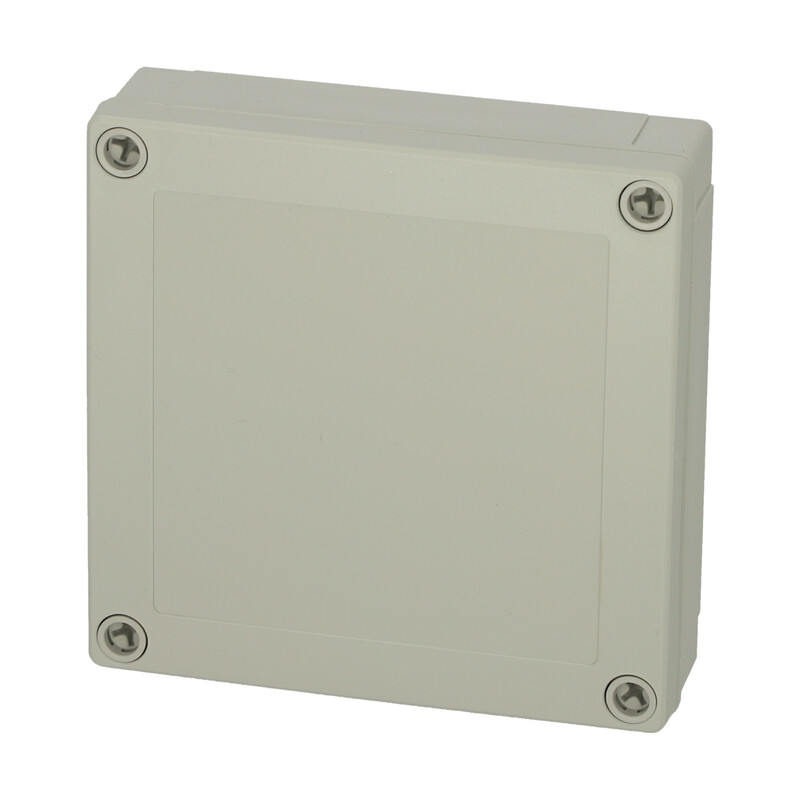

MOUNTING ENCLOSURE PC PC 125/35 LG

FIBOX MNX PC polycarbonate enclosure boxes

Fibox PC (polycarbonate) is a series of MNX enclosure boxes, in addition to PCM and ABS enclosures.

A complete enclosure system for applications requiring durability, functional design, and optimal installation possibilities—even in demanding and exposed environments. With so many variations and optional accessories, custom solutions are widely possible based on standard models.

FIBOX MNX enclosure variations; polycarbonate and ABS enclosures

The MNX enclosure series represents ease of use and functionality. MNX withstands heavy use and critical scrutiny. Designed for automation, control, and monitoring devices. The seal of MNX polycarbonate and ABS enclosures fits into the housing like a cast; thanks to advanced two-component manufacturing technology, the TPE seal is compressed into place already in the mold. Some enclosures also use a polyurethane seal.

Dimensions available: WxDxH: 100*100*35 mm - 360*255*150 mm.

PC: IP 66/IP 67; IK 08; NEMA 1, 4, 4X, 6, 12 and 13; UL 746C 5V; UL 508
ABS: IP 66/IP 67; IK 07; NEMA 1, 4, 4X, 6 (12 and 13); UL94HB

PC = polycarbonate, PCM = polycarbonate, metric cable entries, ABS = acrylonitrile butadiene styrene

G = Grey, T = Transparent, smoke-grey transparent lid

L = Low, low base, H = High, high base, XH = Extra High, extra high base (for PC enclosures), X = Extra high, extra high base (for PCM enclosures)

Product:
Product description: Enclosure PC
Additional information: Low base, grey lid
Packaging unit: 8
Unit: Pc

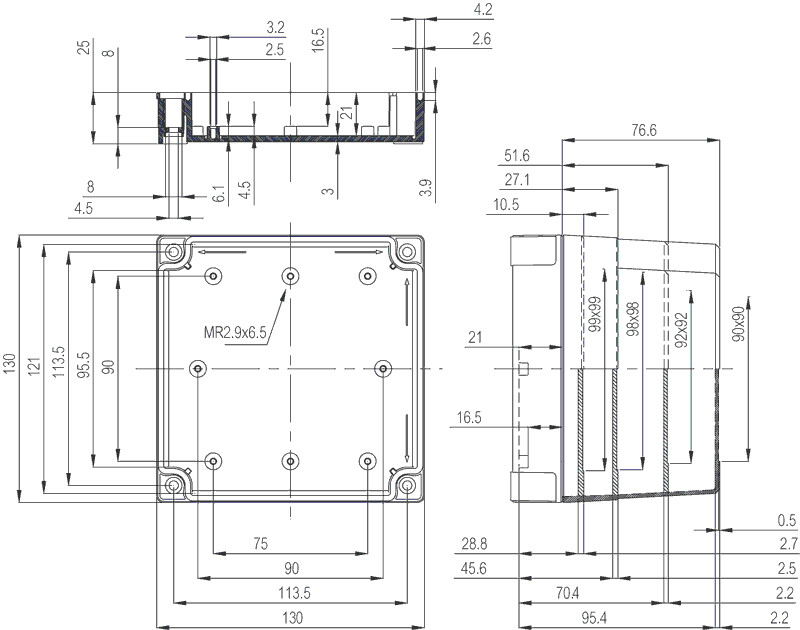

Dimensions:
Length (mm): 130
Width (mm): 130
Height (mm): 35

Materials:
Material: Polycarbonate
Base color: RAL_7035
Lid color: RAL 7035 - light grey
Seal material: TPE

Temperature ranges:
Temperature °C (long-term): -40 … 80

Classes:
Standards EN 62208:2011, IEC 62208:2011
Protection class (EN 60529): IP66 IP67
Impact resistance (EN 62262): IK08
Electrical insulation: Protected insulated
Halogen-free (DIN/VDE 0472, part 815): Yes
UV resistance: UL 746C
Flammability class: UL 94 V0
Hot wire test (IEC 60695): 960C This product description is an automated translation of the original Finnish description.
