TERMINAL BLOCK ENCLOSURE PC EK CUAL EK 562813 G 2X150MM2
Product code
3424737

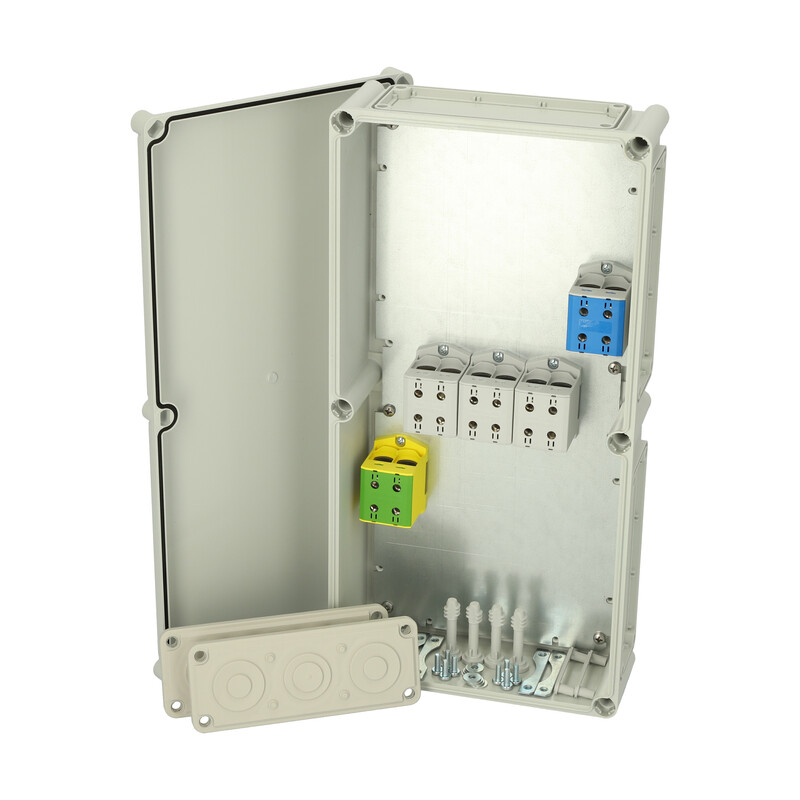

Fibox CUAL junction boxes for extending aluminum and copper cables. The enclosure is made of polycarbonate, compatible with our EK range, and meets IP66/67 and UL94-5V/V0 fire rating
Includes: EK base with gland opening, Al/Cu connectors 2x 5x25mm²-150mm² pre-installed, 2x membrane gaskets size 2, cover with PUR seal and polyamide cover screws. PC, IP66/67, IK08, 560x280x130 IP66; IP67; IK08
Dimensions:
Length (mm): 560
Width (mm): 280
Height (mm): 130
Materials:
Material: Polycarbonate
Base color: RAL_7035
Cover color: RAL 7035 - light grey
Seal material: Polyurethane
Classifications:
Ingress protection class (EN 60529): IP66 IP67
Impact resistance (EN 62262): IK08
Electrical insulation: Protected insulation
Halogen-free (DIN/VDE 0472, part 815): Yes
UV resistance: UL 746C
Flammability rating: UL 94 V0
Hot wire test (IEC 60695): 960C This product description is an automated translation of the original Finnish description.
Includes: EK base with gland opening, Al/Cu connectors 2x 5x25mm²-150mm² pre-installed, 2x membrane gaskets size 2, cover with PUR seal and polyamide cover screws. PC, IP66/67, IK08, 560x280x130 IP66; IP67; IK08
Dimensions:
Length (mm): 560
Width (mm): 280
Height (mm): 130
Materials:
Material: Polycarbonate
Base color: RAL_7035
Cover color: RAL 7035 - light grey
Seal material: Polyurethane
Classifications:
Ingress protection class (EN 60529): IP66 IP67
Impact resistance (EN 62262): IK08
Electrical insulation: Protected insulation
Halogen-free (DIN/VDE 0472, part 815): Yes
UV resistance: UL 746C
Flammability rating: UL 94 V0
Hot wire test (IEC 60695): 960C This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Enclosure/cabinet (empty) (EC000261)
Width380 mm
Height130 mm
Depth560 mm
MaterialPlastic
Material qualityOther
Surface finishingUntreated
ColourGrey
RAL-number7035
Freestandingyes
Floor standing wall modelno
Suitable for wall mountingyes
Corner modelno
Intermediate mountingyes
Couplableyes
With mounting plateno
Product codes
SAPDAJ164
STK3424737
PLC3424737
GTIN/EAN6418074319722
Manufacturer part number2674643
Vendor material number2674643
Basic information
Package measurements (L x W x H)560 x 380 x 130 mm
Package volume27.664 l
Package weight1 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121303
BrandFIBOX
VendorFIBOX OY
The country of origin stated by the supplierFinland
Documents (8)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)20.163
GWP, uniteach
Source for GWP dataEPD
