FIREANGEL

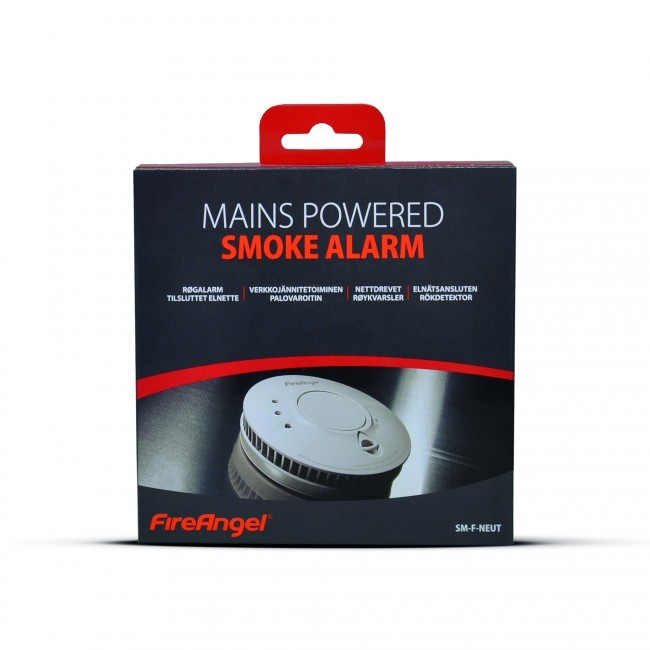

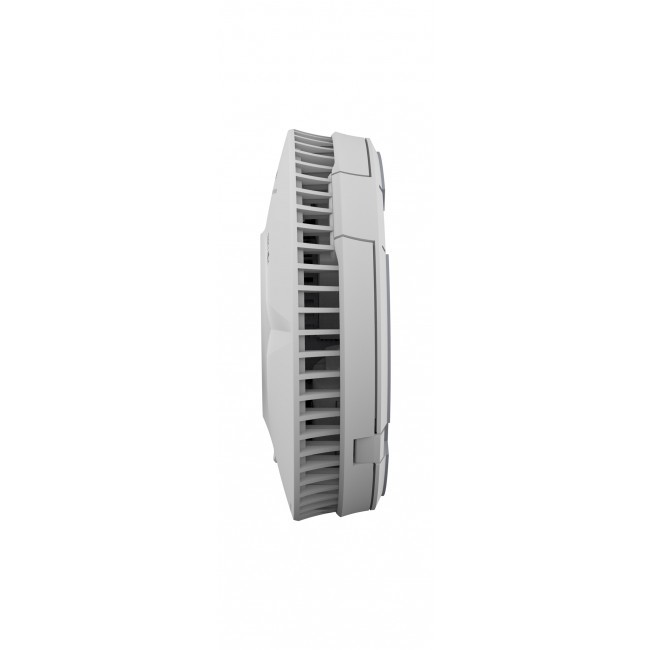

FIRE ALARM - OPTICAL FIREANGEL FIRE ALARM 10Y SM-F
Product code
7113536
Thermoptek Multi-Sensor technology, used by over 90 percent of UK Fire & Rescue Services.
Rapid response to all fire types with the ability to trigger an alarm based on ionization or optical detection.
Sealed, long-life battery ensures 24/7 operational reliability and optimal protection for property.
Significant energy-saving features. Centralized operation button - test / Smart Silence / location.
Secondary backup battery.
Can be wirelessly connected using a separate radio module (product number 604020 / 7113574). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fire detector (EC001763)
Operating principleCombination
Optical notificationyes
Acoustic notificationyes
Min. sound level (at a distance of 3 metres)43 dB(A)
Response temperature54 °C
Smoke switcheryes
With orientation lightingno
Type of test-/pause buttonCombination
Mounting methodSurface mounting
Self-adhesiveno
Separate socket neededno
Suitable for duct mountingno
Cable entryBottom and side
Standaloneyes
Networkable via cableyes
Product codes
SAPDEZ082
STK7113536
PLC7113536
GTIN/EAN816317002640
Manufacturer part number601184
Vendor material number601184
Basic information
Package measurements (L x W x H)142 x 142 x 43 mm
Package volume0.867 l
Package weight0.258 kg
Base uniteach
Package units1 / 20 / 360
Package contents–
UNSPSC46191505
BrandFIREANGEL
VendorGPBM NORDIC OY
