FIREANGEL

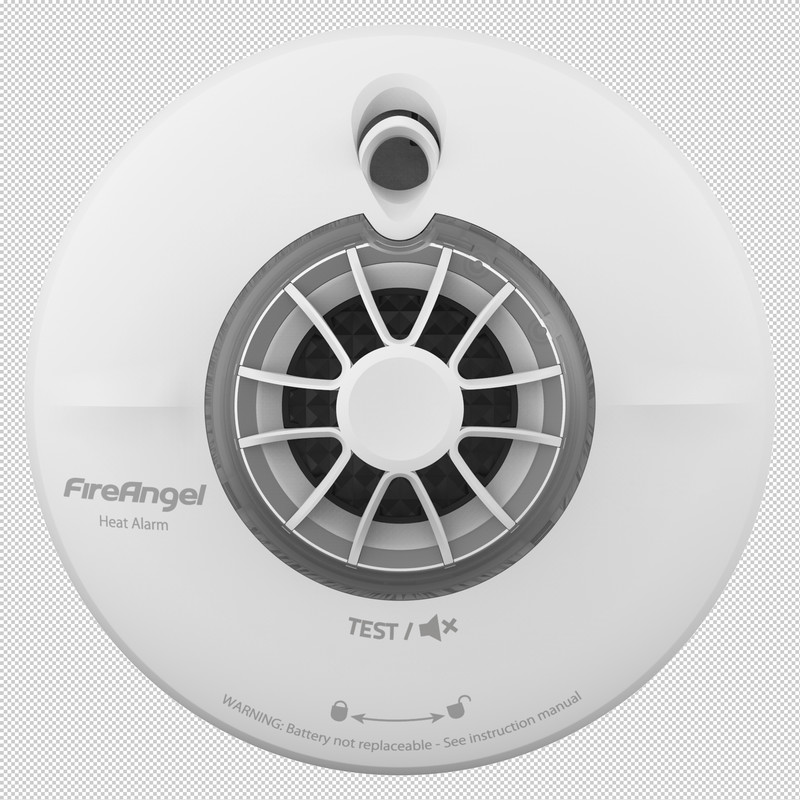

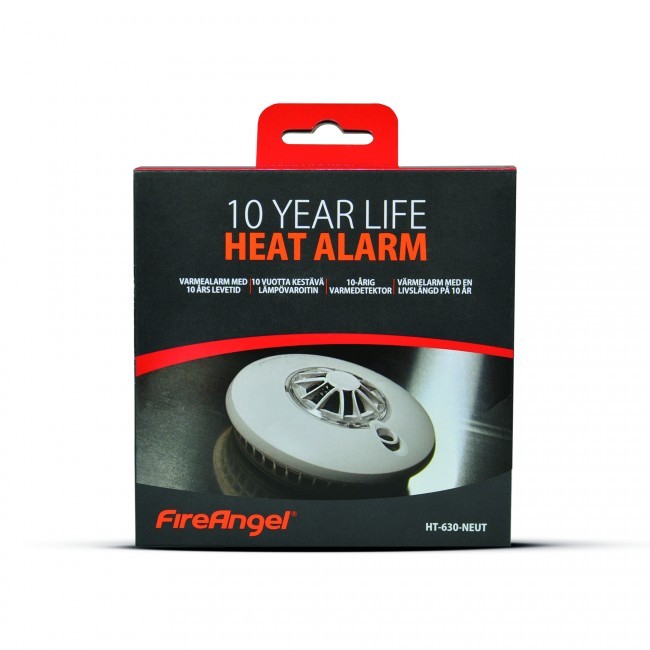

TEMPERATURE DETECTOR FIREANGEL TEMP. ALARM 10Y HT-630
Product code
7113547
When the temperature rises significantly, Thermistek technology detects it quickly.
Class A1 device.
10-year built-in lithium battery.
Large central button - test / smart pause / location.
Smart pause silences the alarm for 10 minutes. If heat is detected during this 10-minute period, the alarm reactivates.
Can be wirelessly connected using a separate radio module (product number 604020 / 7113574). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fire detector (EC001763)
Operating principleThermo differential
Acoustic notificationyes
Response temperature54 °C
Smoke switcherno
With orientation lightingno
Type of test-/pause buttonCombination
Mounting methodSurface mounting
Self-adhesiveno
Separate socket neededno
Suitable for duct mountingno
Standaloneyes
Networkable via cableno
Networkable via radiografic (standard)no
Networkable via radio (optional)yes
Max. number networkable30
Product codes
SAPDEZ087
STK7113547
PLC7113547
GTIN/EAN816317003968
Manufacturer part number601133
Vendor material number601133
Basic information
Package measurements (L x W x H)62 x 134 x 134 mm
Package volume1.113 l
Package weight0.23 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC46191505
BrandFIREANGEL
VendorGPBM NORDIC OY
