FIREANGEL

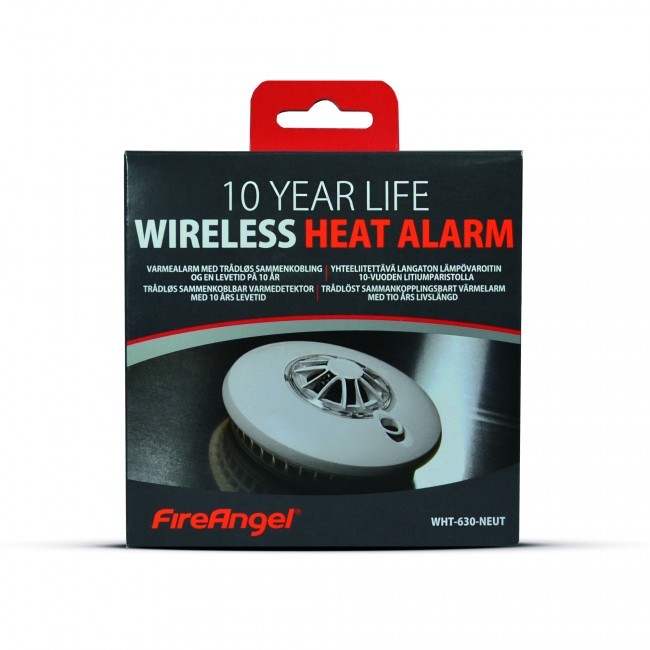

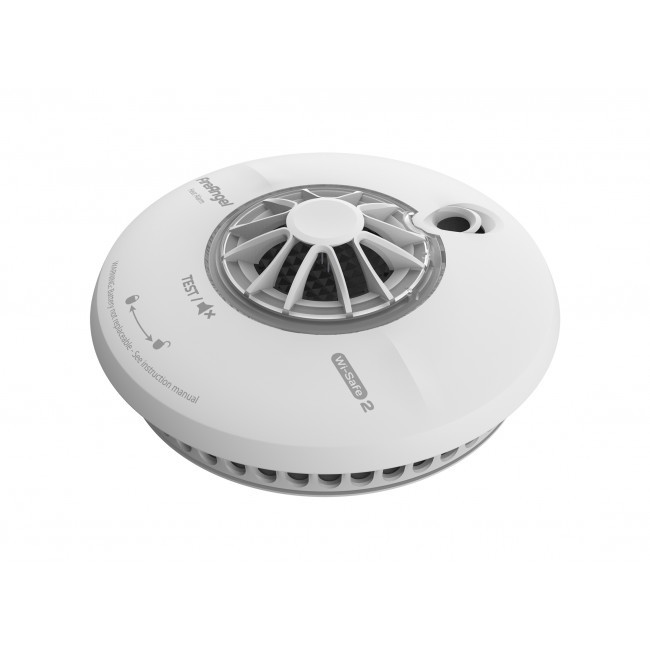

TEMPERATURE DETECTOR FIREANGEL TEMP. ALARM WIRELESS WHT-630
Product code
7113538
WI-SAFE2 wirelessly connectable, up to 50 units in one series. CLASS A1 DEVICE. Large central button - test/mute/location. Mute function - allows silencing the alarm for up to 10 minutes in case of a false alarm. If additional smoke is detected during this time, the alarm reactivates. Location function - when the system alarms, pressing this button silences all units except the one that triggered the alarm. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fire detector (EC001763)
Operating principleThermo differential
Acoustic notificationyes
Response temperature54 °C
Smoke switcherno
With orientation lightingno
Type of test-/pause buttonCombination
Mounting methodSurface mounting
Self-adhesiveno
Separate socket neededno
Suitable for duct mountingno
Standaloneyes
Networkable via cableno
Networkable via radiografic (standard)yes
Networkable via radio (optional)no
Max. number networkable50
Product codes
SAPDEZ084
STK7113538
PLC7113538
GTIN/EAN816317003975
Manufacturer part number601126
Vendor material number601126
Basic information
Package measurements (L x W x H)132 x 132 x 60 mm
Package volume1.045 l
Package weight0.204 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC32101519
BrandFIREANGEL
VendorGPBM NORDIC OY
