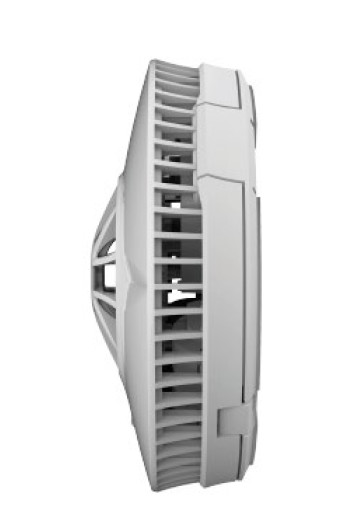

TEMPERATURE DETECTOR FIREANGEL TEMPERATURE ALARM 230V HM-F

Product code
7113563
Class A1 device. Large central button - testing / silencing / location. Silencing function - allows the alarm to be muted for up to 10 minutes in case of a false alarm. If additional smoke is detected during this time, the alarm will reactivate. Location function - when the system alarms, pressing this button silences all units except the unit that triggered the alarm. Can be wirelessly connected using a separate radio module (product number 604020 / 7113574) This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Fire detector (EC001763)
Operating principleThermo differential
Acoustic notificationyes
Response temperature54 °C
Smoke switcherno
With orientation lightingno
Type of test-/pause buttonCombination
Mounting methodSurface mounting
Self-adhesiveno
Separate socket neededno
Suitable for duct mountingno
Cable entryBottom and side
Standaloneyes
Networkable via cableyes
Networkable via radiografic (standard)no
Networkable via radio (optional)yes

Product codes

SAPDEZ092
STK7113563
PLC7113563
GTIN/EAN816317002664
Manufacturer part number601136
Vendor material number601136

Basic information

Package measurements (L x W x H)70 x 152 x 152 mm
Package volume1.617 l
Package weight0.375 kg
Base uniteach
Package units1 / 4
Package contents
UNSPSC32101519
BrandFIREANGEL
VendorGPBM NORDIC OY
