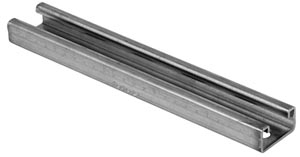

CHANNEL FUS ZN FISCHER 41x21/2,5mm L6m
Product code
3233672
High-quality Fischer mounting rail is a U-profile rail for horizontal and vertical installations. It enables fast and efficient mounting of pipe lines and support structures. The FUS system offers a comprehensive range of Fischer accessories.
The rail's toothed design provides secure holding for sliding nuts even in vertical installations and under high shear loads. The mounting rail's measurement scale simplifies cutting and positioning of components and speeds up installation. The long slots on the mounting rail allow greater flexibility in mounting.
Electro-galvanized, for dry indoor environments. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mounting rail/-profile (EC000386)
Length6000 mm
Width41 mm
Height21 mm
Material thickness2.5 mm
Profile shapeC-profile
ModelSingular profile
Type of perforationBack perforated
Hole width30 mm
With toothingyes
Snap-offyes
MaterialSteel
Surface protectionGalvanic/electrolytic zinc plated
ColourZinc
Product codes
SAPCYH937
HPAC3233672
PLC3233672
GTIN/EAN4006209775417
Manufacturer part number77541
Vendor material number77541
Basic information
Package measurements (L x W x H)6000 x 41 x 21 mm
Package volume5.166 l
Package weight10.092 kg
Base uniteach
Package units1 / 50
Package contents–
UNSPSC40141725
BrandFISCHER
VendorFISCHER FINLAND OY
