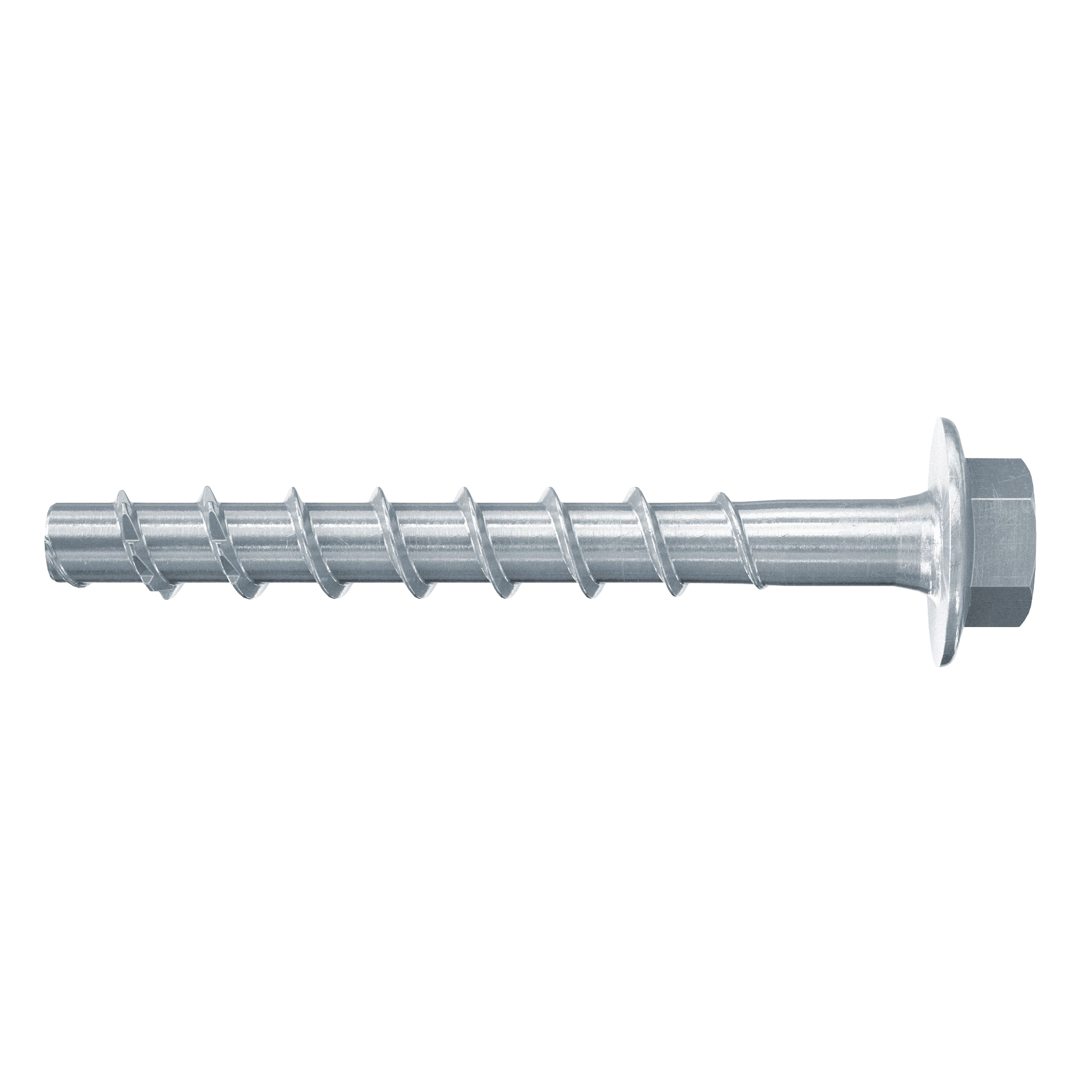

CONCRETE SCREW FISCHER FBS II 6X100/45US 100PCS
Product code
3254211
The Fischer concrete screw FBS 6 with two different anchoring depths is extremely versatile. The short model's shallow drill hole depth enables significantly faster and easier installation. The FBS 6 is a quick-to-install and cost-effective solution for many applications.
The head type, US hex head/ wrench size 10 mm, allows use in various application areas. The FBS 6 is approved for multiple anchoring in non-load-bearing systems and is now also approved for use in ceilings and intermediate floors in pre-stressed concrete hollow core slabs - European Technical Approval for cracked and uncracked concrete as well as seismic loads and fire resistance classification R 120 ensures even greater safety. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Anchor bolt (EC000048)
BracingOther
Anchor modelOther
Fastening provisionThread end
Screwing systemOutside hexagon
Material anchorSteel
Surface protection anchorGalvanic/electrolytic zinc plated
With collarno
Length100 mm
Drill hole diameter6 mm
Min. drill hole depth110 mm
Push-through installationyes
Pre-positioned installationno
Spaced installationno
Suitable for cracked concreteyes
Suitable for uncracked concreteyes
Product codes
SAPCGT473
HPAC3254211
PLC3254211
GTIN/EAN4048962329513
Manufacturer part number546393
Vendor material number546393
Basic information
Package measurements (L x W x H)180 x 90 x 90 mm
Package volume1.458 l
Package weight2.8 kg
Package units1

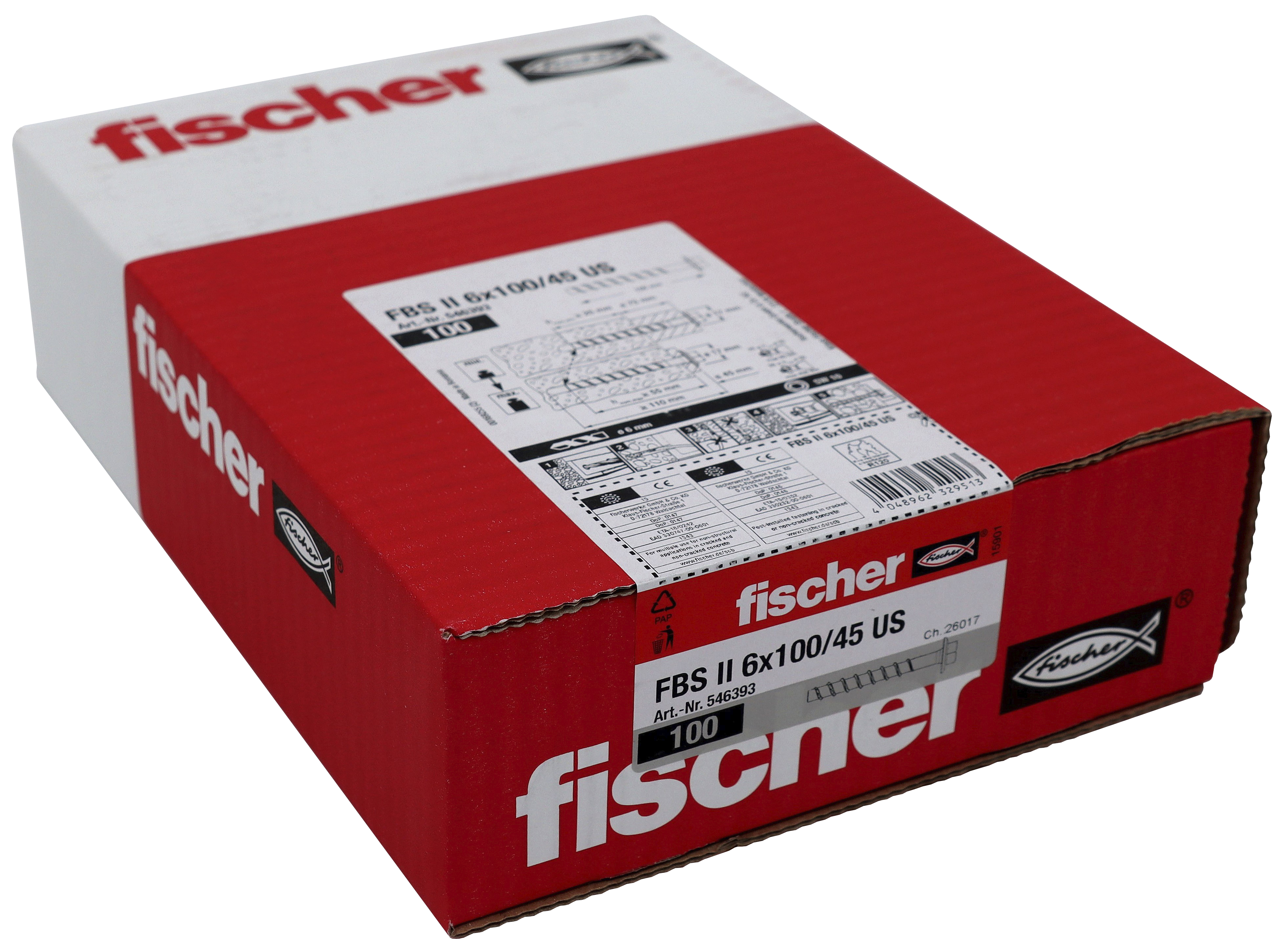

Package contents100 each
UNSPSC31162101
BrandFISCHER
VendorFISCHER FINLAND OY
