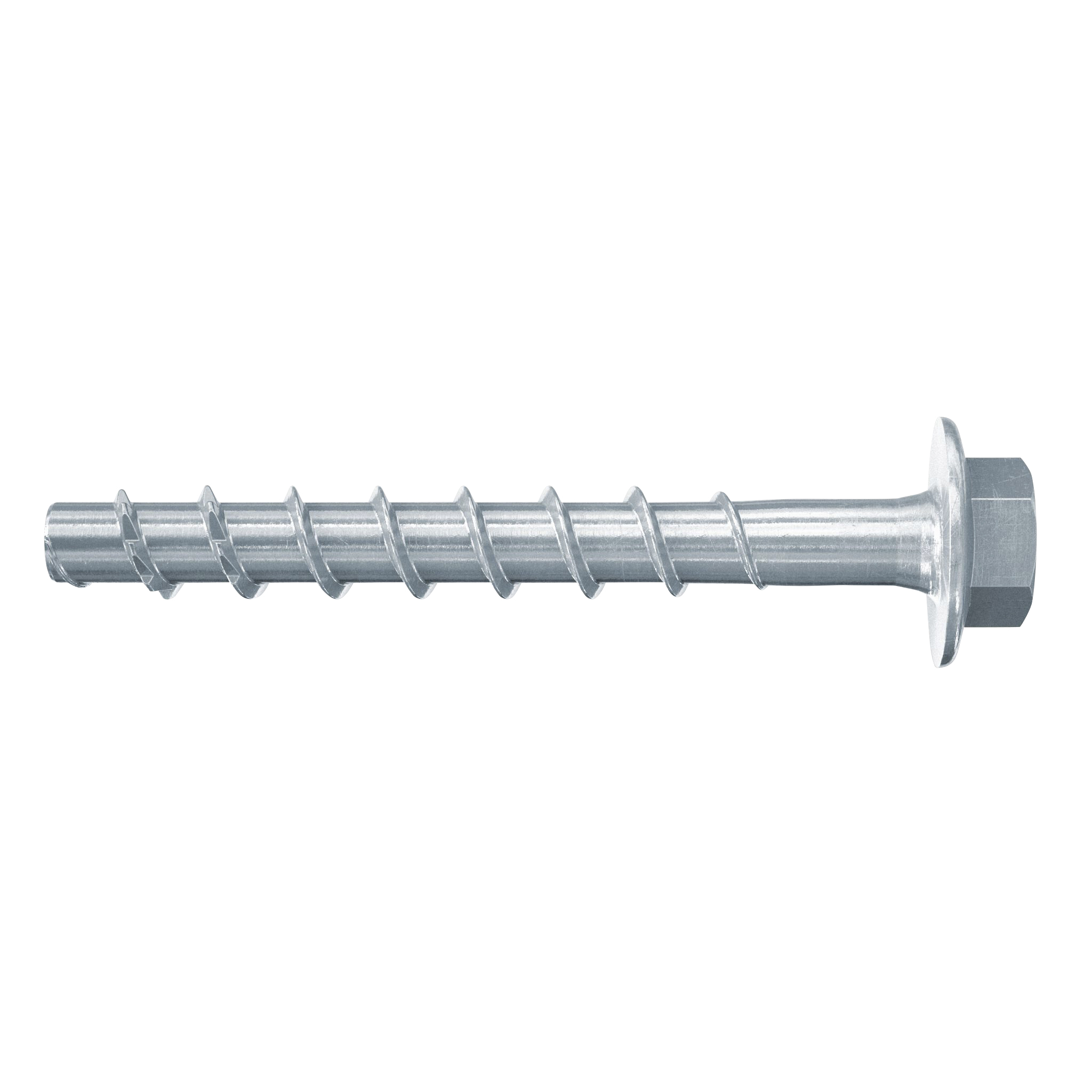

CONCRETE SCREW FISCHER FBS II 6x40/5US 100pcs
Product code
3254205
The Fischer concrete screw FBS II with two different installation depths is extremely versatile. The short model's shallow pilot hole depth enables significantly faster and easier installation. The FBS II is a quick-to-install and cost-effective solution for many applications.
The flange type, US hex head/ wrench size 10 mm, allows use in various application areas. The FBS II is approved for multiple fastenings in non-load-bearing systems and is now also approved for use in ceilings and intermediate floors in pre-stressed concrete hollow core slabs – European Technical Approval for cracked and uncracked concrete as well as seismic loads and fire resistance classification R 120 ensures even greater safety. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Concrete screw (EC002910)
Length40 mm
Thread diameter7.5 mm
Drill hole diameter6 mm
Min. drill hole depth50 mm
MaterialSteel
Material qualityOther
Hardenedyes
Type of hardeningThrough hardening
Surface protectionGalvanic/electrolytic zinc plated
Head formHexagon with pressed ring
Screwing systemOutside hexagon
Wrench width10 mm
Size (TX)30
Suitable for cracked concreteyes
Suitable for uncracked concreteyes
Product codes
SAPCGT486
HPAC3254205
PLC3254205
GTIN/EAN4048962329483
Manufacturer part number546390
Vendor material number546390
Basic information
Package measurements (L x W x H)180 x 90 x 90 mm
Package volume1.458 l
Package weight1.46 kg
Package units1

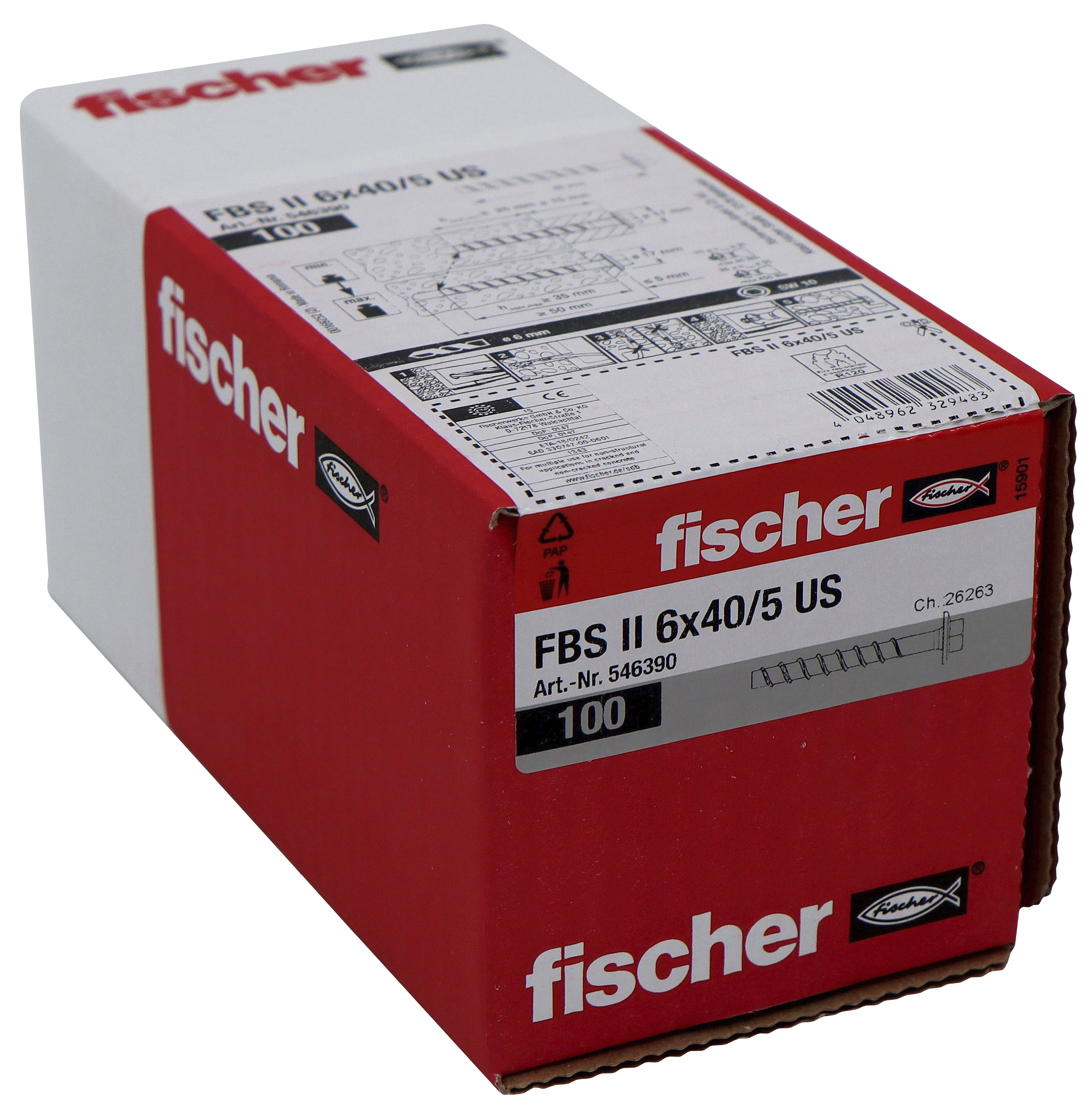

Package contents100 each
UNSPSC31162101
BrandFISCHER
VendorFISCHER FINLAND OY
