EXPANSION PLUG FISCHER SX PLUS 12X60 50PCS

Product code
3285476

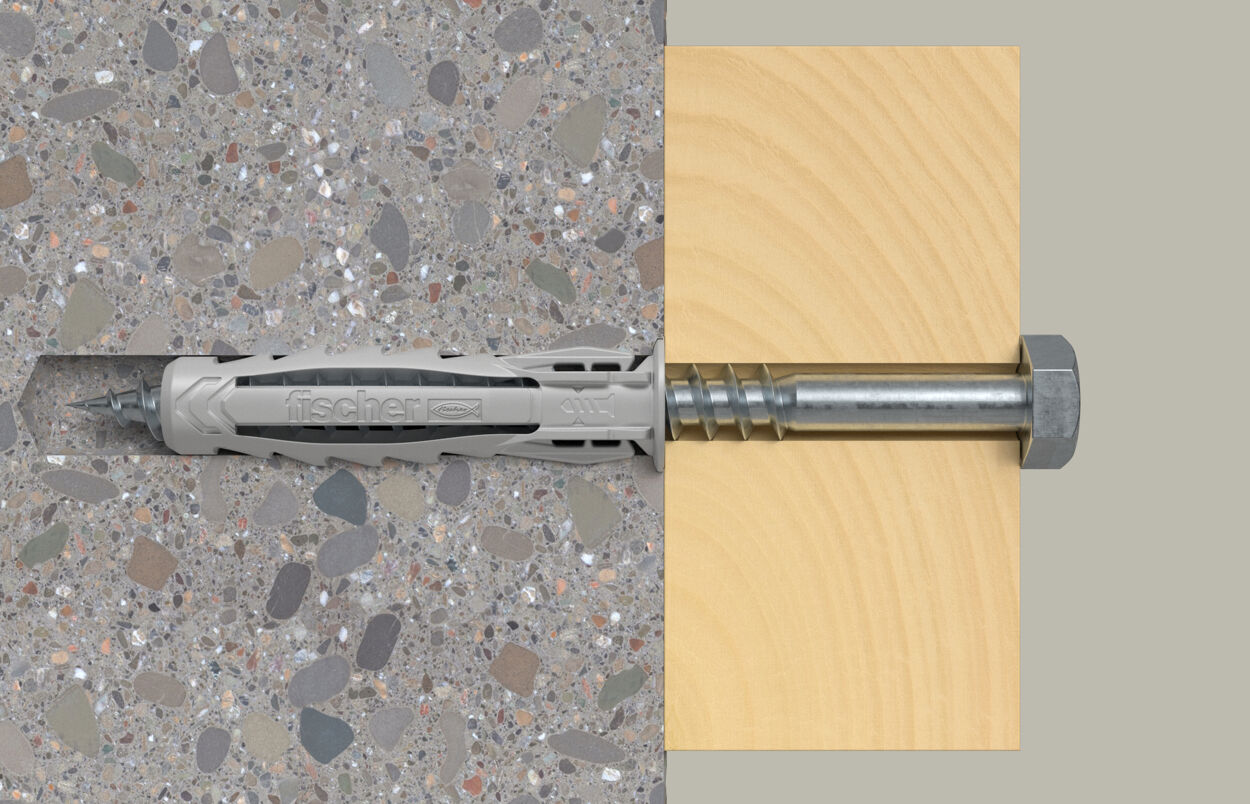

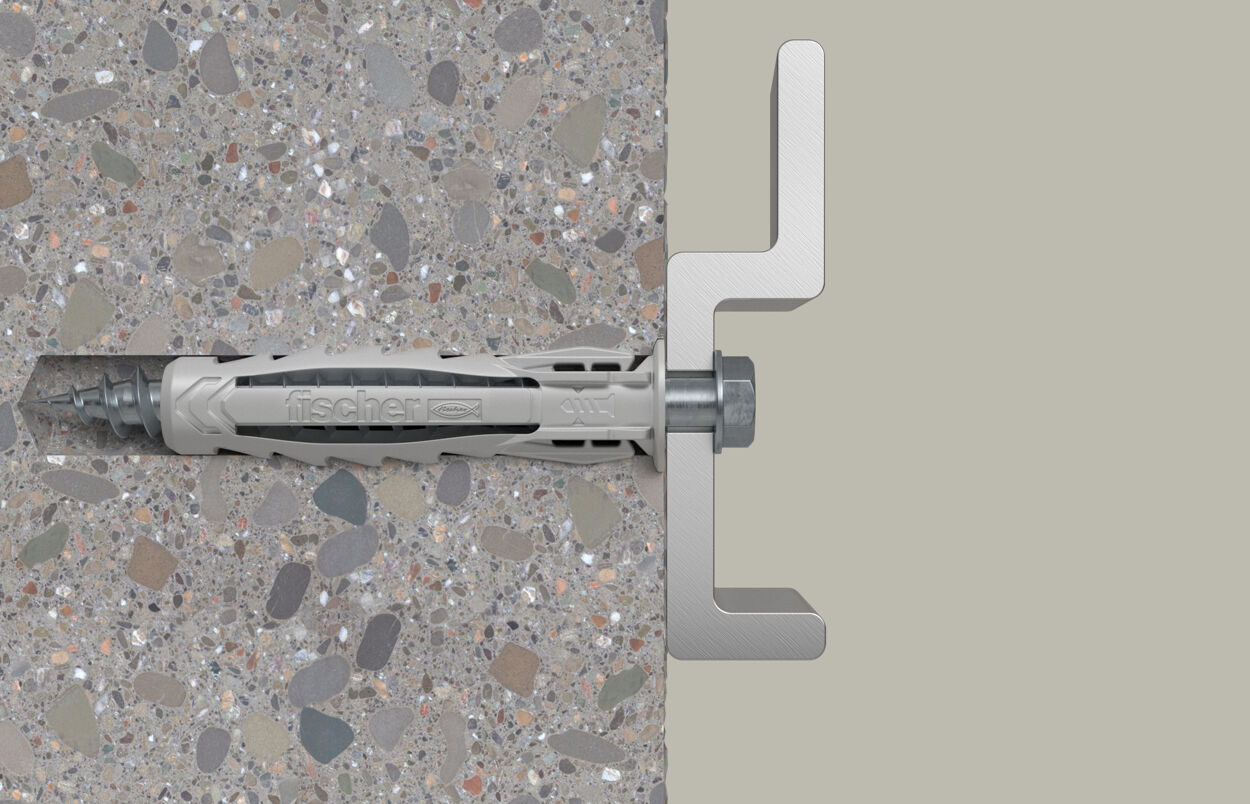

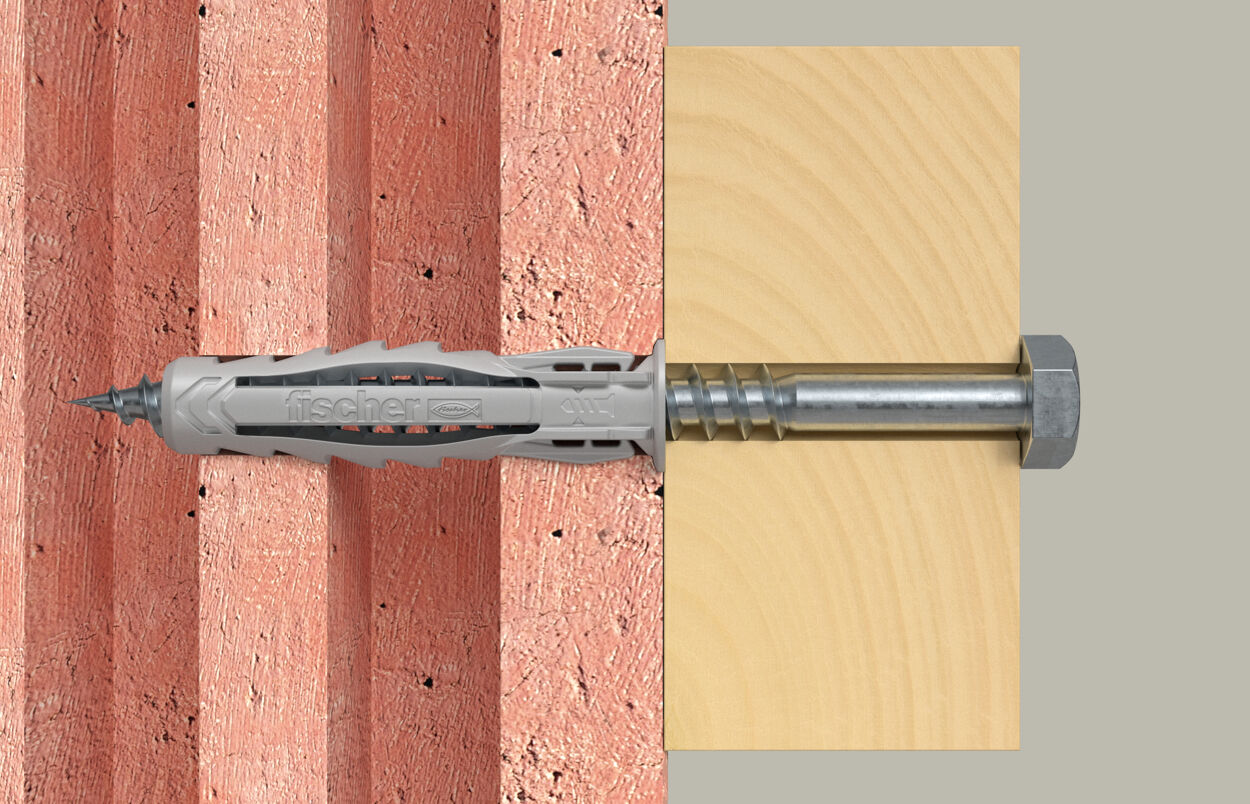

The fischer SX Plus nail plug is designed for solid building materials such as concrete, lightweight concrete, and masonry structures, thanks to its four-way expansion. The four-way expansion also ensures optimal force transfer to the building material and guarantees high holding values in solid and perforated building materials. Special mounting wings ensure pre-tightening of the screw, meaning the screw does not need to be held in place during overhead installations, leaving the user both hands free during installation. This screw fastening allows the user a flexible and comfortable installation. The flexible plug edge also prevents the plug from sliding deeper into the drill hole. The non-expanding plug neck prevents expansion forces from forming on the material surface when screwing in the screw, helping to prevent damage to tiles and plaster. The plug's special shape facilitates insertion into the drill hole with just a few hammer blows. Thanks to the tightening torque, the user automatically recognizes when the screw has been correctly installed, thus preventing over-tightening. The included screws are optimally suited for the fischer SX Plus plug. High-quality nylon material ensures a permanent, secure hold in various solid and perforated building materials. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)All-purpose plug (EC000089)
ModelExpanding plug
Length60 mm
Drill hole diameter12 mm
Drill hole depth80 mm
Suitable for screw diameter8 - 10 mm
Suitable for coach screwno
With screwno
MaterialPlastic
Material qualityOther
ColourGrey
With edgeyes
Suitable for calcium silicate brickyes
Suitable for cellular concreteyes
Suitable for concreteyes
Suitable for fibre-/chipboardno

Product codes

SAPDCV301
HPAC3285476
PLC3285476
GTIN/EAN4048962480856
Manufacturer part number568012
Vendor material number568012

Basic information

Package measurements (L x W x H)90 x 90 x 90 mm
Package volume0.729 l
Package weight0.153 kg
Package units1
Package contents
UNSPSC31162104
BrandFISCHER
VendorFISCHER FINLAND OY
