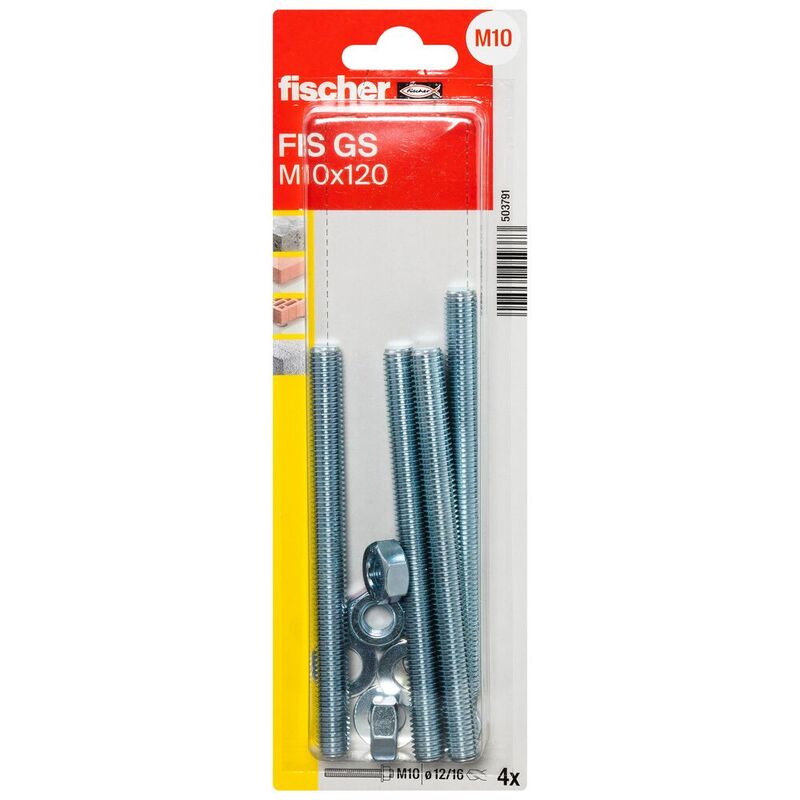

INJECTIO THREAD ANCHOR FISCHER FIS GS M10X120 K NV ZN
Product code
3285941
fischer FIS GS is a cost-effective solution for attachments with injection mortar where approval is not required. The injection screw anchor is manufactured from zinc-coated steel with a strength class of 5.8.
Installation is performed by pushing the screw anchor into a drilled hole while gently rotating it. It is particularly well suited for economical interior attachments, such as securing machinery, steel structures, and support legs together with injection mortar. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Anchor rod (EC002336)
MaterialSteel
Surface protectionGalvanic/electrolytic zinc plated
Thread typeMetric
Thread size (metric)10
Thread size (imperial)#10
Length120 mm
With outer threadyes
Product codes
SAPDKW308
HPAC3285941
PLC3285941
GTIN/EAN4048962059373
Manufacturer part number503791
Vendor material number503791
Basic information
Package measurements (L x W x H)20 x 75 x 230 mm
Package volume0.345 l
Package weight0.299 kg
Package units1
Package contents–
UNSPSC31162104
BrandFISCHER
VendorFISCHER FINLAND OY
Documents (2)
Links
Environment and safety
Manufacturer
Namefischer Finland Oy
Postal addressSuomalaistentie 7 B, 02270 Espoo
