PIPE CLAMP FGRS UNIVERSAL ZN 53-59mm M8/M10 INSULATED

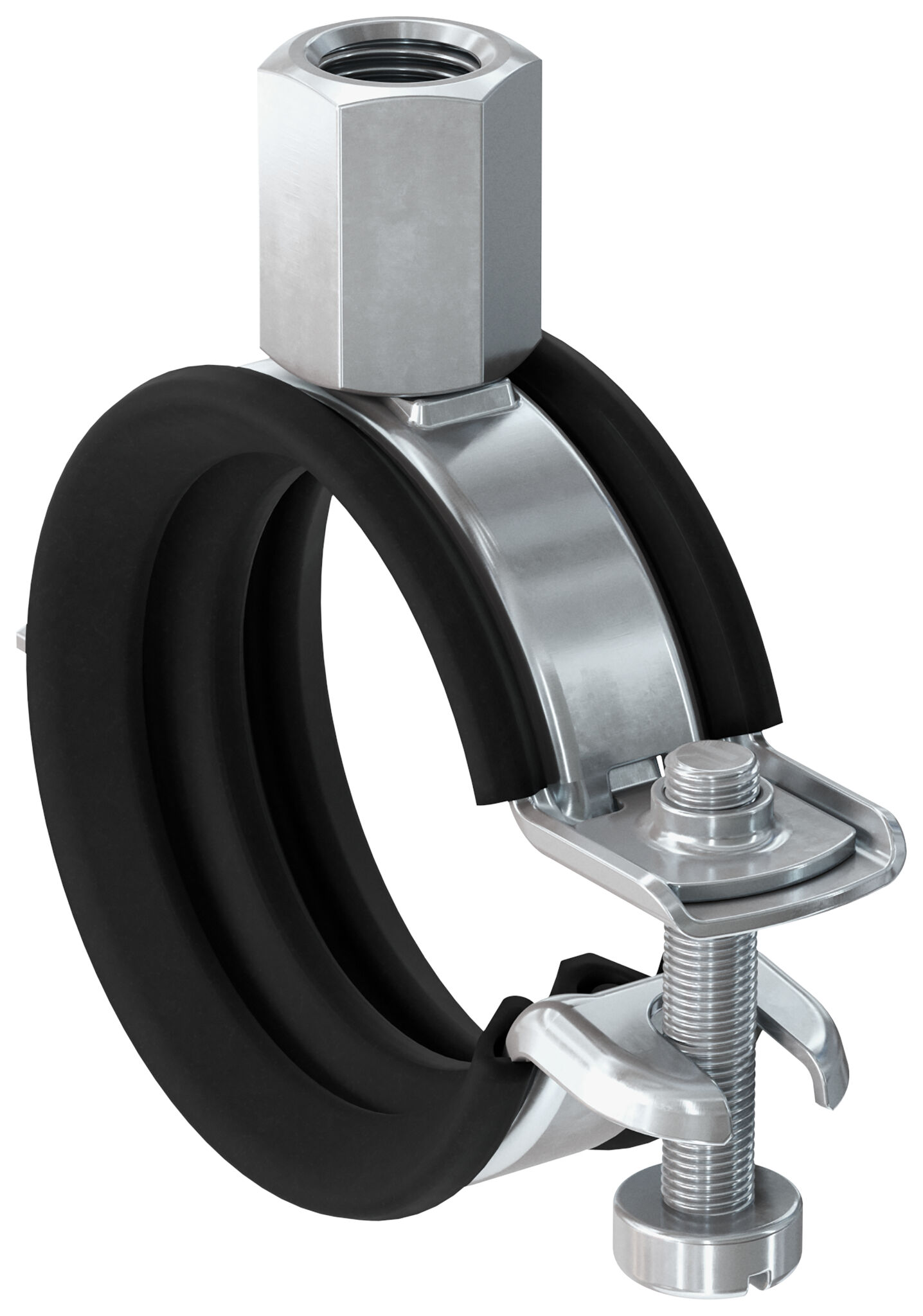

The Fischer FGRS Universal is a pipe clamp made of zinc-coated steel (DD11) with an M8/M10 combined thread. The quick-lock mechanism and combined thread enable easy, time-saving installation. The quick-lock mechanism snaps into place, ensuring reliable pipe adjustment without the clamp opening. This allows for the safe installation of pipes with diameters of 12-115 mm using threaded rods or anchor bolts indoors. With a chlorine-free and silicone-free acoustic insulation, the pipe clamp meets DIN 4109 requirements.

Benefits

• Acoustic insulation report guarantees objectively tested operational safety.
• Wide range enables installation of pipes of all sizes.
• Unique quick-lock mechanism with surrounding rim ensures safe and practical installation.
• The clamp ring with embossed edges provides a tight fit for the acoustic insulation, facilitating pipe adjustment.
• The compact design of the pipe clamp allows for simple, sequential insulation.
• The combination of Torx and slot profiles increases flexibility during assembly.

Features

• Material: steel DC01 (material no. 1.0330), compliant with DIN EN 10130
• Coating: electroplated zinc, at least 5 ?m, compliant with DIN EN ISO 4042
• Threaded nut: resistance welded, size 13
• Plug screw: cup-head screw with combined Torx and slot profile
• Acoustic insulation material: SBR/EPDM; chlorine-free; silicone-free
• Hardness: 55 ± 5° Shore A
• Temperature range: -40 °C to +100 °C
• Flammability behavior: DIN 4102: class B2
