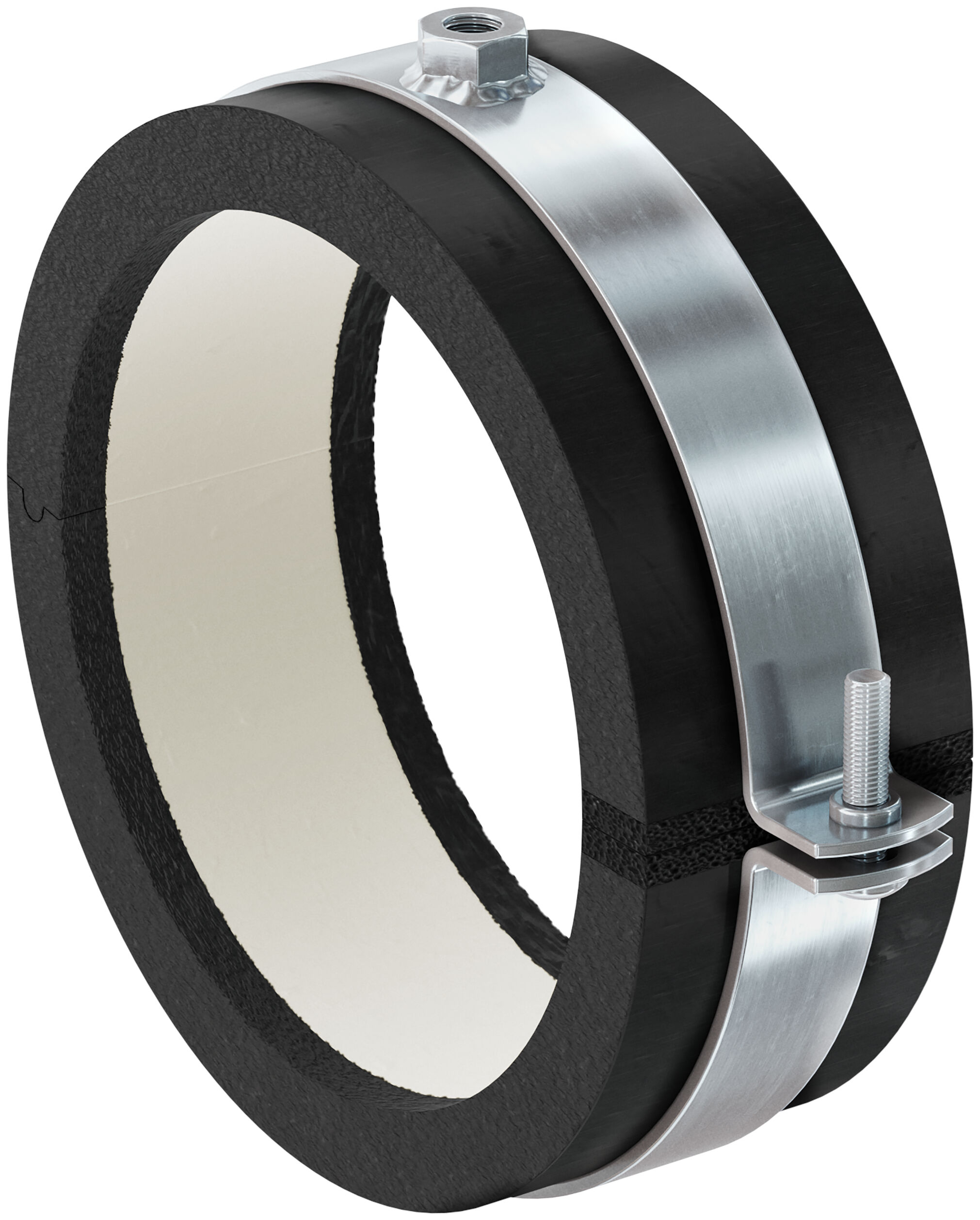

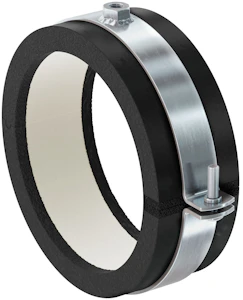

REFRIGERATION PIPE CLAMP FRSK 219-221mm M12 INSULATED

Fischer FRSK is a two-screw pipe support designed for cooling pipes with a quick-lock mechanism and either an M8/M10 combination thread or an M12 thread. The two-screw version enables optimized adjustment according to the pipe's outer diameter, increasing flexibility in assembly when combined with the combination thread.

Benefits

• Adjustable mounting area balance and two-screw design allow simple adjustment according to the pipe's outer diameter, reducing the number of required tools.
• The self-locking clamp ensures ideal operation of the cooling pipe holder.
• Age-resistant material ensures consistent performance of the FRSK holder.
• The double-threaded connector nut provides flexibility on construction sites.
• The screw chip guard enables easy installation.
• The integrated load-distribution plate ensures load transfer and enables higher loads.

Features

• Insulation material: Rigid polyurethane foam, silicone-free
• Diffusion resistance: 7000 µ
• Density: 80 or 120 kg/m³
• Compression strength: 0.67–0.75 MPa
• Thermal conductivity (0 °C): 0.024–0.026 W/mK
• Fastening screw: Oval base screw with recess / Philips head combination
• Temperature range: -45 °C to +105 °C
• Flammability behavior: DIN 4102: Class B2

This product description is an automated translation of the original Finnish description.
