AIR GRILLE OSK 400X200
Product code
8813028

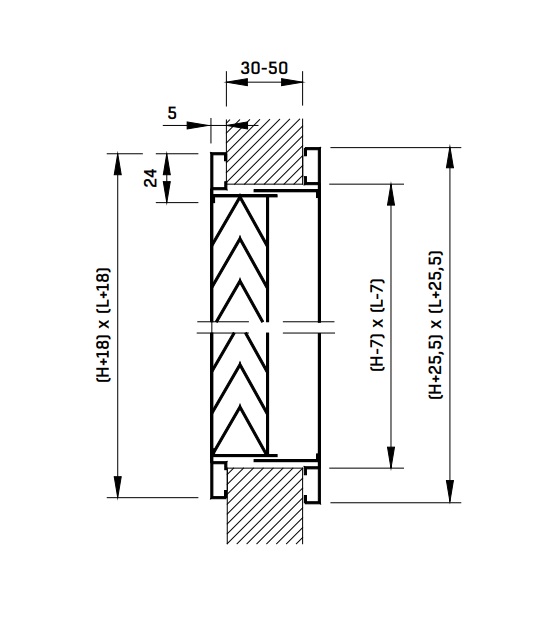

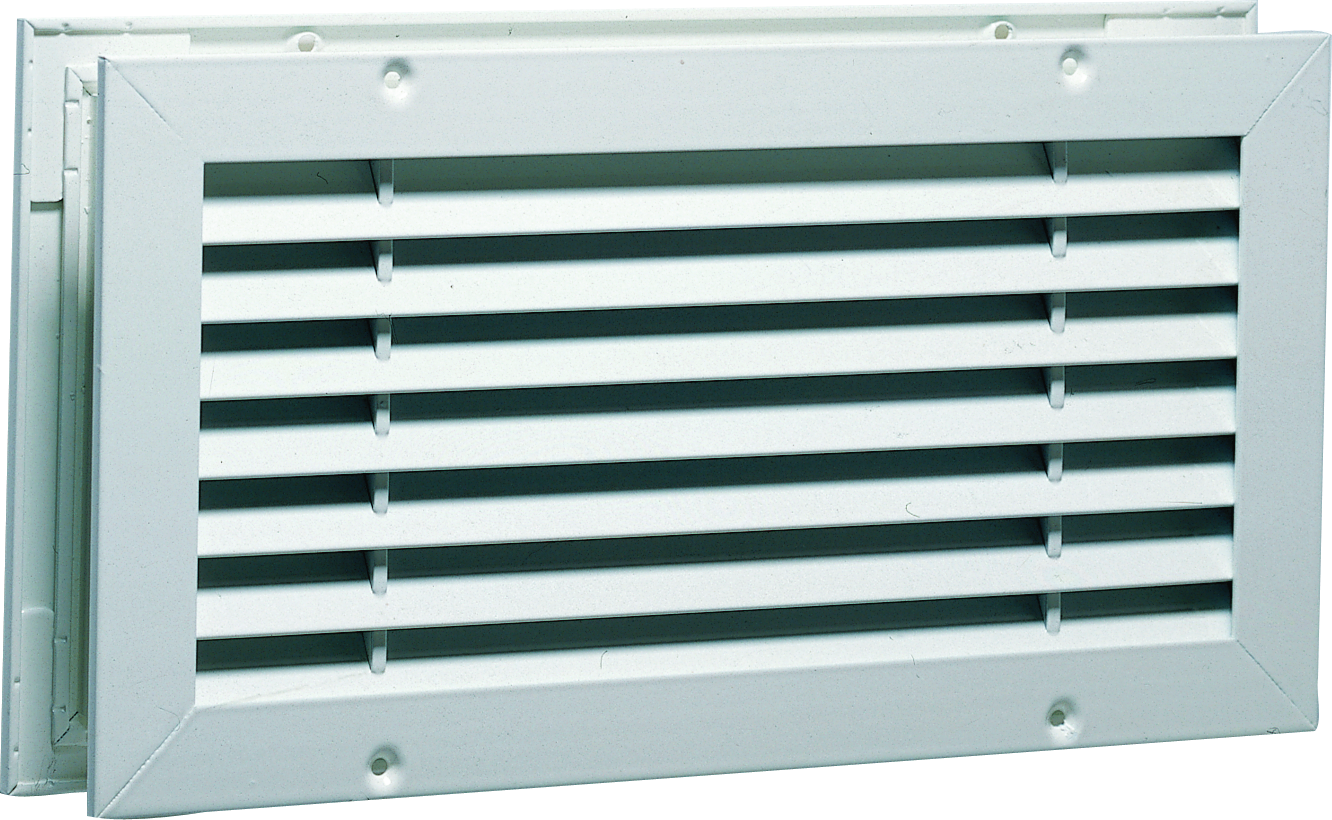

OSK is a transfer air grille designed for installation in air transfer openings between rooms. White powder-coated aluminum profile Suitable for walls/doors 30–50 mm thick This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Louver for duct installation (EC010351)
MaterialAluminium
Nominal duct width400 mm
Nominal duct height200 mm
ConnectionOther
Product codes
SAPAAN174
HPAC8813028
PLC8813028
GTIN/EAN6438313321378
Manufacturer part numberOSK-400-200
Vendor material number8813028
Basic information
Package measurements (L x W x H)420 x 220 x 35 mm
Package volume3.234 l
Package weight1.28 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101504
BrandFLÄKTGROUP
VendorFLÄKTGROUP / PÄÄTELAITTEET
The country of origin stated by the supplierFinland
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1609
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000506
