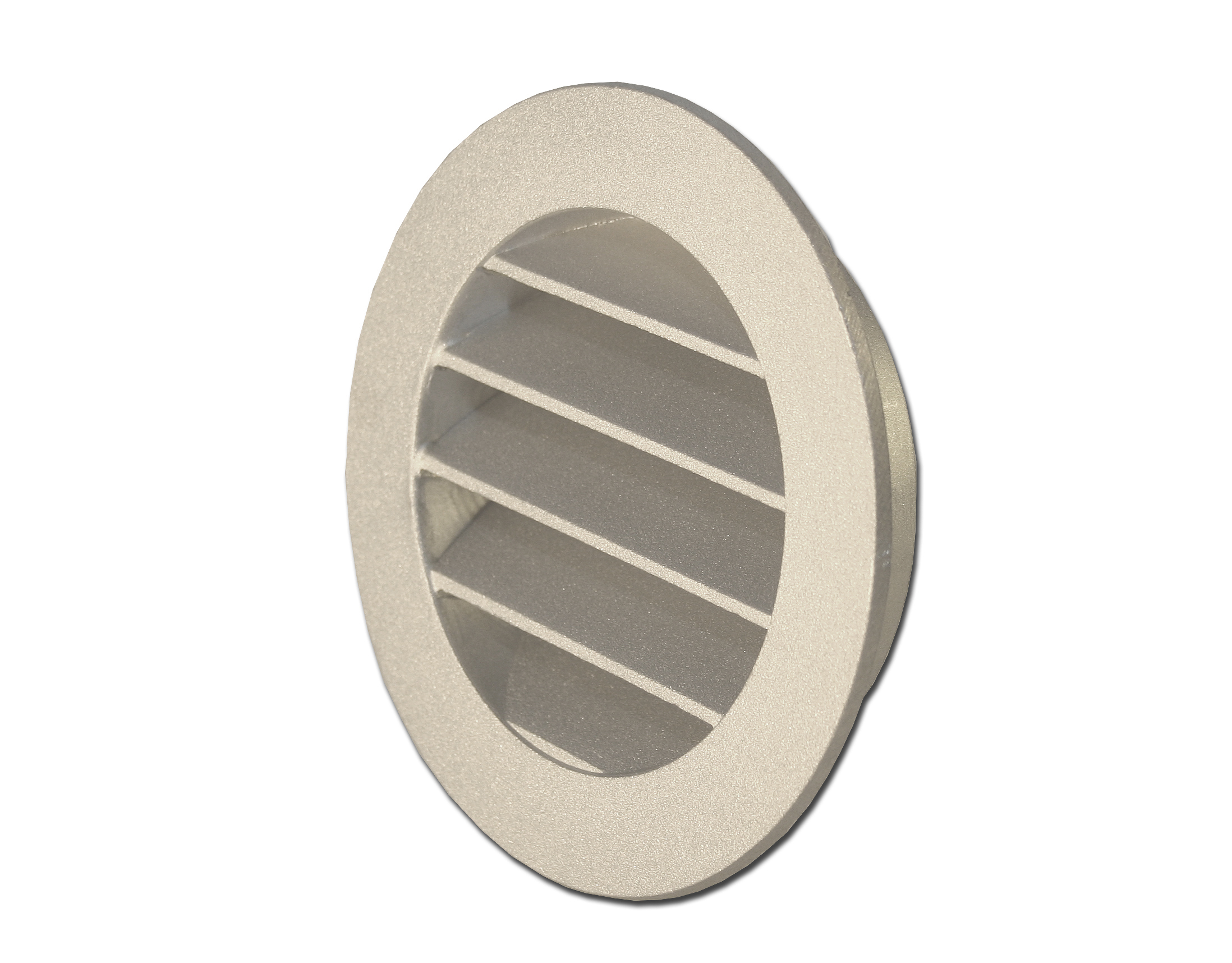

OUTDOOR AIR GRILLE US-AV 200
Product code
8814309
Used as a cover grille for intake and exhaust air openings. Durable construction suitable for all conditions. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Louver for duct installation (EC010351)
MaterialAluminium
Nominal duct diameter200 mm
Nominal duct width200 mm
ConnectionOther
Product codes
SAPAAG276
HPAC8814309
PLC8814309
GTIN/EAN6417461004036
Manufacturer part numberUSAV-200-IP
Vendor material number8814309
Basic information
Package measurements (L x W x H)245 x 230 x 25 mm
Package volume1.409 l
Package weight0.47 kg
Base uniteach
Package units1 / 20 / 120
Package contents–
UNSPSC40101505
BrandFLÄKTGROUP
VendorFLÄKTGROUP / PÄÄTELAITTEET
The country of origin stated by the supplierFinland
Documents (7)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0591
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000506
