AIR AND DIRT SEPARATOR FLAMCO CLEAN SMART S DN80 WELDED END

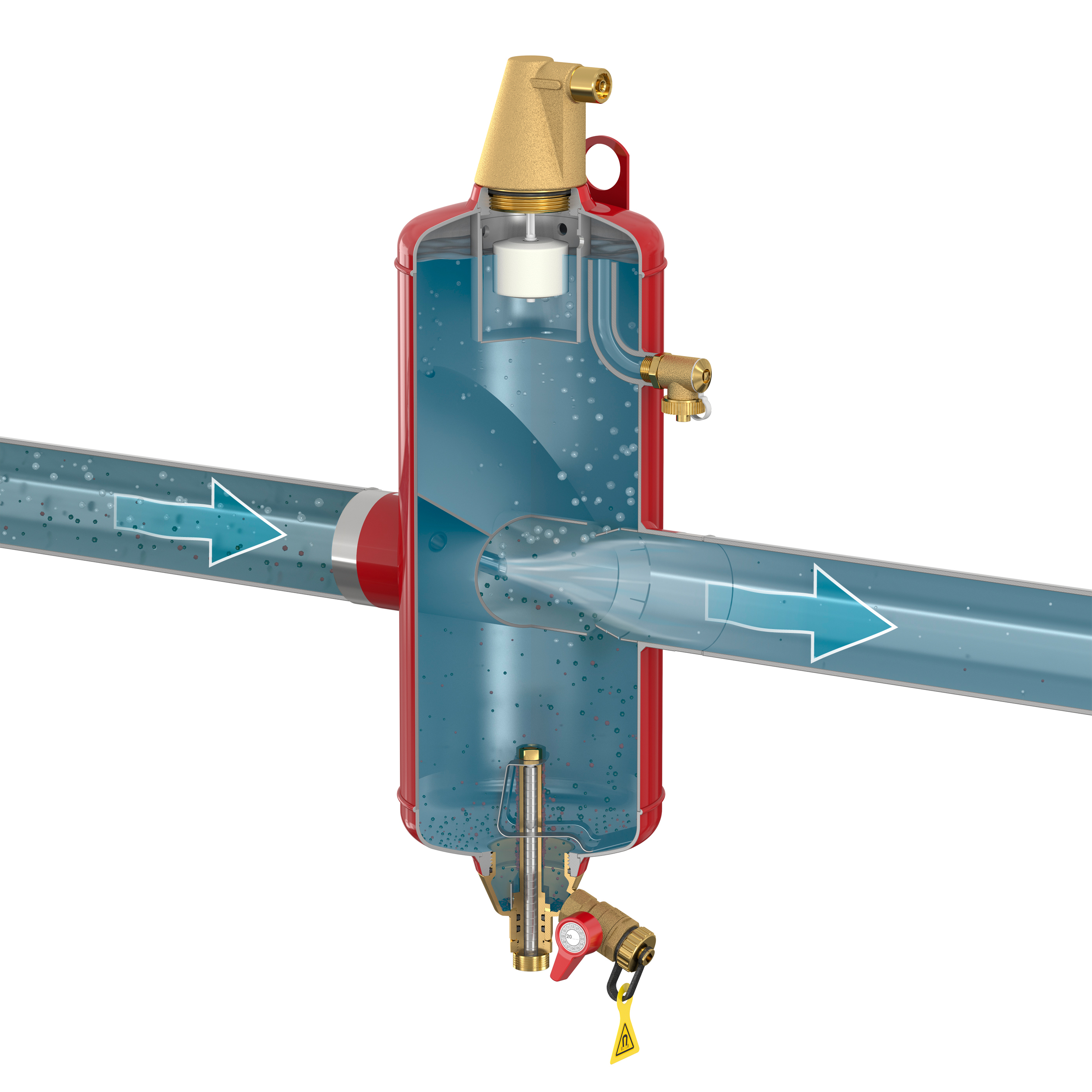

The Flamcovent Clean Smart air and dirt separator combines air and dirt removal in one unit. It efficiently removes microbubbles and even the smallest particles of dirt from the system water. Additionally, metal-containing fine particles and magnetite are removed from the system by means of a powerful internal magnet, standard in the dirt separator. The air and dirt separation efficiency of the Flamcovent Clean Smart in system water is up to 60% better than that of comparable combination separators operating with conventional technology. Thanks to the new technology, flow resistance has been reduced to almost negligible levels. An IsoPlus insulation accessory is available.

The Flamcovent Clean Smart air and dirt separator is nearly maintenance-free. The only required maintenance action is emptying or flushing the accumulated sludge through the bottom valve of the dirt separator. Hardened sludge can also be easily flushed out using the integrated sludge trap in the bottom valve. The dirt separator has no filters or other comparable replaceable parts.

Compatible with glycol-based cooling fluids up to a maximum of 50%. Complies with Pressure Equipment Directive 2014/68/EU.
