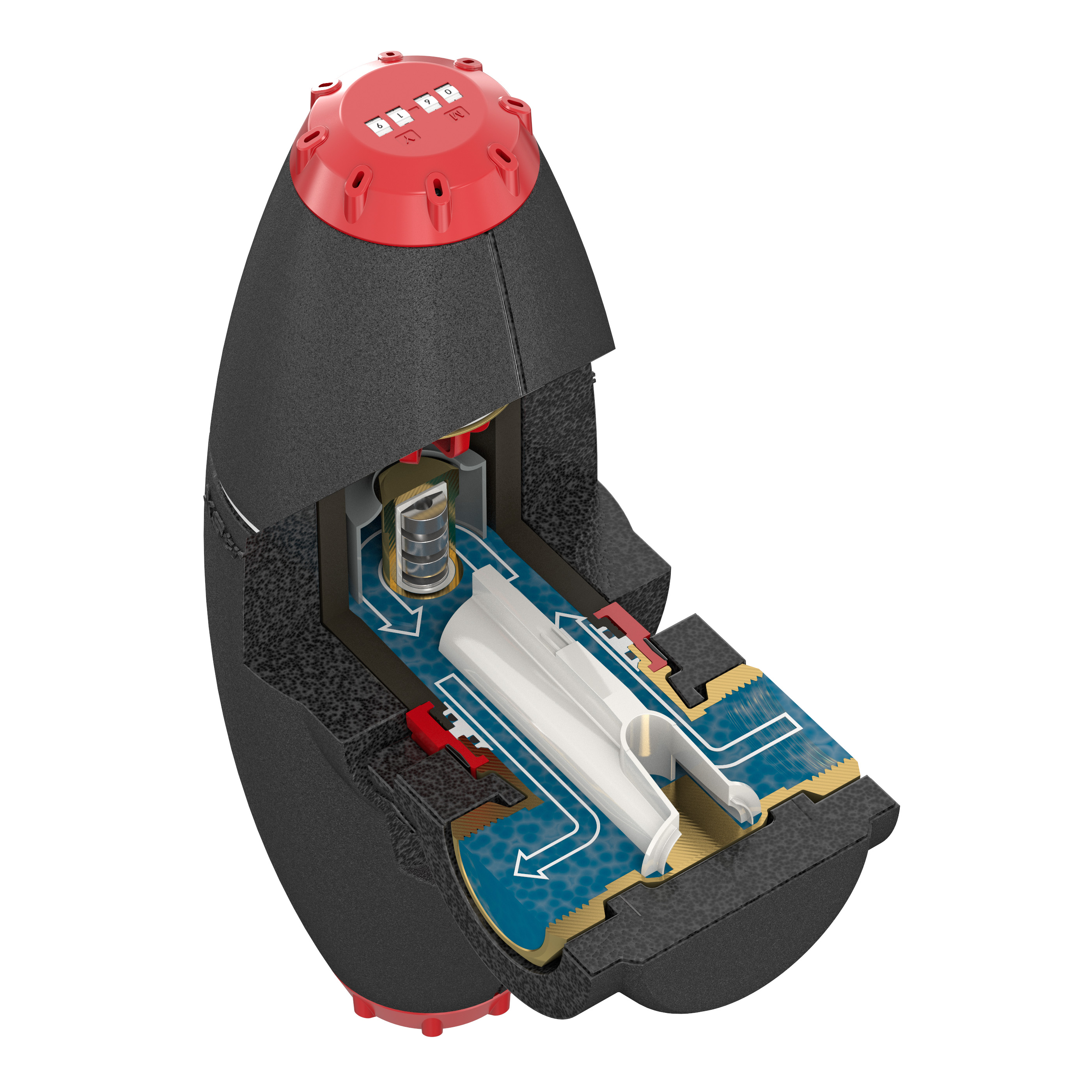

AIR AND DIRT SEPARATOR FLAMCO XSTREAM VENT-CLEAN (DN20) 1 M

XStream Vent-Clean is an efficient combined magnetic dirt and air separator for closed heating and cooling systems. It is excellently suited for use in low-temperature/heat pump systems as well. The product features a unique Eco/Max selector switch that allows you to choose whether the entire system flow is directed through the air and dirt separator. The Max function ensures efficient and rapid air and dirt separation. Alternatively, the switch can be turned to the Eco position, directing only a portion of the flow through the separator. The Eco function is an excellent maintenance method and also saves energy. A convenient, rotatable connection fitting enables installation in either vertical or horizontal orientation. XStream air and dirt separators always include an insulated housing as standard. Air and dirt separators protect various components of heating systems from damage caused by air and particulate contamination. Additionally, they enhance system efficiency and comfort. Air and dirt separators also provide significant benefits in older, long-operating systems. XStream air and dirt separators remove even the smallest microbubbles, dirt particles, and magnetic substances from the system water. They are nearly maintenance-free and offer negligible flow resistance. XStream Vent-Clean combined separators do not require filter replacements or similar tasks. The only maintenance procedure is a simple flush through the valve at the bottom of the dirt separator. After flushing out the accumulated sludge, the separator functions as if new. Materials: brass and high-quality plastic Minimum/maximum operating pressure: 0.2 bar / 6 bar Minimum/maximum operating temperature: -10 °C / 120 °C System minimum/maximum pressure: 0.2 bar / 10 bar Suitable for use with glycol-based cooling fluids up to a maximum of 50% This product description is an automated translation of the original Finnish description.
