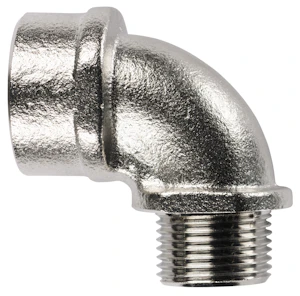

PROTECTIVE HOSE CONN. METAL BM90-50M
Product code
1118565
Protective hose coupling for Flexicon's metal FU and SSU protective hoses. The protective hose coupling is mechanically durable.
Features- material: nickel-plated brass
- operating temperature: -50 °C…+135 °C
- IP rating: IP40
- oil resistant
- mechanically durable
Product details
Technical specifications
Product class (ETIM)Screw connection for protective metal hose (EC001180)
Nominal diameter50 mm
Model90°-Bend
Construction typeExternal thread
Connection type to housingThread
Thread connection sizeM50 x 1.5
One-pieceyes
Housing materialBrass
Surface protectionNickel-plated
Product codes
SAPATF095
STK1118565
PLC1118565
GTIN/EAN5052446001313
Manufacturer part numberBM90-50M
Vendor material numberBM90-50M
Basic information
Package measurements (L x W x H)190 x 160 x 60 mm
Package volume1.824 l
Package weight0.562 kg
Base uniteach
Package units1
Package contents–
UNSPSC39131707
BrandFLEXICON
VendorVERGOKAN NV
