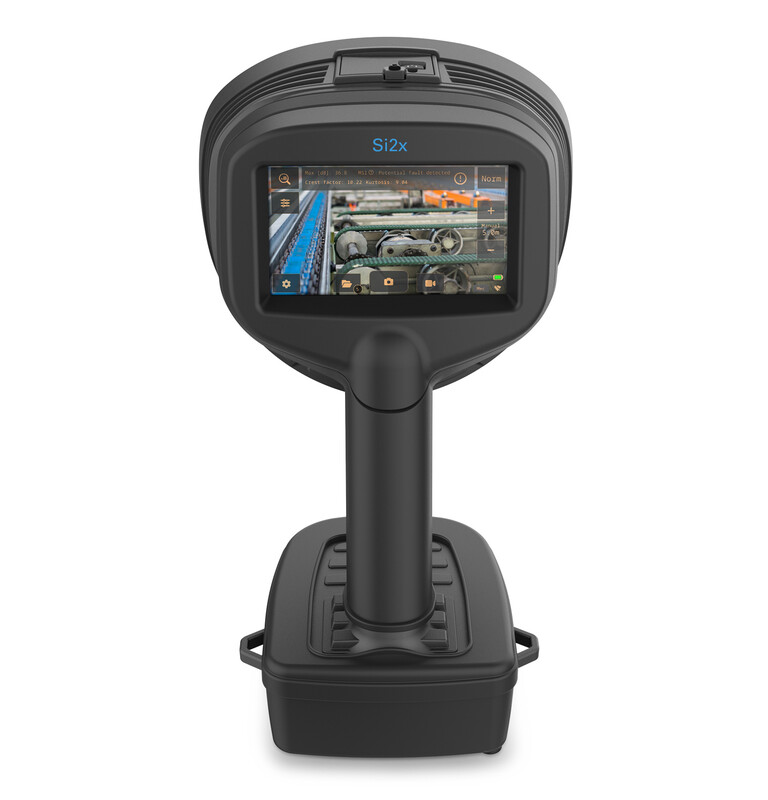

LEAK DETECTOR FLIR SI2X-PRO ACOUSTIC CAMERA

The FLIR Si2x-Pro Acoustic Camera, manufactured in Finland, is designed for detecting gas leaks, mechanical faults, and partial discharges in hazardous environments.

The FLIR Si2x-Pro™ Acoustic Camera is designed for use in hazardous, flammable gas, and explosive dust environments to easily reduce leaks of toxic or flammable gases, improving safety or reducing costs associated with compressed air or gas leaks. With advanced analysis tools, the Si2x-Pro also provides a solution for reducing costs related to mechanical bearing issues and partial discharges in electrical equipment. The camera is engineered for hazardous conditions and delivers class-leading performance and decision support to ensure optimal efficiency and safety.

The FLIR Si2x-LD Acoustic Camera is also available for detecting leaks and mechanical faults, without partial discharge detection capability.

Advanced leak and partial discharge detection

Detects, locates, and accurately measures compressed air and gas leaks as well as partial discharges. Identifies and quantifies both small and hard-to-detect issues up to 200 meters away, enhancing efficiency and ensuring safety. The camera also provides real-time information on the costs caused by detected leaks.

Mechanical fault analysis

Save on costly repairs, reduce downtime, and improve maintenance efficiency by identifying bearing and other mechanical component faults before they overheat or cause equipment damage.

Asset management features

Ensure optimal operation and maintenance of equipment in large-scale industrial environments through asset management, cloud-based data integration, and OTA software updates. Combine acoustic and thermal imaging into a single report.

Technical specifications

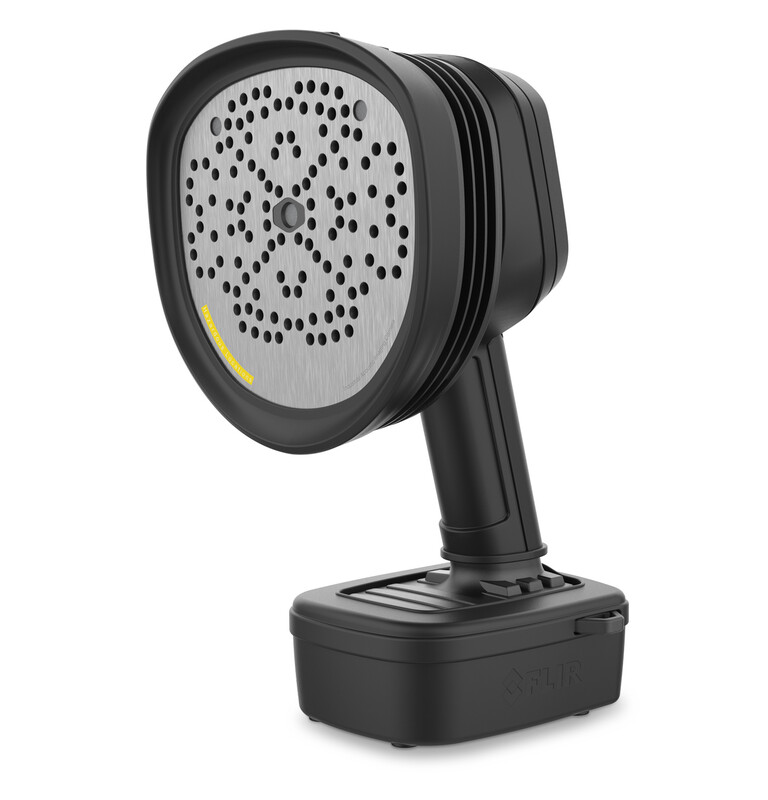

• Acoustic measurement: 124 MEMS microphones, real-time sound visualization
• Severity assessment: Automatic AI-based partial discharge severity assessment, including recommended actions within the camera
• Operating distance: 0.3 meters up to 200 meters
• Leak detection: 0.0032 l/min at 2.5 meters, 0.0044 l/min at 6 meters
• Wireless transmission: Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN
• Camera software update: Automatic OTA (Over The Air) update or via USB connection
• Field of view (FOV): 75° diagonal
• Video frame rate: Camera: 60 fps / Acoustic image: 30 fps / Display: 70 fps
• Video resolution: 1280 × 720
• Zoom: 8x digital zoom Measurement and analysis tools
• Frequency range: 2 - 130 kHz
• Detectable gases: Compressed air, nitrogen, ammonia, hydrogen, carbon dioxide, methane, helium, and argon
• Operating distance: 0.3 meters up to 200 meters
• Mechanical analysis: Mechanical Sound Indicator (MSI), sound pressure level (dB), crest factor, kurtosis
• Partial discharge severity assessment: Automatic AI-based partial discharge severity assessment, including recommended actions in real time on the camera display
• Display: 5", 1280 × 720 resistive touchscreen, TFT LCD, MIPI DSI
• Battery: 12 VDC, Rechargeable Li-Ion battery, battery life approx. 2.5 hours, charging time approx. 2 hours
• Charger: 19-26 V DC, 2.8 A, maximum output 17.4 V DC, 4.8 A
• Battery weight: approx. 0.25 kg
• Explosive environment: ATEX Zone 2 (gas) and Zone 22 (dust)
• Operating and storage humidity: 0-90% recommended
• Operating temperature range: –10°C…+50°C
• Protection rating: IP54
• Storage temperature range: –20°C…+70°C
• Camera dimensions: 184 × 276 × 167 mm
• Camera weight: approx. 1.2 kg
