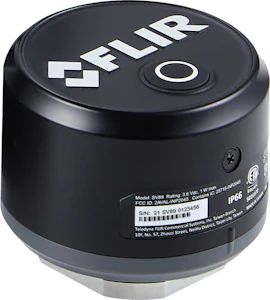

SENSOR FLIR FLIR SV89
Product code
6707559

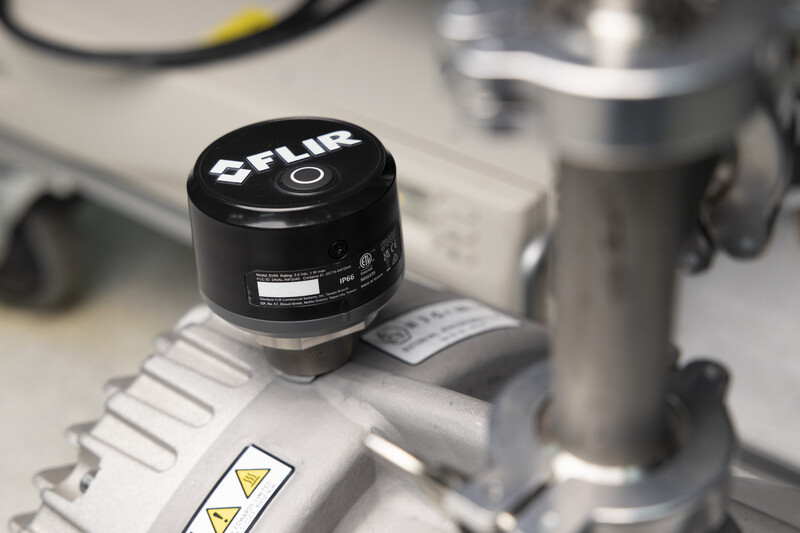

FLIR SV89™ is a vibration and temperature sensor. The wireless FLIR SV89 sensor enables the system to be expanded to monitor multiple targets simultaneously.
Features:- Sensitivity: ±50 g
- Frequency range: 10 Hz – 10 kHz
- Temperature range: -20°C...+80°C
- Measurements: Grms, Vrms (ISO10816), Peak value, Peak factor, Kurtosis, Skewness, standard deviation, FFT
Requires FLIR GW66 gateway to operate.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Vibration sensor (EC004309)
Type of fasteningScrewing
Wirelessyes
Wireless range50 m
Type of interfaceWi-Fi
Measuring range vibration frequency10 - 10000 Hz
Measuring range vibration acceleration (gravity g)-50 - 50
Temperature measurementyes
Temperature measuring range-20 - 80 °C
Measuring unit vibration velocity (RMS)mm/s
With machine vibration assessmentyes
Type of power supplyOther
Max. battery duration2 Year
Operating temperature-20 - 80 °C
Ex-classNone
For Ex-zone gasNone
Product codes
SAPDFY982
STK6707559
PLC6707559
GTIN/EAN793950438763
Manufacturer part numberSV89
Vendor material numberSV89
Basic information
Package measurements (L x W x H)95 x 72 x 71 mm
Package volume0.486 l
Package weight0.256 kg
Base uniteach
Package units1
Package contents–
UNSPSC41111930
BrandFLIR
VendorINFRADEX OY
