SOLAR PANEL TESTER FLIR PV48

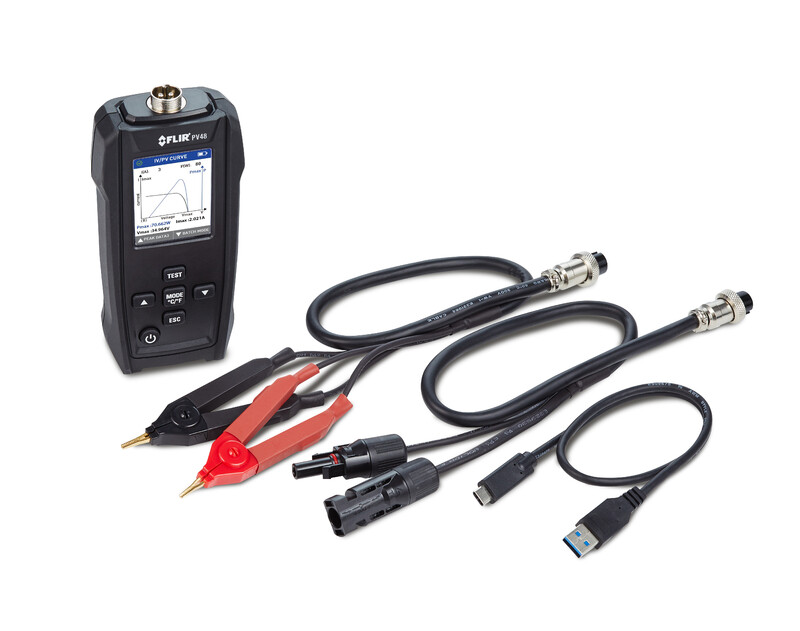

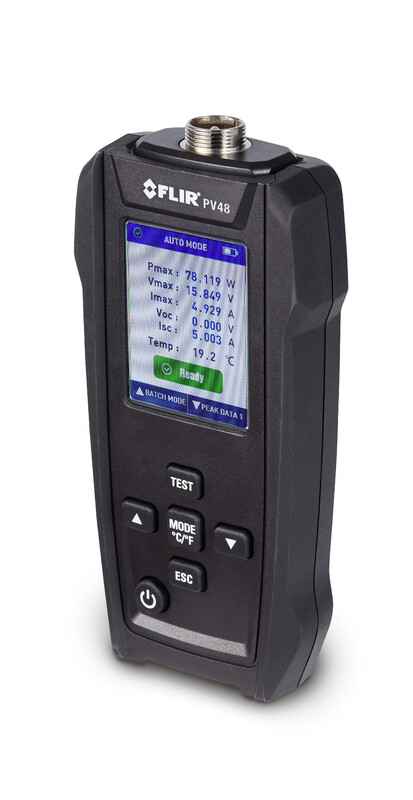

FLIR PV48 – Solar Panel Tester and I-V Curve Tracer with Temperature Measurement The FLIR PV48 is a compact and efficient I-V curve tracer that measures a solar panel’s maximum power, voltage, current, and temperature in real time. It enables installers and maintenance technicians to quickly verify panel performance and identify faults directly in the field. Key features: - I-V curve measurement and analysis: graphically displays the electrical performance of the solar panel (up to 800 W/panel). - Instantly measures maximum power (Pmax), voltage, current, open-circuit voltage (VOC), and short-circuit current (ISC). - Temperature measurement helps assess the impact of environmental conditions on power output. - Included MC4 PV connectors and alligator clips enable fast and safe connection to various panel models. - Clear, high-contrast TFT display is readable even in bright sunlight. - Li-ion battery provides long operating time without separate batteries. Technical specifications: - Pmax: 0–800 W ±5 % - Vmax / VOC: 0–60 V ±5 % / ±1 % - Imax / ISC: 0–30 A ±5 % / ±1 % - Temperature range: 0–60 °C ±3 °C - Measurement speed: 3 measurements/s - Power source: 3.7 V Li-ion battery (USB-C charging 5 V / 500 mA) - Operating temperature: -10...+50°C - Weight and dimensions: 206 g, 151.6 × 72.5 × 38 mm - Warranty: 3-year limited warranty Delivery contents: PV48 tester, Carrying case, CAT III 300 V MC4 PV connectors and alligator clips, 3.7 V Li-ion battery, User manual. The FLIR PV48 is designed for solar energy professionals who need an accurate and easy-to-use tool for evaluating the condition and performance of solar panels. Its graphical I-V curve analysis and integrated measurement functions make it a reliable solution for field testing, fault diagnosis, and quality control. This product description is an automated translation of the original Finnish description.
