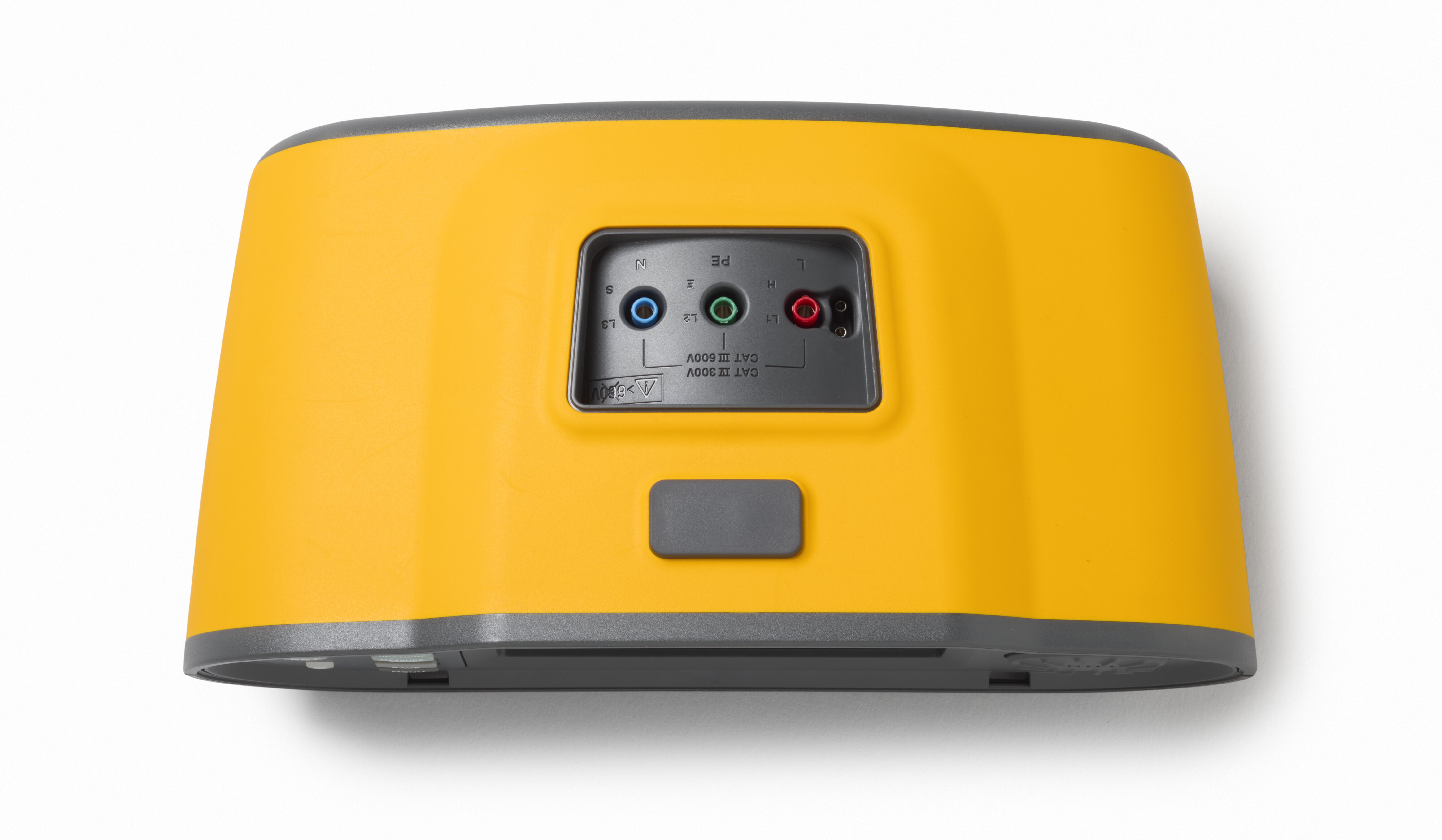

ELECTRICAL INSTAL.TESTER FLUKE 1674FC SCH + TRUTEST

Product code
6756343
The Fluke 1674FC installation tester equipped with TruTest software revolutionizes your workflow. Thanks to its ergonomic design, seamless user interface, integrated data management features, and comprehensive reporting software, the 1674 sets a new standard for integrated installation testing solutions. With the 1670 series installation testers, you can ensure the safety of electrical installations in residential, commercial, and industrial applications. It meets the requirements of the IEC 60364 standard and all relevant local IEC 61557 standards. Perform required tests up to 30% faster and spend up to 50% less time on documentation, while being confident that the data you collect is reliable. The Fluke 1670 series installation testers simplify installation and test preparation with an intuitive interface and a color touchscreen. Additionally, users can enter location information and define test routes directly from the tester, a mobile device, or a computer, and edit data directly on the tester during testing to ensure data accuracy. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Multifunction installation tester (EC000497)
IndicationGraphic
Limit value indicationyes
Isolation resistance measurementyes
Isolation resistance measurement with ramp functionyes
Resistances of isolating floors and wallsno
Overvoltage protector testingyes
Low resistance measurementyes
Low resistance measurement with ramp functionno
Earthing measurementyes
Selective earthing measurementno
Earth loop measurementyes
Specific earthing measurementno
Loop resistance/impedance measurementyes
Loop measurement without RCD/FI releaseyes
Mains internal resistance measurementyes

Product codes

SAPDFO927
STK6756343
PLC6756343
GTIN/EAN195112119631
Manufacturer part number5581087
Vendor material number5581087

Basic information

Package measurements (L x W x H)450 x 255 x 340 mm
Package volume39.015 l
Package weight6 kg
Base uniteach
Package units1
Package contents
UNSPSC41111917
BrandFLUKE
VendorFLUKE FINLAND OY

Environment and safety

Manufacturer

NameFluke Corporation
Postal addressTeknobulevardi 3-5, 01530 Vantaa
