MULTIMETER FLUKE 113
Product code
6751893

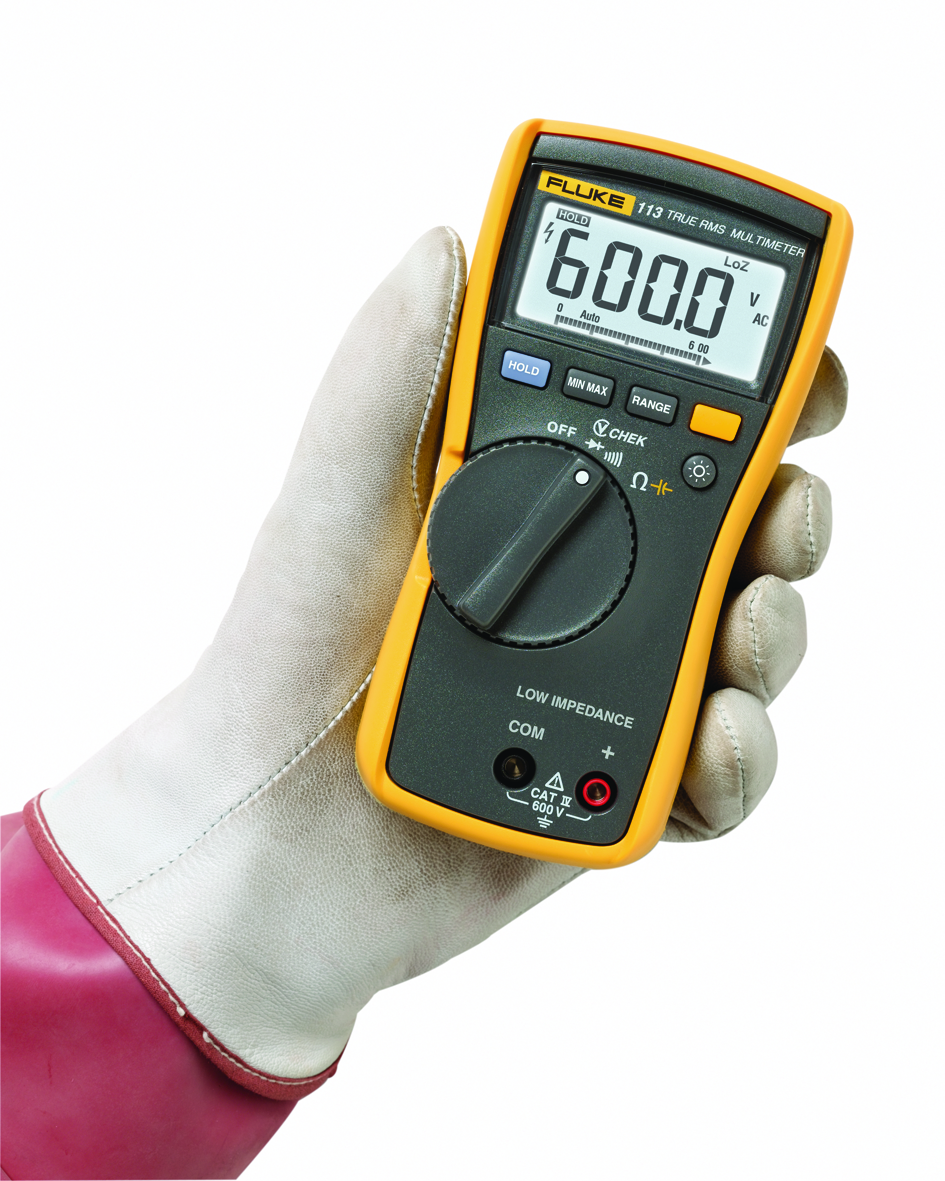

With the digital Fluke 113 multimeter, users can quickly and easily perform basic measurement and continuity tests. The meter is easy to use, and its features enable you to troubleshoot most electrical problems. The Fluke VCHEK™ LoZ is a low input impedance measurement function that allows users to simultaneously measure voltage or continuity. Low input impedance LoZ measurements also prevent ghost voltages caused by nearby wires. *Note that low input impedance LoZ measurements introduce a small load into a circuit protected by a ground fault interrupter, which may cause the ground fault interrupter to trip. The min/max function records signal fluctuations. The Fluke 113 performs diode tests and offers both automatic and manual range selection. The meter complies with the latest safety standards and features backlighting and a larger, easy-to-read display. Thanks to its versatile functions, this meter is an essential addition to any tool kit.
Key features
- VCHEK™ LoZ function for measuring voltage or continuity with low input impedance*
- True-RMS for accurate AC measurements on nonlinear loads
- Large backlit display facilitates work in poorly lit areas
- Signal fluctuation recording with min/max function
- Diode testing for common germanium, silicon, and power diodes
- Rugged case with built-in test lead holder
- Automatic and manual range selection enhances ease of use
- CAT III 600 V and CAT IV 300 V rating ensures operational safety
- Optional TPAK magnetic hanger for added convenience with hands-free operation This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Multimeter (EC000069)
IndicationAnalogue/digital
Multiple displayno
Measuring range selectionManual
Max. voltage measuring range AC600 V
Lowest resolution, AC voltage1 mV
Max. voltage measuring range DC600 V
Lowest resolution, DC voltage1 mV
Max. current measuring range, AC10 A
Lowest resolution, AC current10 µA
Max. current measuring range, DC10 A
Lowest resolution, DC current100 µA
Max. resistance measuring range0.6 MOhm
Milliohm measurement with 4 wire technique (Kelvin connection)no
Lowest resolution, resistance0.1 Ohm
Temperature measurement RTDno
Product codes
SAPAET774
STK6751893
PLC6751893
GTIN/EAN095969434522
Manufacturer part number3088053
Vendor material number3088053
Basic information
Package measurements (L x W x H)270 x 160 x 100 mm
Package volume4.32 l
Package weight0.756 kg
Base uniteach
Package units1
Package contents–
UNSPSC41111917
BrandFLUKE
VendorFLUKE FINLAND OY
Documents (5)
Brochures & documents
Links
Environment and safety
Manufacturer
NameFluke Corporation
Websitehttps://www.fluke.com/fi-fi
Postal addressTeknobulevardi 3-5, 01530 Vantaa
