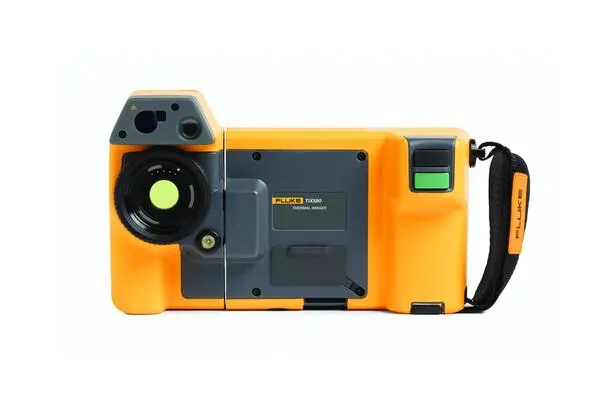

THERMAL CAMERA FLUKE FLK-TIX580 9HZ

Product code
CKI301

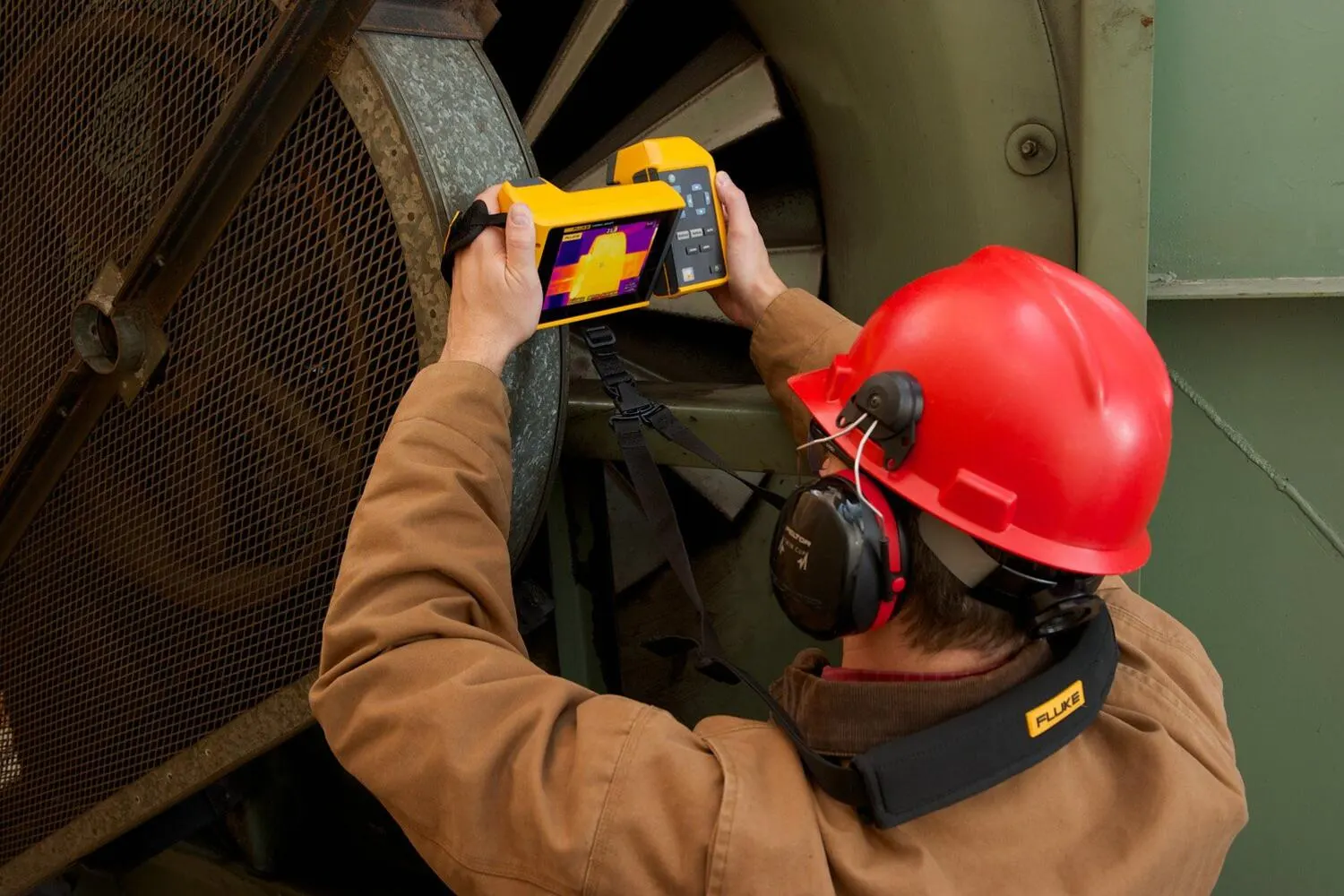

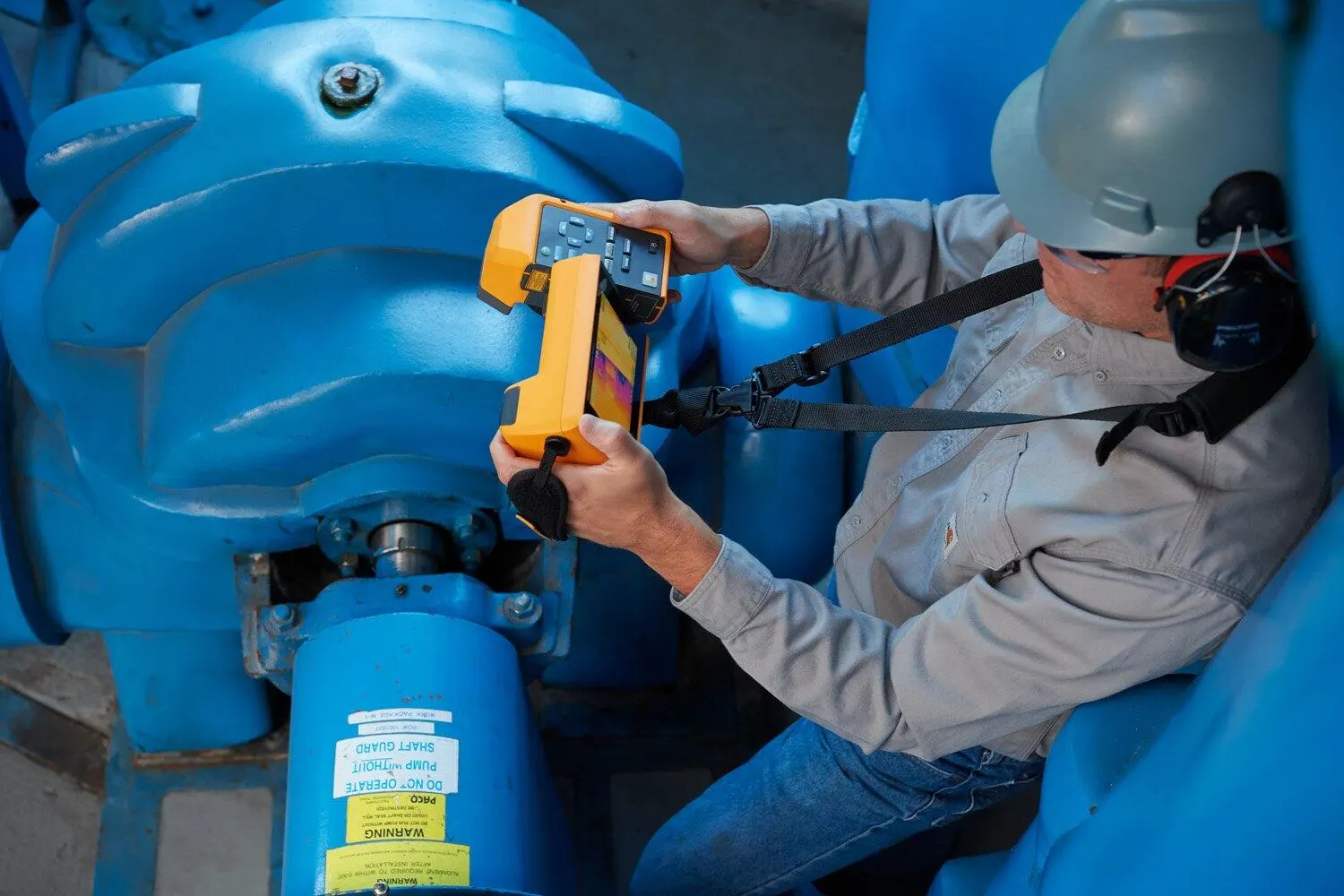

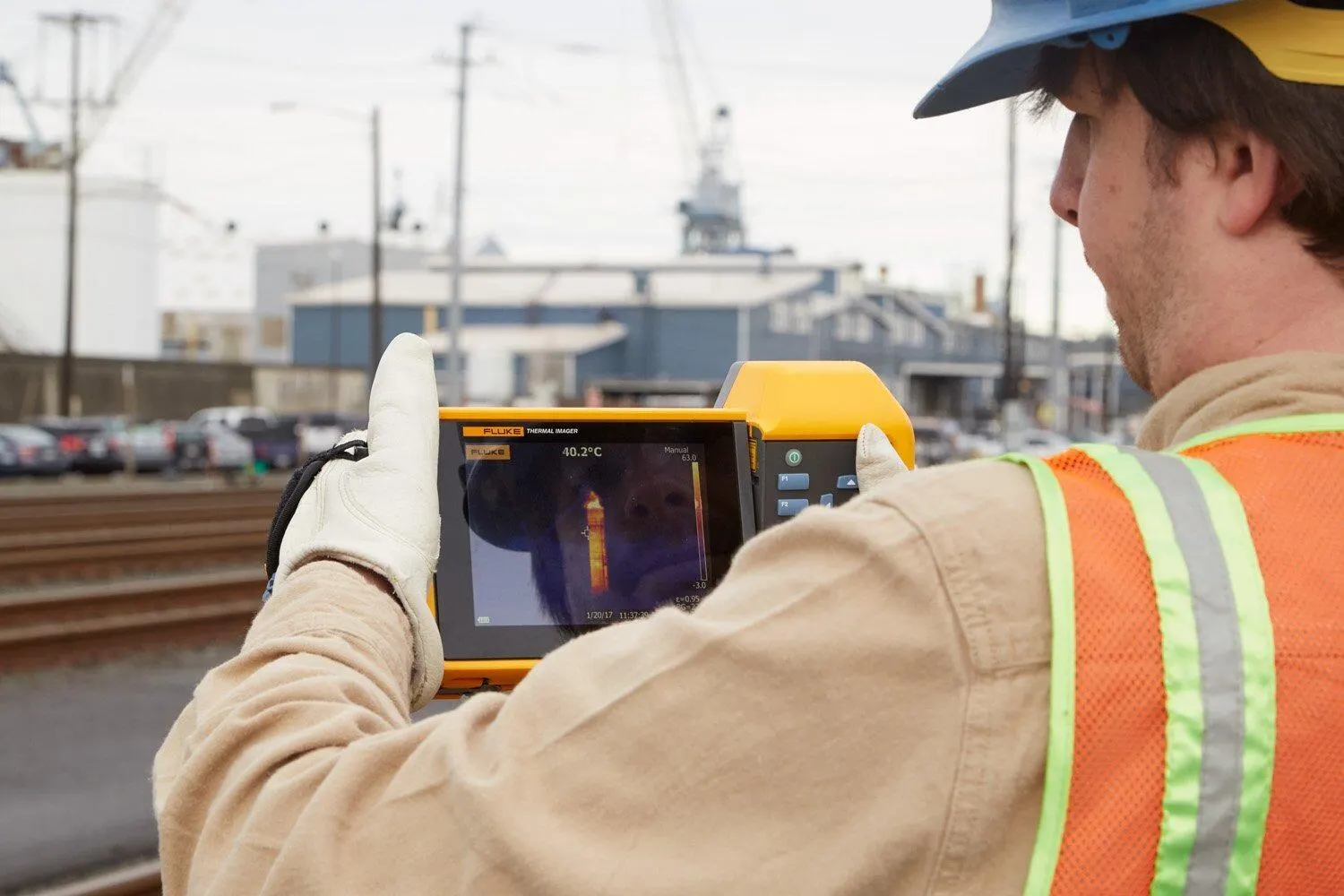

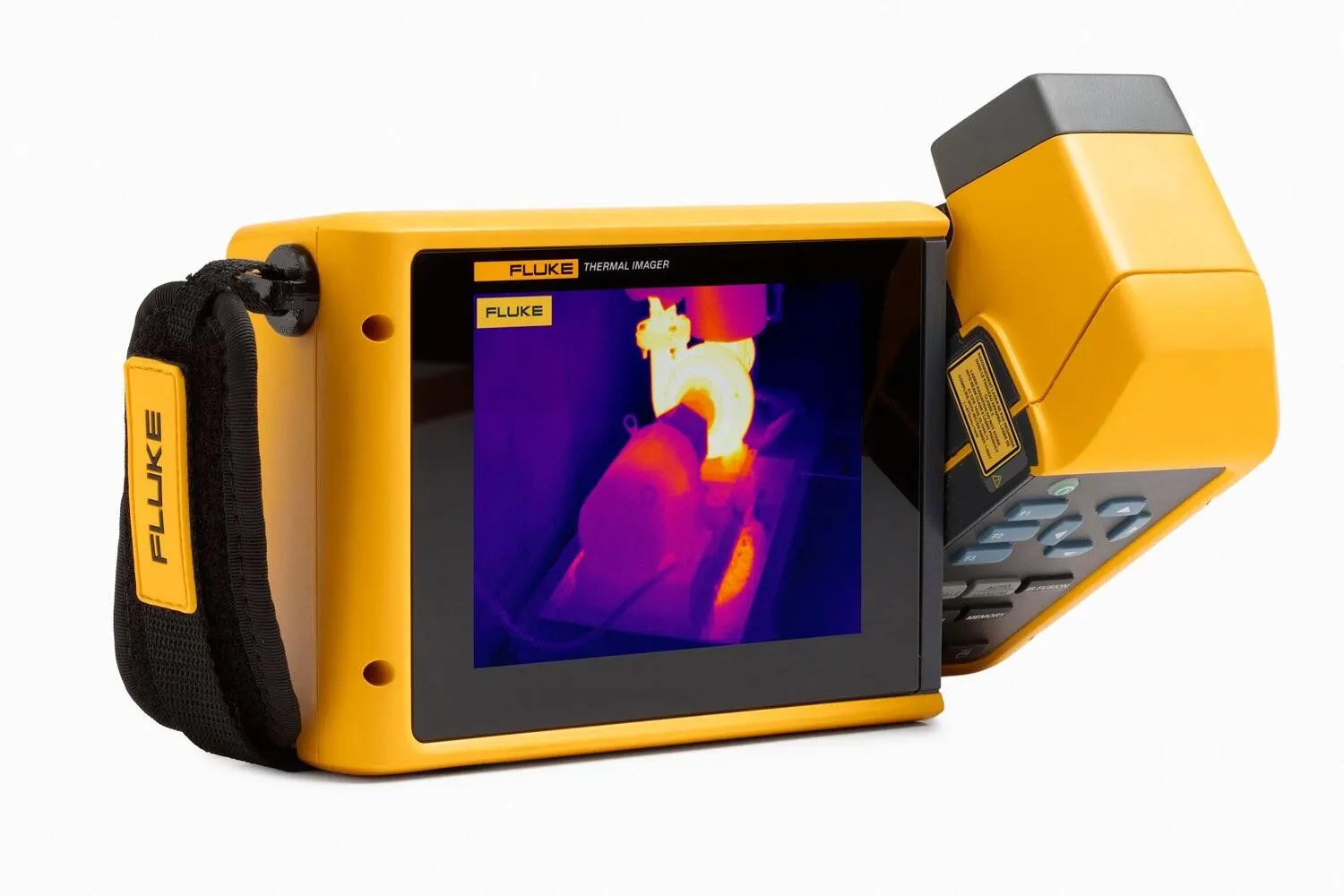

View data directly from the device: in research and product development laboratories in production outside the facility, at remote locations on transmission and distribution lines (electrical substations) Daily tasks can expose the thermal camera to various environments and challenges, from quality assurance to predictive maintenance and outdoor inspections. Every thermal image is unique, and the camera captures high-quality images whether the target is small and close or large and distant above. The ergonomic design and neck strap make long shooting days easier. When using the thermal camera outdoors, you can easily adjust the screen viewing angle to reduce reflections. Additionally, the touchscreen ensures an excellent viewing experience in the field. The TiX580 is designed to adapt to your environment. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Thermal camera (EC003530)
Display diagonal5.7 inch
With touch screenyes
Thermal imageyes
Visual imageyes
Thermal-/visual image (in one image)yes
Video recordingyes
Frames per second (fps)9
Thermal sensitivity at 30 °C0.05 °C
Temperature measuring range-20 - 850 °C
Relative measurement accuracy2 %
Wave band7.5 - 14 µm
Field of view (FOV) horizontal24 °
Field of view (FOV) vertical24 °
Instantaneous field of view (IFOV)0.93 m rad
Auto focusyes

Product codes

SAPCKI301
STKCKI301
PLCCKI301
GTIN/EAN095969835169
Manufacturer part number4841945
Vendor material number4841945

Basic information

Package measurements (L x W x H)322.5 x 188.9 x 473.1 mm
Package volume28.821 l
Package weight6.54 kg
Base uniteach
Package units1
Package contents
UNSPSC41111917
BrandFLUKE
VendorFLUKE FINLAND OY

Documents (0)

Environment and safety

Manufacturer

NameFluke Corporation
Postal addressTeknobulevardi 3-5, 01530 Vantaa
