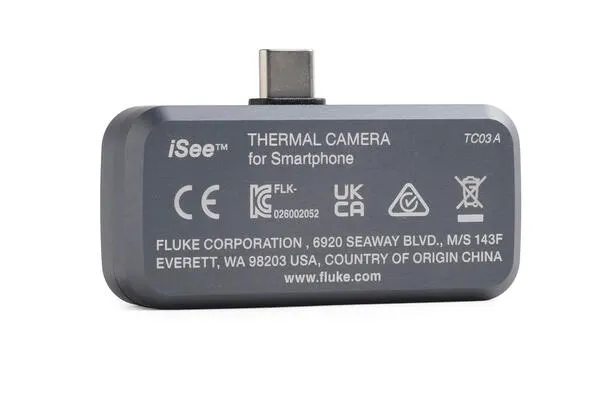

THERMAL CAMERA FLUKE FLUKE-TC03A PRO 50HZ
Product code
6756428
No product description available.
Product details
Technical specifications
Product class (ETIM)Thermal camera (EC003530)
Sensor resolution (horizontal)384 px
Sensor resolution (vertical)288 px
With touch screenno
Thermal imageyes
Visual imageno
Thermal-/visual image (in one image)no
Video recordingno
Frames per second (fps)50
Thermal sensitivity at 30 °C0.045 °C
Temperature measuring range-20 - 550 °C
Relative measurement accuracy2 %
Wave band8 - 14 µm
Field of view (FOV) horizontal25 °
Field of view (FOV) vertical19 °
Instantaneous field of view (IFOV)1.14 m rad
Product codes
SAPDUB210
STK6756428
PLC6756428
GTIN/EAN195112157404
Manufacturer part number6125550
Vendor material number6125550
Basic information
Package measurements (L x W x H)107 x 91 x 48 mm
Package volume0.467 l
Package weight0.15 kg
Base uniteach
Package units1
Package contents–
UNSPSC41111917
BrandFLUKE
VendorFLUKE FINLAND OY
