THERMAL CAMERA FLUKE TC01A 9HZ ANDROID
Product code
6756357

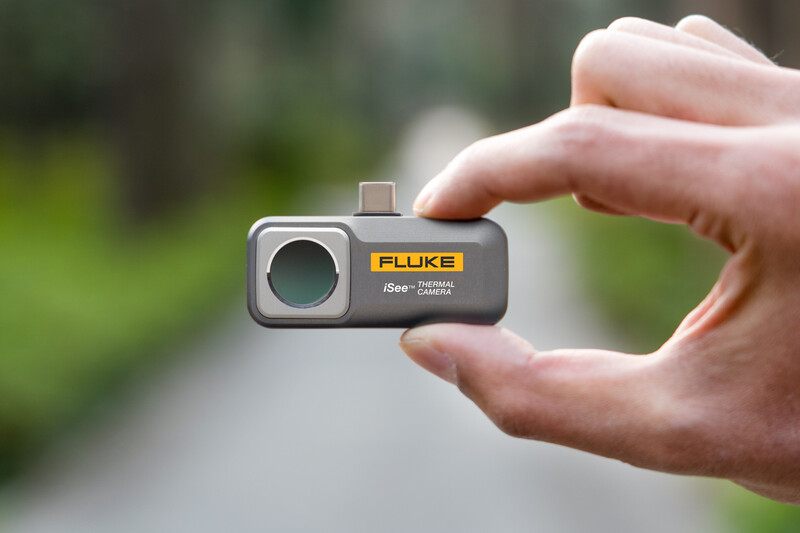

Thanks to its wide temperature range up to 550°C, the Fluke iSee Mobile thermal camera (for Android smartphones) is suitable for various applications such as inspecting electrical panels, identifying HVAC issues, and installing underfloor heating. The professional-grade image quality of the Fluke iSee camera is comparable to high-end thermal cameras with a thermal resolution of 256 x 192 pixels. In addition, the software provides comprehensive point, line, and area temperature analysis for precise diagnostics. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Thermal camera (EC003530)
Sensor resolution (horizontal)256 px
Sensor resolution (vertical)192 px
With touch screenno
Thermal imageyes
Visual imageno
Thermal-/visual image (in one image)no
Video recordingno
Frames per second (fps)25
Thermal sensitivity at 30 °C0.05 °C
Temperature measuring range-10 - 550 °C
Relative measurement accuracy2 %
Wave band8 - 14 µm
Field of view (FOV) horizontal56 °
Field of view (FOV) vertical42 °
Instantaneous field of view (IFOV)3.81 m rad
Product codes
SAPDFZ022
STK6756357
PLC6756357
GTIN/EAN195112129005
Manufacturer part number6016119
Vendor material number6016119
Basic information
Package measurements (L x W x H)93 x 93 x 30 mm
Package volume0.259 l
Package weight0.08 kg
Base uniteach
Package units1
Package contents–
UNSPSC41111917
BrandFLUKE
VendorFLUKE FINLAND OY
Documents (3)
Environment and safety
Manufacturer
NameFluke Corporation
Websitehttps://www.fluke.com/fi-fi
Postal addressTeknobulevardi 3-5, 01530 Vantaa
