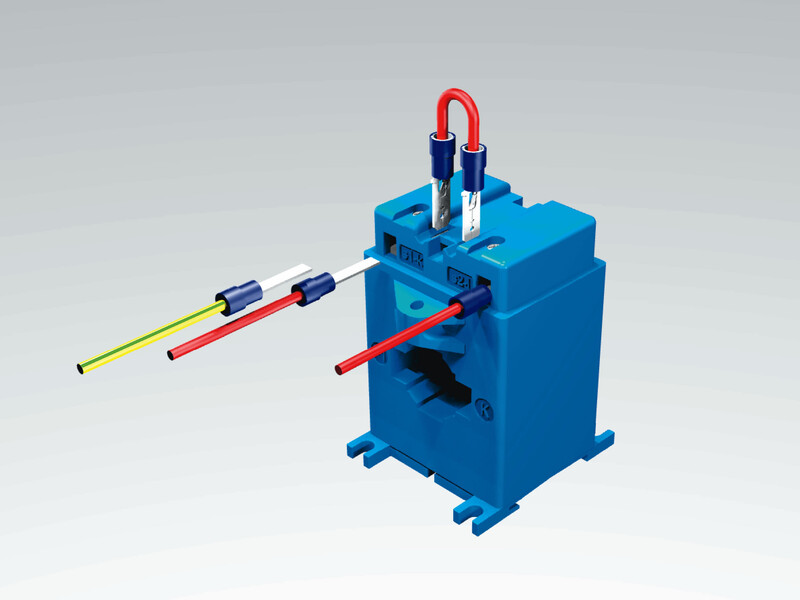

CURRENT TRANSFORMER TAC017 Ø17 100/1 2VA cl0.5
Product code
6784913
Using current transformers, you can seamlessly integrate meters and monitoring relays designed for current, power, and energy measurements and monitoring into high-current electrical installations. In addition to basic current transformers suitable for back-of-panel measurements, our extensive product range also offers class 0.2s current transformers suitable for electrical equipment measurements. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Current transformer (EC002048)
ModelSingle-phase current converter
Rated primary current100 A
Rated secondary current1 A
Rated secondary apparent power2 VA
Power consumption2 W
Accuracy class0.5
Overcurrent limiting factorFS 5
With contact protectionno
Opening diameter17 mm

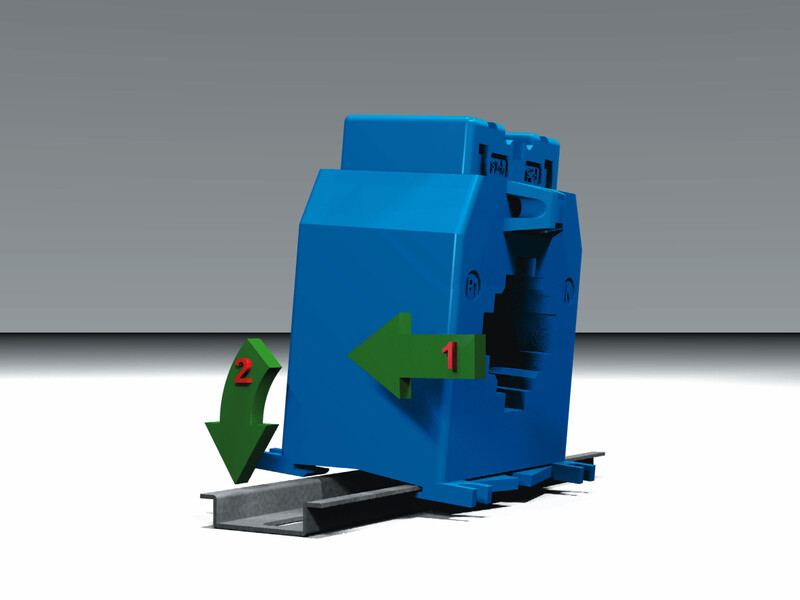

Snap mountingyes
With copper railno
Secondary connectionScrew connection
Number of primary inputs1
Product codes
SAPAMZ047
STK6784913
PLC6784913
GTIN/EAN6410067849131
Manufacturer part numberTAC017100X01
Vendor material number6784913
Basic information
Package measurements (L x W x H)65 x 60 x 85 mm
Package volume0.332 l
Package weight0.35 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121003
BrandFRER
VendorUTU OY
