CURRENT TRANSFORMER TAC022 Ø22 80/5 2VA cl1
Product code
6784939
Using current transformers, you can seamlessly integrate meters and monitoring relays designed for current, power, and energy measurements and monitoring into high-current electrical installations. In addition to basic current transformers suitable for back-of-panel measurements, our extensive product range also offers class 0.2s current transformers suitable for electrical equipment measurements. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Current transformer (EC002048)
ModelSingle-phase current converter
Rated primary current80 A
Rated secondary current5 A
Rated secondary apparent power2 VA
Overcurrent limiting factorFS 5
With contact protectionno

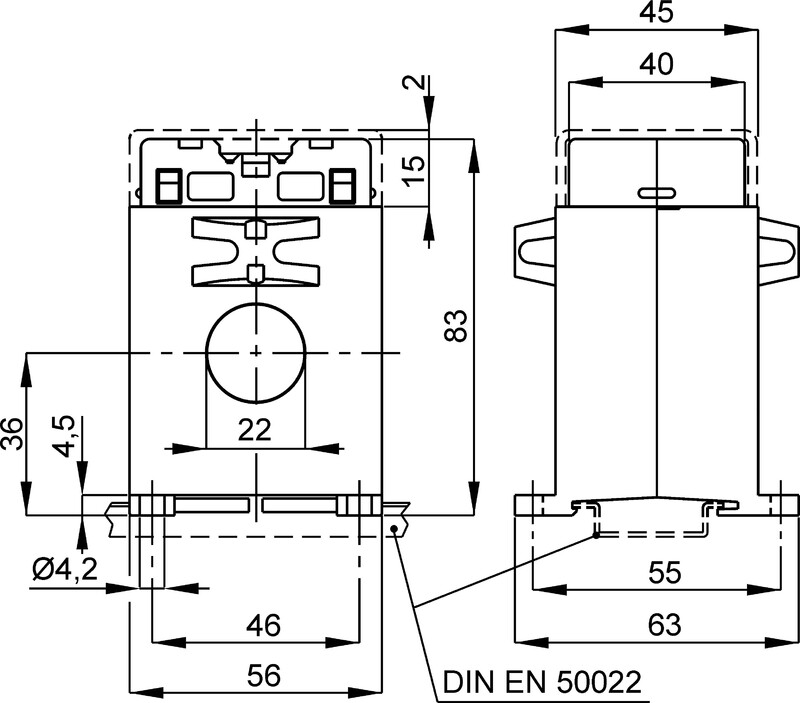

Opening diameter22 mm

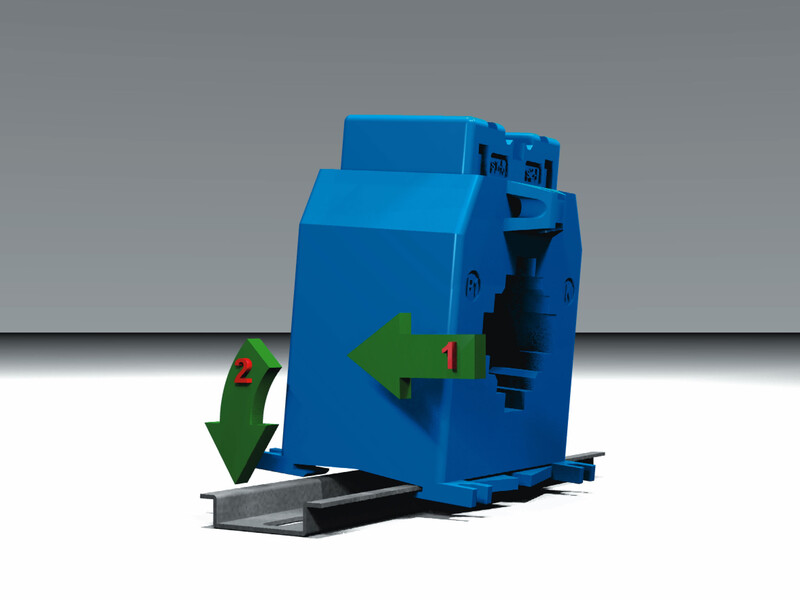

Snap mountingyes
With copper railno
Secondary connectionScrew connection
Number of primary inputs1
Product codes
SAPAMZ073
STK6784939
PLC6784939
GTIN/EAN6410067849391
Manufacturer part numberTAC022080X05
Vendor material number6784939
Basic information
Package measurements (L x W x H)65 x 60 x 85 mm
Package volume0.332 l
Package weight0.3 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121003
BrandFRER
VendorUTU OY
