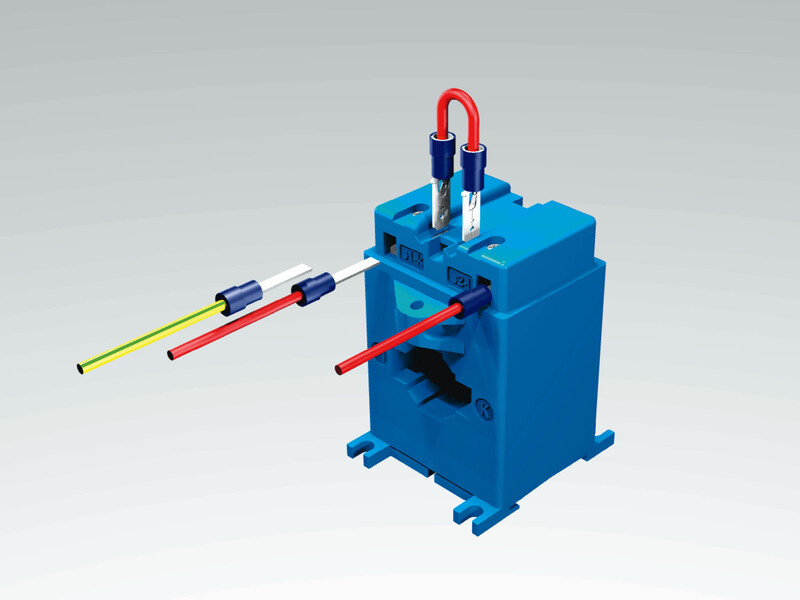

CURRENT TRANSFORMER TAC032 Ø24 120/1 2VA cl0.5
Product code
6785000
Using current transformers, you can seamlessly integrate meters and monitoring relays designed for current, power, and energy measurements and monitoring into high-current electrical installations. In addition to basic current transformers suitable for back-of-panel measurements, our extensive product range also offers class 0.2s current transformers suitable for electrical equipment measurements. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Current transformer (EC002048)
ModelSingle-phase current converter
Rated primary current120 A
Rated secondary current1 A
Rated secondary apparent power2 VA
Accuracy class1
With contact protectionno
Opening diameter24 mm

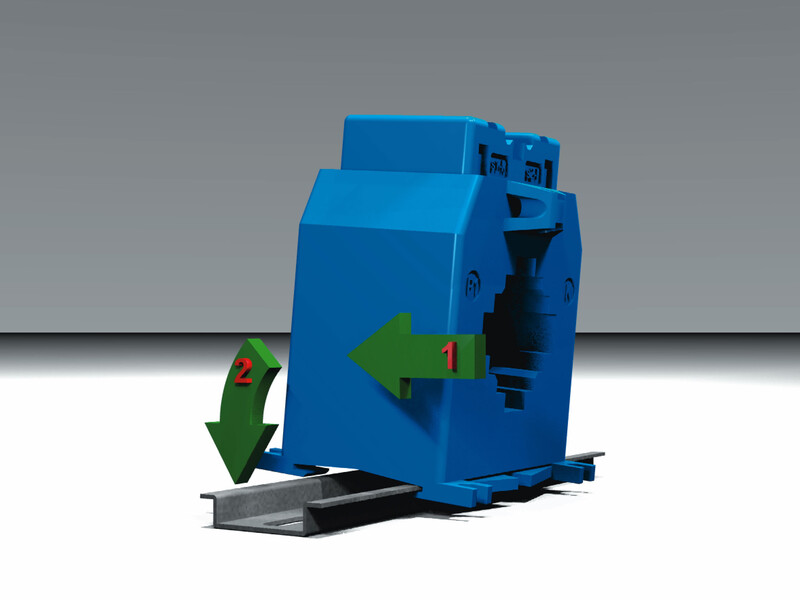

Snap mountingyes
With copper railno
Secondary connectionScrew connection
Number of primary inputs1
Product codes
SAPAMZ134
STK6785000
PLC6785000
GTIN/EAN6410067850007
Manufacturer part numberTAC032120X01
Vendor material number6785000
Basic information
Package measurements (L x W x H)65 x 60 x 85 mm
Package volume0.332 l
Package weight0.3 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121003
BrandFRER
VendorUTU OY
