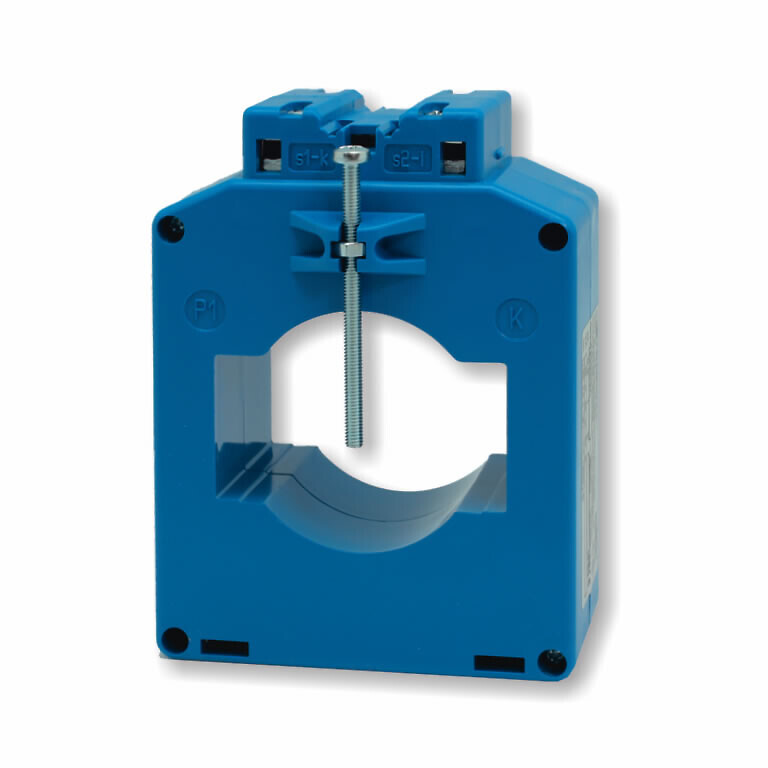

CURRENT TRANSFORMER TAT061 Ø51 400/5 2VA cl0.5

Product code
6785096
Using current transformers, you can seamlessly integrate meters and monitoring relays designed for current, power, and energy measurements and monitoring into high-current electrical installations. In addition to basic current transformers suitable for back-of-panel measurements, our extensive product range also offers class 0.2s current transformers suitable for electrical equipment measurements. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Current transformer (EC002048)
ModelSingle-phase current converter
Rated primary current400 A
Rated secondary current5 A
Rated secondary apparent power2 VA
Accuracy class0.5
With contact protectionno

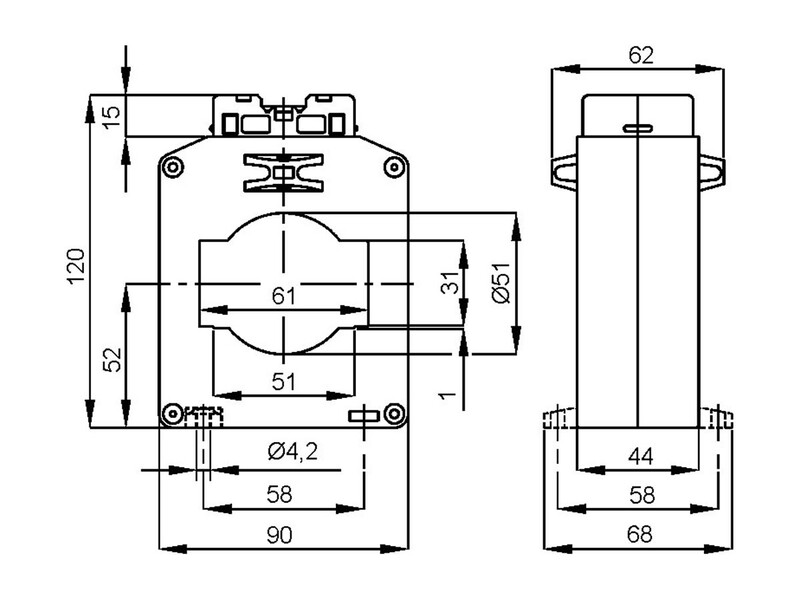

Opening diameter51 mm
Snap mountingyes
With copper railno
Secondary connectionScrew connection
Number of primary inputs1

Product codes

SAPAMZ230
STK6785096
PLC6785096
GTIN/EAN6410067850960
Manufacturer part numberTAT061400X05
Vendor material number6785096

Basic information

Package measurements (L x W x H)70 x 90 x 120 mm
Package volume0.756 l
Package weight0.7 kg
Base uniteach
Package units1
Package contents
UNSPSC39121003
BrandFRER
VendorUTU OY

Environment and safety

Manufacturer

NameUTU Oy
Postal addressAhjontie 1, 28400 Ulvila
