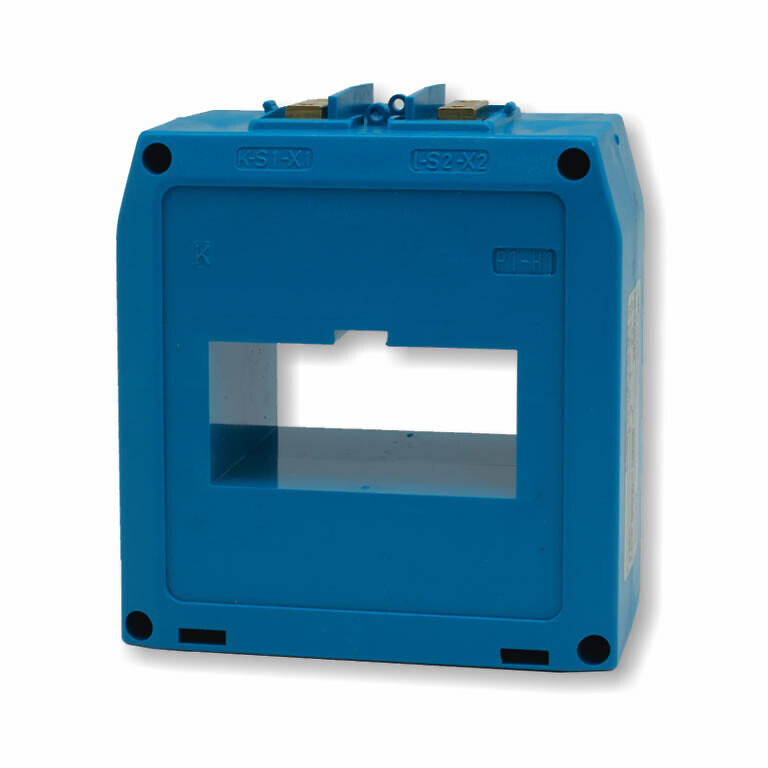

CURRENT TRANSFORMER TAT063 31x64 400/5 4VA cl0.5

Product code
6785162
Using current transformers, you can seamlessly integrate meters and monitoring relays designed for current, power, and energy measurements and monitoring into high-current electrical installations. In addition to basic current transformers suitable for back-of-panel measurements, our extensive product range also offers class 0.2s current transformers suitable for electrical equipment measurements. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Current transformer (EC002048)
ModelSingle-phase current converter
Rated primary current400 A
Rated secondary current5 A
Rated secondary apparent power4 VA
Accuracy class0.5
With contact protectionno

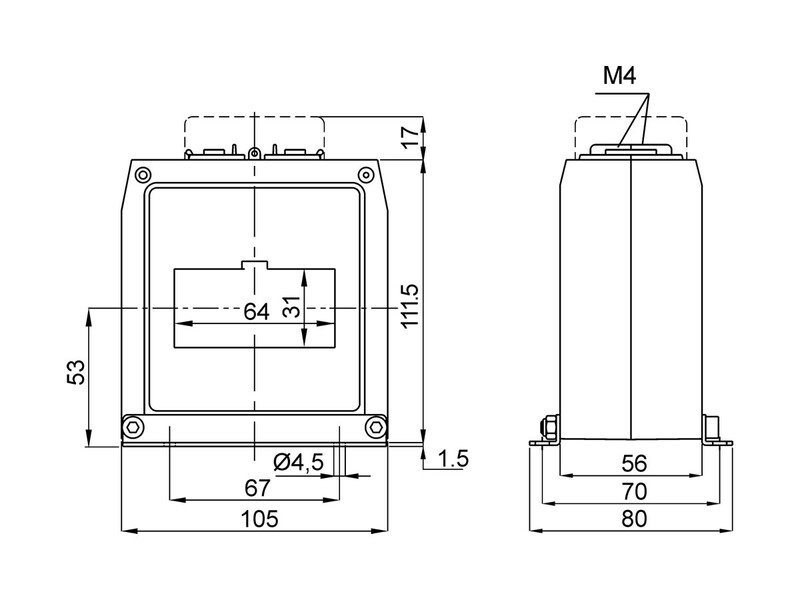

Opening diameter31 mm
Snap mountingyes
With copper railno
Secondary connectionScrew connection
Number of primary inputs1

Product codes

SAPAMZ266
STK6785162
PLC6785162
GTIN/EAN6410067851622
Manufacturer part numberTAT063400X05
Vendor material number6785162

Basic information

Package measurements (L x W x H)85 x 110 x 130 mm
Package volume1.216 l
Package weight0.75 kg
Base uniteach
Package units1
Package contents
UNSPSC39121003
BrandFRER
VendorUTU OY

Environment and safety

Manufacturer

NameUTU Oy
Postal addressAhjontie 1, 28400 Ulvila
