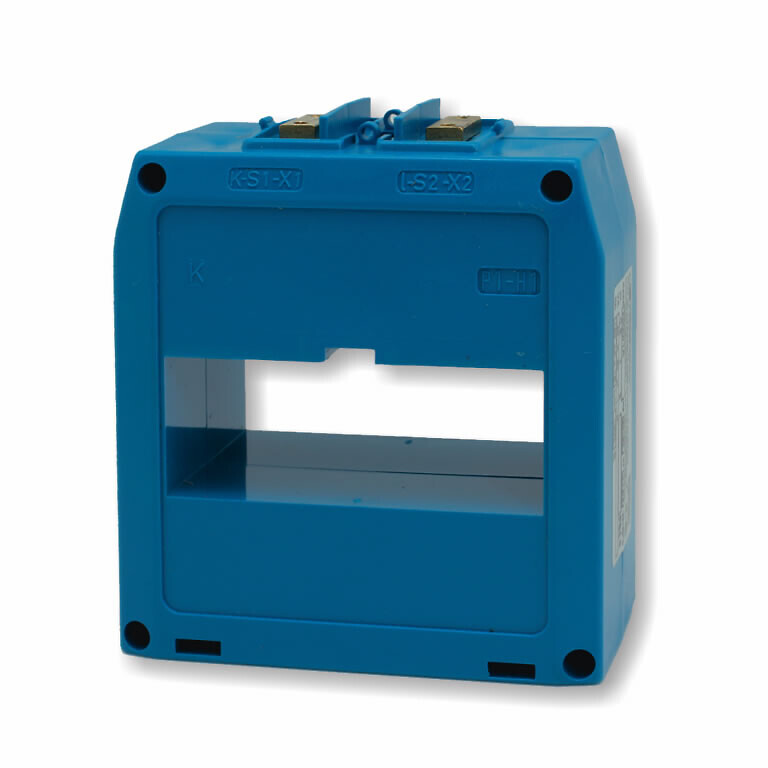

CURRENT TRANSFORMER TAT081 31x81 500/1 5VA cl0.5
Product code
6785188
Using current transformers, you can seamlessly integrate meters and monitoring relays designed for current, power, and energy measurements and monitoring into high-current electrical installations. In addition to basic current transformers suitable for back-of-panel measurements, our extensive product range also offers class 0.2s current transformers suitable for electrical equipment measurements. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Current transformer (EC002048)
ModelSingle-phase current converter
Rated primary current500 A
Rated secondary current1 A
Rated secondary apparent power5 VA
Accuracy class0.5
With contact protectionno

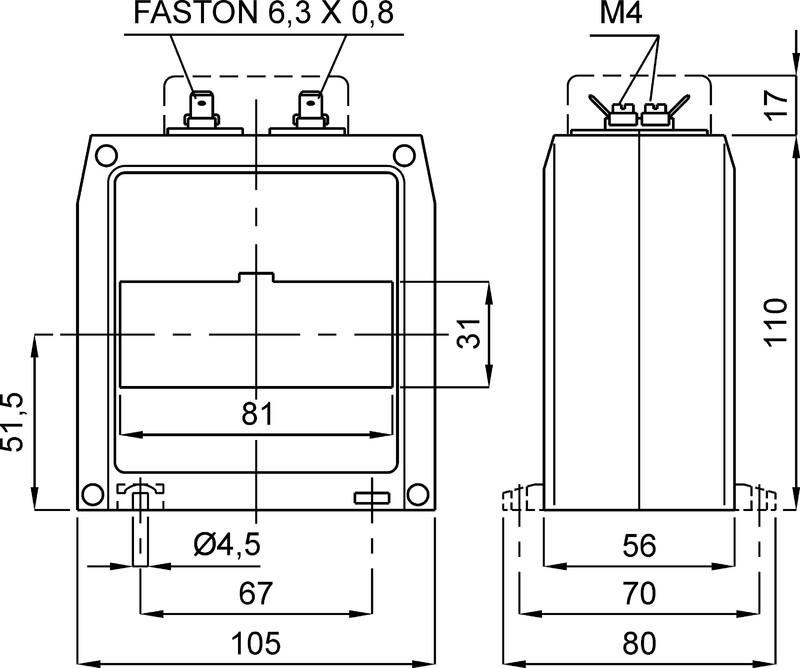

Opening diameter31 mm
Snap mountingyes
With copper railno
Secondary connectionScrew connection
Number of primary inputs1
Product codes
SAPAMZ292
STK6785188
PLC6785188
GTIN/EAN6410067851882
Manufacturer part numberTAT081500X01
Vendor material number6785188
Basic information
Package measurements (L x W x H)85 x 110 x 130 mm
Package volume1.216 l
Package weight0.75 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121003
BrandFRER
VendorUTU OY
