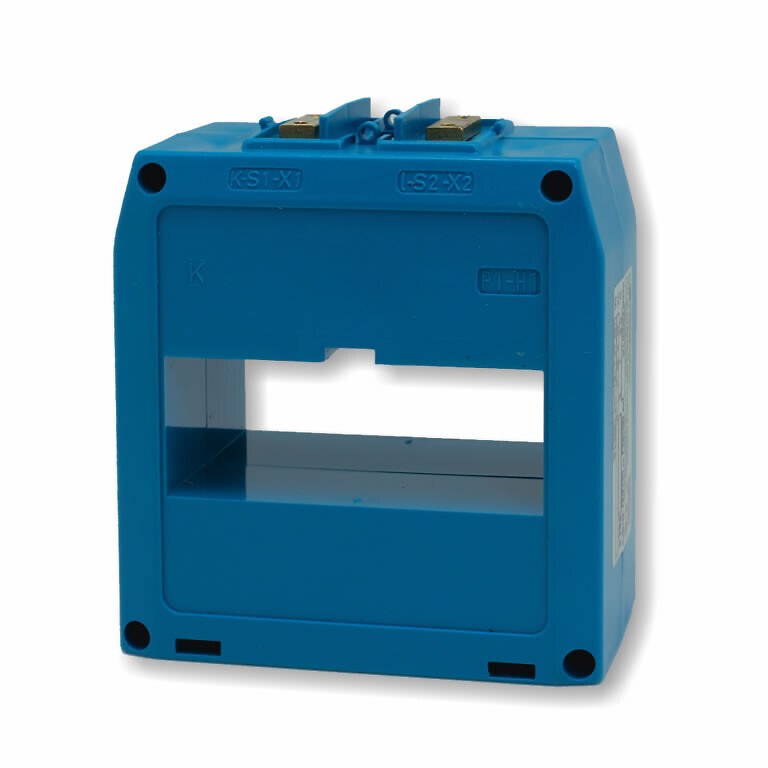

CURRENT TRANSFORMER TAT081 31x81 800/1 10VA cl0.5

Product code
6785190
Using current transformers, you can seamlessly integrate meters and monitoring relays designed for current, power, and energy measurements and monitoring into high-current electrical installations. In addition to basic current transformers suitable for back-of-panel measurements, our extensive product range also offers class 0.2s current transformers suitable for electrical equipment measurements. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Current transformer (EC002048)
ModelSingle-phase current converter
Rated primary current800 A
Rated secondary current1 A
Rated secondary apparent power10 VA
Accuracy class0.5
With contact protectionno
Opening diameter31 mm
Snap mountingyes
With copper railno
Secondary connectionScrew connection
Number of primary inputs1

Product codes

SAPAMZ294
STK6785190
PLC6785190
GTIN/EAN6410067851905
Manufacturer part numberTAT081800X01
Vendor material number6785190

Basic information

Package measurements (L x W x H)85 x 110 x 130 mm
Package volume1.216 l
Package weight0.75 kg
Base uniteach
Package units1
Package contents
UNSPSC39121003
BrandFRER
VendorUTU OY

Environment and safety

Manufacturer

NameUTU Oy
Postal addressAhjontie 1, 28400 Ulvila
