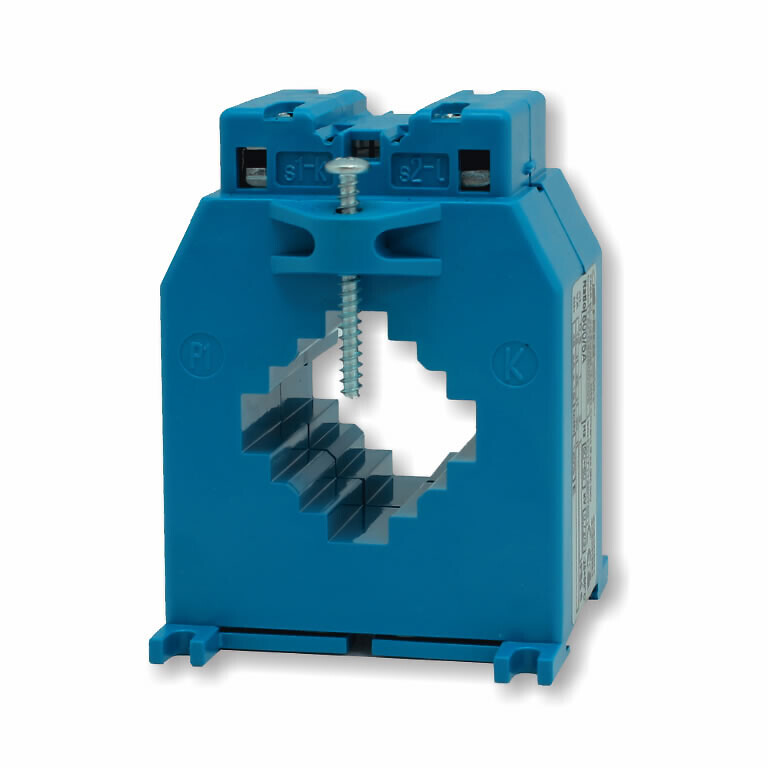

CURRENT TRANSFORMER TAC040 Ø32 800/1 18VA cl0.5
Product code
6785050
Using current transformers, you can seamlessly integrate meters and monitoring relays designed for current, power, and energy measurements and monitoring into high-current electrical installations. In addition to basic current transformers suitable for back-of-panel measurements, our extensive product range also offers class 0.2s current transformers suitable for electrical equipment measurements. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Current transformer (EC002048)
ModelSingle-phase current converter
Rated primary current800 A
Rated secondary current1 A
Rated secondary apparent power18 VA
Accuracy class0.5
With contact protectionno
Opening diameter32 mm
Snap mountingyes
With copper railno
Secondary connectionScrew connection
Number of primary inputs1
Product codes
SAPAMZ184
STK6785050
PLC6785050
GTIN/EAN6410067850502
Manufacturer part numberTAC040800X01
Vendor material number6785050
Basic information
Package measurements (L x W x H)70 x 75 x 100 mm
Package volume0.525 l
Package weight0.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121003
BrandFRER
VendorUTU OY
