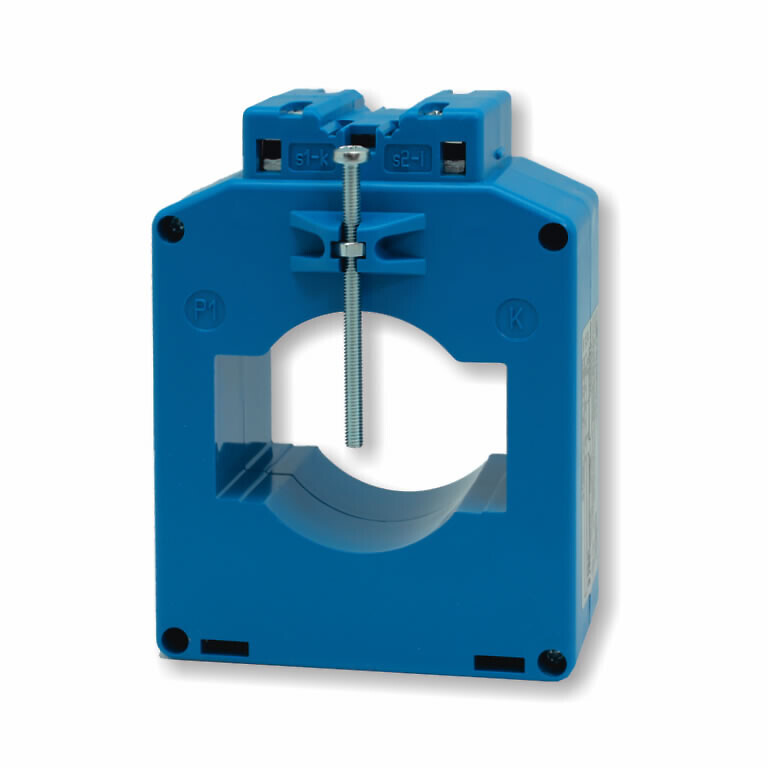

CURRENT TRANSFORMER TAT061 Ø51 600/5 6VA cl0.5
Product code
6785098
Using current transformers, you can seamlessly integrate meters and monitoring relays designed for current, power, and energy measurements and monitoring into high-current electrical installations. In addition to basic current transformers suitable for back-of-panel measurements, our extensive product range also offers class 0.2s current transformers suitable for electrical equipment measurements. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Current transformer (EC002048)
ModelSingle-phase current converter
Rated primary current600 A
Rated secondary current5 A
Rated secondary apparent power6 VA
Accuracy class0.5
With contact protectionno
Opening diameter51 mm
Snap mountingyes
With copper railno
Secondary connectionScrew connection
Number of primary inputs1
Product codes
SAPAMZ232
STK6785098
PLC6785098
GTIN/EAN6410067850984
Manufacturer part numberTAT061600X05
Vendor material number6785098
Basic information
Package measurements (L x W x H)70 x 90 x 120 mm
Package volume0.756 l
Package weight0.7 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121003
BrandFRER
VendorUTU OY
