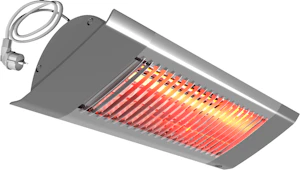

RADIANT HEATER IHW10, 1000W, 230V, IPX4
Product code
8101180
IH halogen infrared heaters
Infrared heaters are primarily used for heating outdoor areas such as terraces, balconies, and outdoor restaurants, etc. The heaters do not require special protection as their construction is weather-resistant.
The IH heater series is a "design product" for environments where requirements are set not only for technical features but also for the appearance of the devices.
Infrared heaters are primarily used for heating outdoor areas such as terraces, balconies, and outdoor restaurants, etc. The heaters do not require special protection as their construction is weather-resistant.
The IH heater series is a "design product" for environments where requirements are set not only for technical features but also for the appearance of the devices.
- IHW with wide heating beam for mounting heights of 1.8-2.5 m
- IHF with narrow heating beam for mounting heights of 2.3-3.5 m
- Mounting on wall (IHF) or e.g. sunshade (IHW)
- Comprehensive accessory range
- Powers of 1000 and 1500 W
- Protection class: IPx4
Product details
Technical specifications
Product class (ETIM)Radiator (electric) (EC000593)
Number of ribs1
ColourOther
Width169 mm
Height500 mm
Depth77 mm
With time switch clockno
Product codes
SAPCEH194
STK8101180
PLC8101180
GTIN/EAN6410081011804
Manufacturer part numberIHW10
Vendor material number8101180
