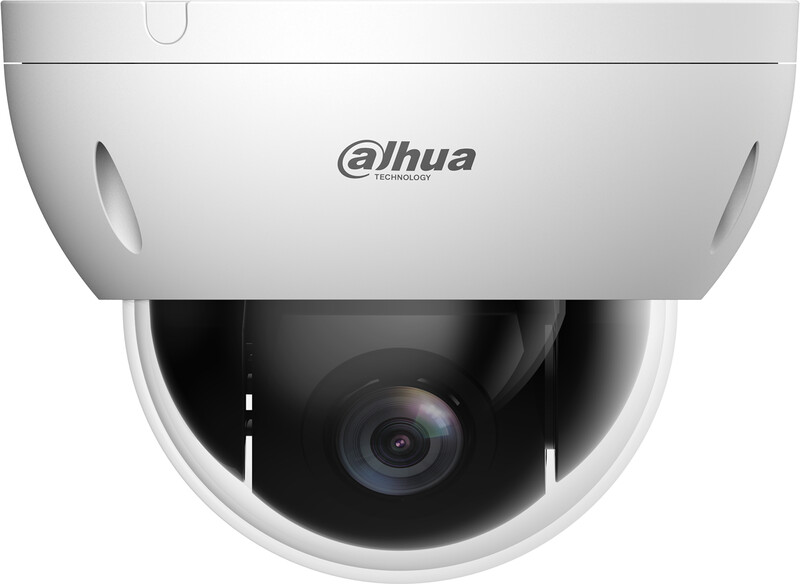

CAMERA-IP DAHUA 2MPX PTZ 2,8-12MM
Product code
7140225
Wide Dynamic Range (WDR) ensures clear details in high-contrast situations, and thanks to Starlight technology, the camera produces high-quality images even in extremely low light. The camera is protected against vandalism according to IK10 rating, and the IP66 rating makes it suitable for outdoor use even under demanding conditions.
The camera can rotate 355° horizontally, almost a full 360°, and 90° vertically.
Features- CMOS sensor, resolution 1920 x 1080
- Motorized 2.8 - 12 mm lens, F1.6-F3.0
- MicroSD card slot, up to 512 GB
- Power supply: 12 V DC/1 A (±10 %), PoE
- Power consumption (normal/max.): 2.3 W/6.1 W
- Operating temperature range: -30° to +60°C
- Protection rating: IP66, IK10
- Dimensions: Ø122 x 89 mm
- Weight: 0.5 kg
Product details
Technical specifications
Product class (ETIM)Camera for surveillance system (EC001511)
ModelPan-Tilt-Zoom
Number of pixels (Megapixel)2
With lensyes
Focal size2.8 - 12 mm
Type of interfaceOther
ProtocolTCP/IP
Power over Ethernet (PoE)802.3 af (PoE)
Picture systemPAL
Property picture systemColour
With infrared lightingno
With video motion detectoryes
Memory capacity512 GB
Number of digital inputs0
Number of digital outputs0
Number of audio inputs0
Product codes
SAPDCB328
STK7140225
PLC7140225
GTIN/EAN6923172541253
Manufacturer part numberSD22204DB-GNY
Vendor material number7140225
Basic information
Package measurements (L x W x H)159 x 159 x 140 mm
Package volume3.539 l
Package weight0.7 kg
Base uniteach
Package units1
Package contents–
UNSPSC46171610
BrandFSM
VendorFSM OY FONEL SECURITY
