FLOOR TRUNKING SIS 30.5, 61 / 91.4CM,ALUMINUM
Product code
1409606
The SW-T123-ALM installation package includes aluminum FSR Smart-Way floor channel segments in lengths of 30.5 cm, 61.0 cm, and 91.4 cm. Additionally, the end piece of the shortest floor channel is in two parts, allowing installation of FSR Smart-Way product line cable risers either to power outlets or devices.

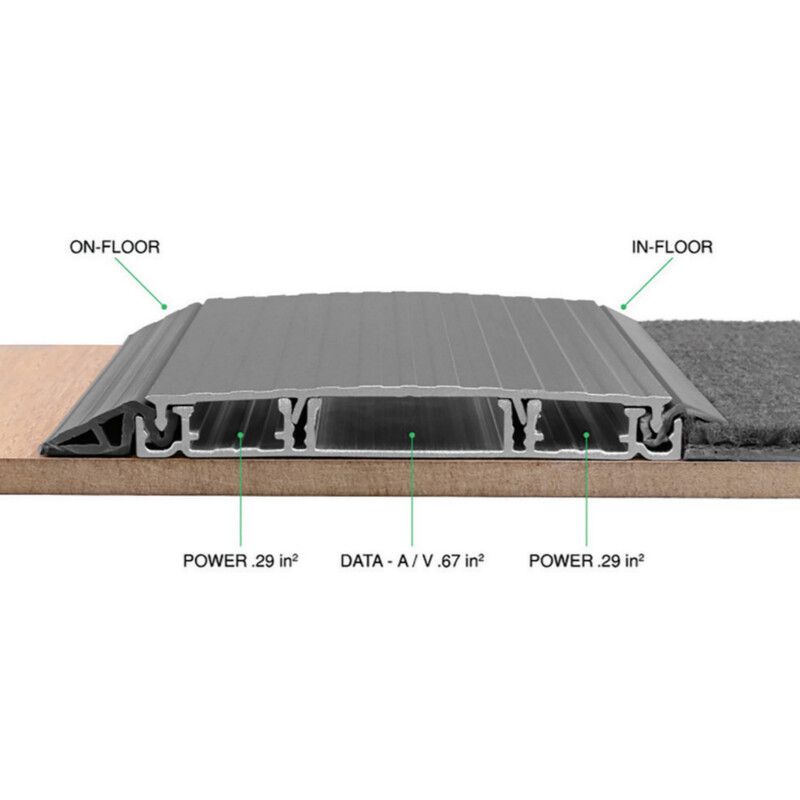

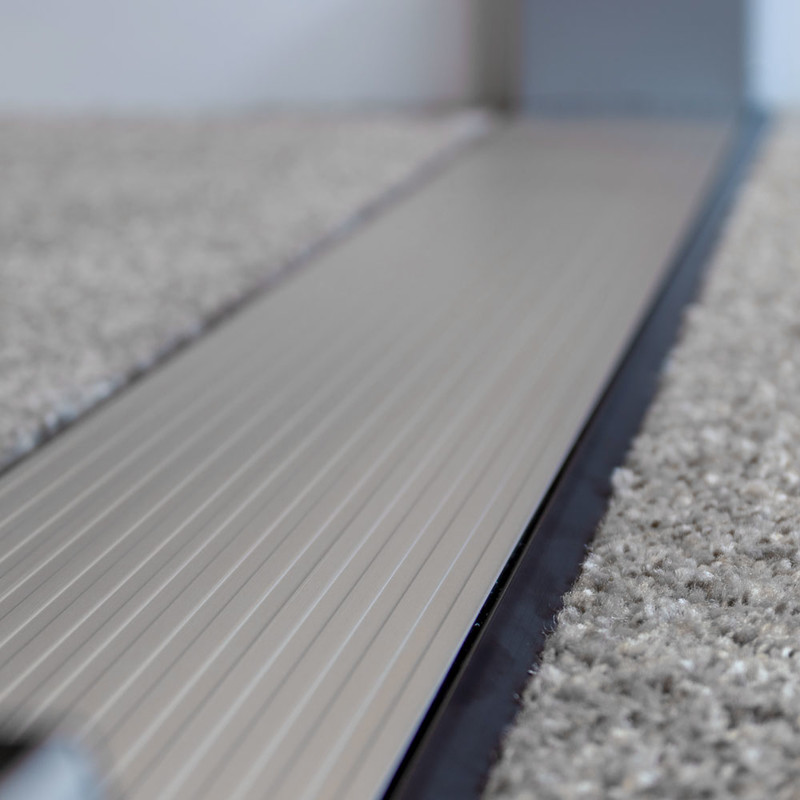

The height of the SW-T123-ALM is only approximately 1.5 cm. This feature also ensures that the product is easy and convenient to install either directly on top of any floor material or recessed, for example, into carpet, laminate, or parquet using the edges. The SW-T123-ALM housing contains three separate cable channels, enabling convenient separation of electrical and AV cabling while preventing potential interference.
Smart-Way products are ideally suited for offices, meeting rooms, open-plan workspaces, and even classrooms—in short, any space where cables need to be kept modern and safely out of sight.
FSR Smart-Way is a floor-mounted or in-floor channel system for electrical, data network, and AV cables. With the FSR Smart-Way channel system, cables are routed across the floor exactly where needed. With the Smart-Way channel, cables are easily and stylishly hidden when spaces are renovated, refurbished, or modernized. This product description is an automated translation of the original Finnish description.
The height of the SW-T123-ALM is only approximately 1.5 cm. This feature also ensures that the product is easy and convenient to install either directly on top of any floor material or recessed, for example, into carpet, laminate, or parquet using the edges. The SW-T123-ALM housing contains three separate cable channels, enabling convenient separation of electrical and AV cabling while preventing potential interference.
Smart-Way products are ideally suited for offices, meeting rooms, open-plan workspaces, and even classrooms—in short, any space where cables need to be kept modern and safely out of sight.
FSR Smart-Way is a floor-mounted or in-floor channel system for electrical, data network, and AV cables. With the FSR Smart-Way channel system, cables are routed across the floor exactly where needed. With the Smart-Way channel, cables are easily and stylishly hidden when spaces are renovated, refurbished, or modernized. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Subfloor installation duct flush floor open (EC001901)
Width158 mm
Length1829 mm
Min. height finishing layer0 mm
Cover attachment clampingno
Mounting openingRectangular
Cover mounting openingyes
With partition panelyes
Max. number of compartments3
Partition fixingOther
Floor maintenanceDry
Bottom ductyes
Material side wall/bottom ductMetal fabric
Surface side wall/bottom ductOther
Material coverNone
Material thickness cover2 mm
Product codes
SAPDBE071
STK1409606
PLC1409606
GTIN/EAN6410014096069
Manufacturer part numberSW-T123-ALM
Vendor material numberSW-T123-ALM
Basic information
Package measurements (L x W x H)965 x 203 x 102 mm
Package volume19.981 l
Package weight5.05 kg
Base uniteach
Package units1
Package contents–
UNSPSC30101806
BrandFSR
VendorFINNSAT OY
