CONTROL COMPONENT TRIAC/PUSH DIM RF/, 230V

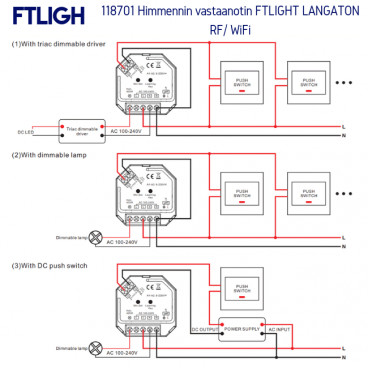

The receiver can be installed in place of the current switch or before the lighting group, allowing the lights to be wirelessly controlled via a remote control or multiple wall-mounted wireless FTLIGHT Perfect push buttons. Additionally, Triac-dimmable lights can be converted to push-button dimmable by connecting them to a spring-return push button receiver (wired connection). Features

• receiver for wireless control/dimming of LED lights
• compatible with FTLIGHT PERFECT controllers
• operating range between receiver and controller is 20 m, works well through obstacles such as walls
• multiple receivers can be connected to one controller or vice versa

Wireless FTLIGHT Perfect controllers and receivers for controlling LED strips, transformers, or lights

• LED strip control voltage (Input): 12-36 V
• 230 V Triac and On/Off receivers for transformer control
• protection class IP20
• frame and housing: glass/plastic
• push buttons also compatible with EXXACT frames, always supplied with glass frame

To wirelessly control a connected LED, you always need both a receiver and a transmitter. One (1) transmitter can control up to eight (8) receivers.

Wireless controllers (transmitters)

• 4018819 (118505) single-part white push button
• 4018820 (118506) two-part white push button
• 4018861 (118515) two-part black push button
• 4018821 (118507) rotary dimmer
• 4018822 (118102) dimmer/button with magnet
• 4018823 (118104) 4-channel remote control (dimming, Single Color)
• 4018824 (118119) 4-channel remote control (CCT)
• 4018825 (118219) 4-channel remote control (RGBW)

230 V Triac receivers

• 4018827 (118701) Triac to push dim. RF receiver (Input: 23V)
• 4018864 (118703) On/off RF receiver (Input: 23V)

Receivers 4018816 (118101) 1-channel (12-36V) 8A 4018817 (118103) 4-channel (12-36V) 4A (CCT & RGBW) 4018818 (118203) 4-channel (12-36V) 8A (CCT & RGBW) This product description is an automated translation of the original Finnish description.
